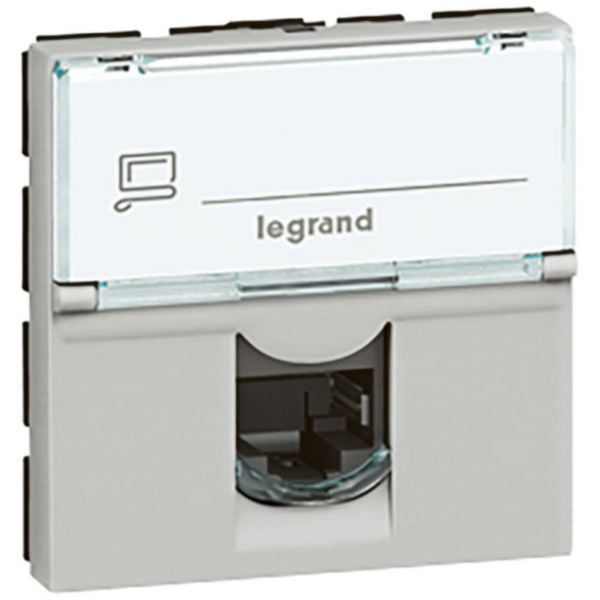

Shop Legrand Mosaic RJ45 Socket Category 5e UTP 2 Modules Aluminium | 079454 In Iraq Best Prices
Professional RJ45 Category 5e UTP 2-module socket with toolless connection, supporting 1 GigaBit/s data transfer and Power over Ethernet applications. Features transparent dust cover, aluminium finish, and modular design for flexible installation in residential and commercial settings.
The Mosaic™ RJ45 Socket Category 5e UTP 2 Modules in Aluminium is a professional-grade networking connector designed for high-speed data transmission and Power over Ethernet (PoE) applications. This modular device supports data rates up to 1 GigaBit/s, enabling rapid file transfers and seamless streaming experiences. The socket features a toolless connection system with integrated crimping technology, making installation quick and efficient without requiring specialized tools. Equipped with a transparent protective dust cover, this connector maintains optimal performance and longevity in both residential and commercial installations.
The Mosaic RJ45 socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C. It features an innovative slot system that allows for perfect multigang settings with support frames that can be easily joined, eliminating the need for additional wall groove cutting or complex cabling. The connector is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing exceptional versatility for various networking scenarios. With its IP20 protection rating and IK03 impact resistance, this device is suitable for installation in flush-mounted boxes, duct systems, and floor boxes.
The aluminium finish provides both aesthetic appeal and durability, while the modular design allows for flexible installation arrangements. The device operates reliably across a wide temperature range from -40°C to 70°C, ensuring consistent performance in diverse environmental conditions. The integrated label space enables proper identification and organization of network connections. This RJ45 socket is ideal for applications requiring low-latency connections, making it perfect for online gaming, video streaming, and professional data transfer requirements in modern smart homes and commercial buildings.
Key Features
- RJ45 Cat 5e with data rate up to 1 GigaBit/s for high-speed data transmission and downloads
- Supports Power over Ethernet (PoE) applications for integrated power and data delivery
- Toolless connector with fast integrated crimping technology for quick installation
- Transparent protective dust cover protecting the connector from contamination
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile networking applications
- Modular slot system for perfect multigang settings and easy installation arrangement
- Aluminium finish providing aesthetic appeal and enhanced durability
- IP20 protection rating and IK03 impact resistance for reliable performance
- Flush-mounted, duct, and floor box installation options for flexible placement
- Operates reliably across temperature range -40°C to 70°C
- Compliant with ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C standards
- Integrated label space for proper connection identification and organization
- Insulation displacement connector (IDC) technology for secure connections
- Halogen-free materials for environmental safety and compliance
- Suitable for commercial, residential, and high-bandwidth applications
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 5e (Cat 5e) |
| Data Rate | Up to 1 GigaBit/s |
| Connector Type | RJ45 8(8) with Insulation Displacement Connector (IDC) |
| Number of Modules | 2 modules |
| Colour | Aluminium |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Installation Type | Flush-mounted, Duct, Floor box |
| Fastening Method | Engage (Snap) |
| Connection Type | Toolless with integrated crimping |
| Dust Cover | Yes - Transparent protective cover |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Colour Coding | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Mounting Method | Flush-mounted |
| Outlet Direction | Straight |
| Compatibility | Compatible with RJ11, RJ12, and RJ45 plugs |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Reference Number | 079454 |
| EAN Code | 3245060794545 |
| Power over Ethernet Support | Yes - High capacity PoE applications supported |
| Indoor Use Only | Yes |
Order Legrand Mosaic RJ45 Socket Category 5e UTP 2 Modules Aluminium | 079454 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
