Shop Legrand Mosaic RJ45 Socket Category 5e UTP 1 Module White | 76551 In Iraq Best Prices
Professional RJ45 Category 5e UTP network socket with 1 Gbps data transmission, toolless installation, PoE support, and integrated dust cover protection for residential and commercial use.

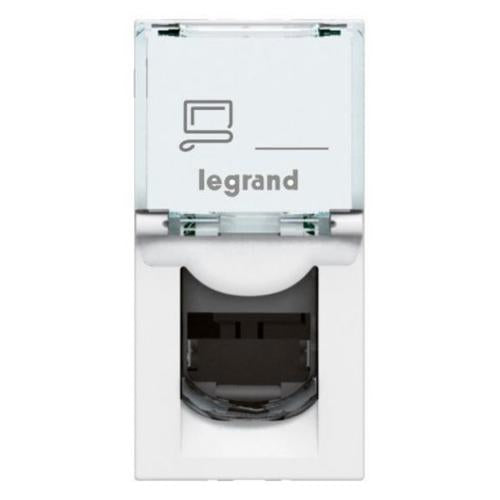

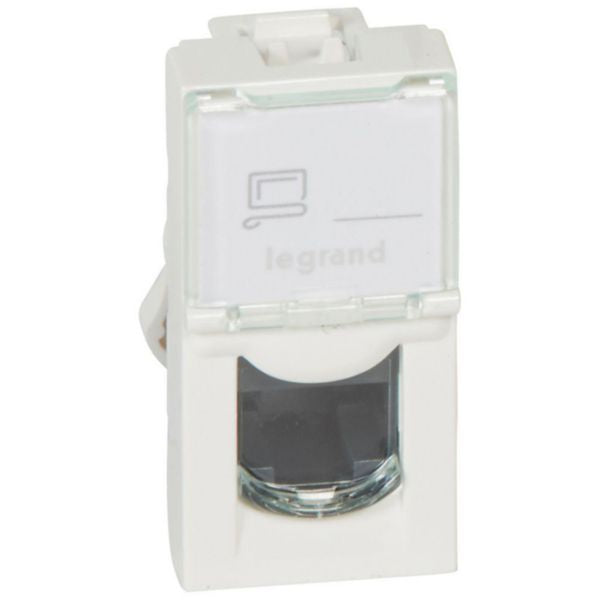

The Mosaic RJ45 Socket Category 5e UTP 1 Module White (REF. 076551) is a professional-grade network connectivity solution designed for residential and commercial installations. This single-module RJ45 socket features Category 5e UTP technology, delivering data transmission rates up to 1 Gigabit/s, making it ideal for high-speed internet connectivity, streaming, online gaming, and data-intensive applications. The socket is equipped with a transparent protective dust cover to maintain connector integrity and cleanliness.
This modular device is fully compatible with the Mosaic range and supports both IP and analog phone connections. It features toolless quick-connection technology with integrated crimping, allowing for fast and effortless installation without requiring specialized tools. The connector is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing versatile connectivity options. The socket supports high-capacity Power over Ethernet (PoE) applications, enabling simultaneous transmission of electric power and data across twisted pair Ethernet cabling.
Designed for flush-mounted, duct, and floor box installations, this product conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C. The white finish (RAL 9003) seamlessly integrates with modern interior designs. With its modular slot system, multiple units can be easily combined for multigang configurations without requiring additional wall groove cutting or complex cabling modifications.
Key Features
- Category 5e UTP technology supporting up to 1 Gigabit/s data transmission rate
- Toolless quick-connection with integrated crimping for fast effortless installation
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Transparent protective dust cover protecting connector integrity and cleanliness
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Modular slot system for easy multigang configurations without additional wall modifications
- Suitable for flush-mounted, duct, and floor box installations
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- White finish (RAL 9003) for modern interior design integration
- Ideal for IP and analog phone connections, streaming, and online gaming
Technical Specifications
| Specification |
Value |
| Product Reference | 076551 |
| EAN Code | 3245060765514 |
| Category | 5E |
| Connector Type | RJ45 8(8) |
| Data Rate | Up to 1 Gigabit/s |
| Number of Modules | 1 |
| Color | White |
| RAL Number | 9003 |
| Connection Type | Insulation displacement connector |
| Shielded Buses | No |
| Dust Cover | Yes, transparent protective cover included |
| Installation Types | Flush-mounted, Duct, Floor box/subfloor mounted |
| Surface Mounting | No |
| Type of Fastening | Engage (snap) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Outlet Direction | Straight |
| Terminal Marking | Yes |
| Colour Coding | Yes |
| Label Space | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Mounting Method | Flush-mounted |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes, supports high-capacity PoE applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Separate Earthing Connection | No |
| Separate Strain Relief | No |
Order Legrand Mosaic RJ45 Socket Category 5e UTP 1 Module White | 76551 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
