Shop Legrand Mosaic RJ45 Socket Category 5e UTP 1 Module Aluminium | 079451 In Iraq Best Prices
Professional RJ45 category 5e UTP socket with 1 Gigabit/s data transmission, toolless connection system, transparent dust cover, and PoE support for residential and commercial installations.

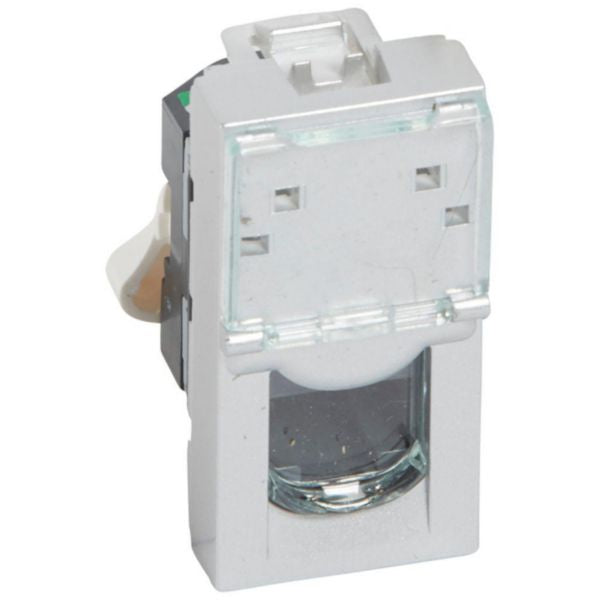

The Mosaic™ RJ45 socket category 5e UTP 1 module aluminium is a professional-grade networking component designed for residential and commercial installations. This high-performance connector supports data transmission rates up to 1 Gigabit per second, enabling rapid file downloads and seamless streaming capabilities. The socket features a transparent protective dust cover that safeguards the connector from environmental contaminants and physical damage. Engineered with a toolless connection system featuring integrated crimping technology, this RJ45 socket delivers quick and reliable installation without requiring specialized tools. The aluminium finish provides both aesthetic appeal and durability, making it suitable for modern architectural designs.
This Mosaic™ socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C specifications. It is equipped with rocker plates and support frames for flexible installation options. The connector is compatible with standard RJ11, RJ12, and RJ45 plugs, offering versatile connectivity solutions. The modular slot system allows perfect multigang configurations without requiring additional wall groove cutting or complex cabling installations. Supporting high-capacity Power over Ethernet (PoE) applications, this socket can transmit both data and electric power simultaneously over twisted pair Ethernet cabling.
The product is ideal for IP and analog phone installations, as well as applications requiring low latency such as online gaming, video streaming, and professional downloads. With an operating temperature range of -40°C to 70°C and halogen-free construction, this RJ45 socket meets stringent environmental and safety standards. The device features color coding for terminal marking, a built-in depth of 25.2 mm, and an impact strength rating of IK04, ensuring reliability in various installation environments.
Key Features
- RJ45 Cat 5e connector supporting data rates up to 1 Gigabit per second for high-speed networking
- Toolless connection system with integrated crimping technology for quick and reliable installation
- Transparent protective dust cover protecting the connector from environmental contaminants
- High-capacity Power over Ethernet (PoE) support for simultaneous data and power transmission
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity solutions
- Modular slot system allowing perfect multigang configurations without additional wall modifications
- Aluminium finish providing aesthetic appeal and durability for modern installations
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Color-coded terminal marking for easy identification and installation
- Halogen-free construction meeting environmental and safety requirements
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 5e (Cat 5e) |
| Data Rate | Up to 1 Gigabit per second |
| Connector Type | RJ45 8(8) Insulation Displacement Connector |
| Number of Modules | 1 module |
| Color | Aluminium |
| Installation Type | Flush-mounted, Duct, Floor box/subfloor mounted |
| Fastening Method | Engage (snap) |
| Device Dimensions | Width: 22.5 mm, Height: 45 mm, Depth: 33.7 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Connection Type | Insulation displacement connector with toolless connection |
| Dust Cover | Yes - Transparent protective cover |
| Color Coding | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes - High capacity Power over Ethernet |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Reference Number | 079451 |
| EAN Code | 3245060794514 |
Order Legrand Mosaic RJ45 Socket Category 5e UTP 1 Module Aluminium | 079451 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
