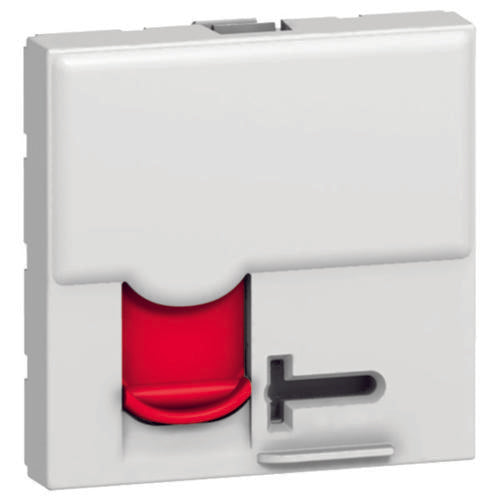

Shop Legrand Mosaic RJ45 Socket Category 6 FTP 2 Modules White Red Shutter | 76595 In Iraq Best Prices
Professional RJ45 Category 6 FTP socket with 2 modules, white finish with red shutter, featuring controlled access security, toolless installation, and support for high-speed 1 GigaBit/s data transmission and Power over Ethernet applications.
The Mosaic™ RJ45 Socket Controlled Access Category 6 FTP is a professional-grade networking component designed for modern residential and commercial installations. This 2-module socket supports high-speed data transmission up to 1 GigaBit/s, making it ideal for demanding applications such as streaming, online gaming, and large file downloads. The socket features a transparent protective dust cover that safeguards the connector when not in use, ensuring long-term reliability and durability.
Equipped with advanced security features, this RJ45 socket includes a key lock system that prevents unauthorized access and protects the connector from accidental damage. The toolless connection technology with integrated crimping allows for quick and easy installation without requiring specialized tools. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this socket offers exceptional versatility for various networking scenarios. The white color with red shutter provides clear visual identification and aesthetic appeal in any installation environment.
This controlled access socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C. It supports Power over Ethernet (PoE) applications, enabling the transmission of electrical power alongside data through twisted pair Ethernet cabling. The modular design allows for perfect multigang settings without requiring additional wall groove cutting, making installation straightforward and cost-effective for both professional installers and end-users.
Key Features
- Category 6 FTP support with data transmission up to 1 GigaBit/s for fast downloads and streaming
- Key lock system prevents unauthorized access and protects connector from accidental damage
- Transparent protective dust cover safeguards the connector when not in use
- Toolless connection technology with integrated crimping for quick and easy installation
- Power over Ethernet (PoE) compatible for simultaneous power and data transmission
- Compatible with RJ11, RJ12, and RJ45 plugs for maximum versatility
- Modular design with slot system for perfect multigang configuration
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- IP20 degree of protection suitable for indoor residential and commercial use
- White color with red shutter for clear visual identification
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket with Controlled Access |
| Category | Category 6 (Cat 6) FTP |
| Data Transmission Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Connector Type | RJ45 8(8) |
| Color | White with red shutter |
| RAL Number | 9003 |
| Connection Type | Insulation displacement connector |
| Installation Method | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40 to +70 °C |
| Storage Temperature Range | -40 to +70 °C |
| Maximum Input Cable Diameter | 9 mm |
| Fastening Type | Engage (snap) |
| With Dust Cover | Yes |
| With Label Space | Yes |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet (PoE) Support | Yes |
| Reference Number | 076595 |
| EAN Code | 3245060765958 |
Order Legrand Mosaic RJ45 Socket Category 6 FTP 2 Modules White Red Shutter | 76595 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
