Shop Legrand Mosaic RJ45 Socket Category 6A UTP 1 Module White Orange Shutter | 76527 In Iraq Best Prices
Professional RJ45 Cat 6A UTP socket with 10 Gbps data transmission, toolless installation, PoE support, and protective dust cover for residential and commercial networks.

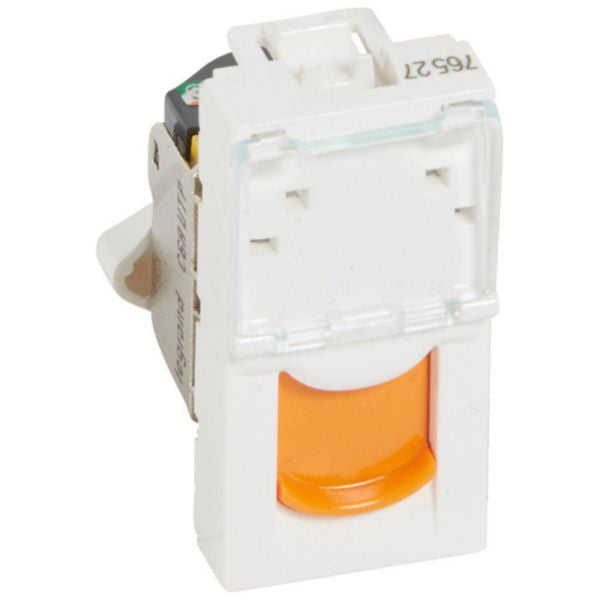

The Mosaic RJ45 Cat 6A UTP 1 module socket in white with orange shutter is a professional-grade network connector designed for high-speed data transmission. This flush-mounted device supports data rates up to 10 GigaBits/s, enabling rapid file downloads and seamless streaming experiences. The socket features a transparent protective dust cover that safeguards the connector from environmental contaminants, ensuring long-term reliability and performance. Manufactured by Legrand under the Mosaic range, this product conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, making it suitable for both commercial and residential installations.
Equipped with advanced toolless connection technology, this RJ45 socket simplifies installation through integrated crimping capabilities, eliminating the need for specialized tools. The device supports high-capacity Power over Ethernet (PoE) applications, allowing electric power to be transmitted alongside data on twisted pair Ethernet cabling. Its modular design with a slot system enables perfect multigang settings and easy installation in standard single flush mounting boxes without requiring additional wall modifications or complex cabling work. The connector is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing versatility for various networking scenarios.
With an operating temperature range of -40 to 70°C and halogen-free construction, this socket meets modern environmental and safety standards. The device features IP20 degree of protection and IK04 impact strength rating, providing adequate protection for indoor use. Its 22.5mm width and 45mm height make it compact and space-efficient, while the 25.2mm built-in depth ensures compatibility with standard installation infrastructure. Ideal for IP and analog phones, downloads, streaming, and online gaming applications requiring low latency and high reliability.
Key Features
- 10 GigaBit/s data transmission rate enabling rapid file downloads and streaming
- Toolless connection with integrated crimping for quick and easy installation
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Transparent protective dust cover for connector protection and longevity
- Modular slot system for perfect multigang settings without additional wall modifications
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity
- Conforms to ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Halogen-free construction meeting modern environmental standards
- IP20 protection degree and IK04 impact strength for reliable indoor performance
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category | Category 6A (IEC) |
| Data Rate | Up to 10 GigaBit/s |
| Connector Type | RJ45 8(8) |
| Connection Type | Insulation Displacement Connector (IDC) |
| Number of Modules | 1 Module |
| Color | White with Orange Shutter |
| RAL Number | 9003 |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40 to 70 °C |
| Storage Temperature Range | -40 to 70 °C |
| Type of Fastening | Engage (Snap) |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| With Dust Cover | Yes |
| With Label Space | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Outlet Direction | Straight |
| Mounting Method | Flush-mounted |
| Compatible Plug Types | RJ11, RJ12, RJ45 |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes - High capacity Power over Ethernet |
| Reference Number | 076527 |
| EAN Code | 3245060765279 |
