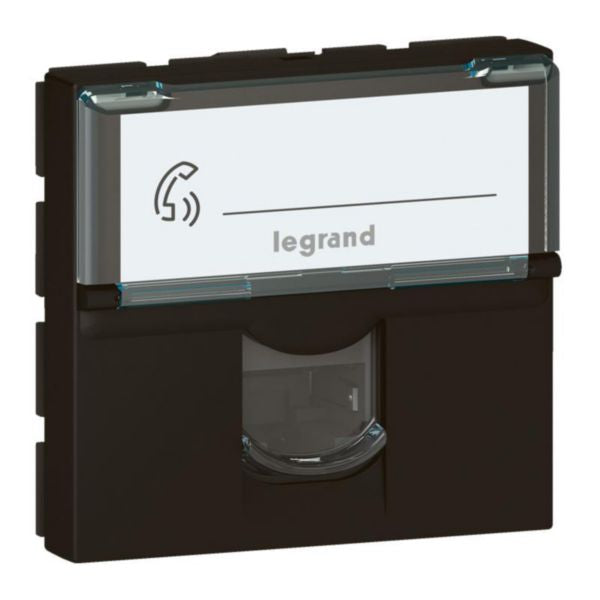

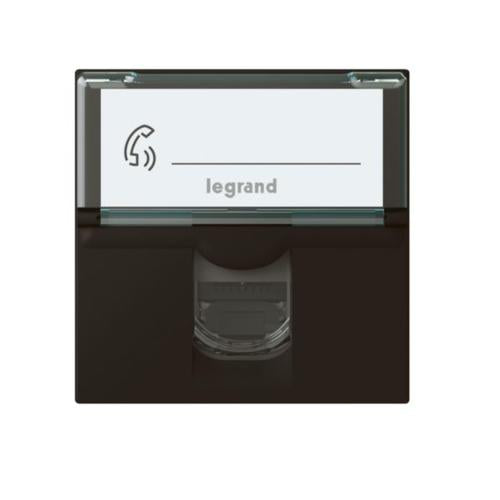

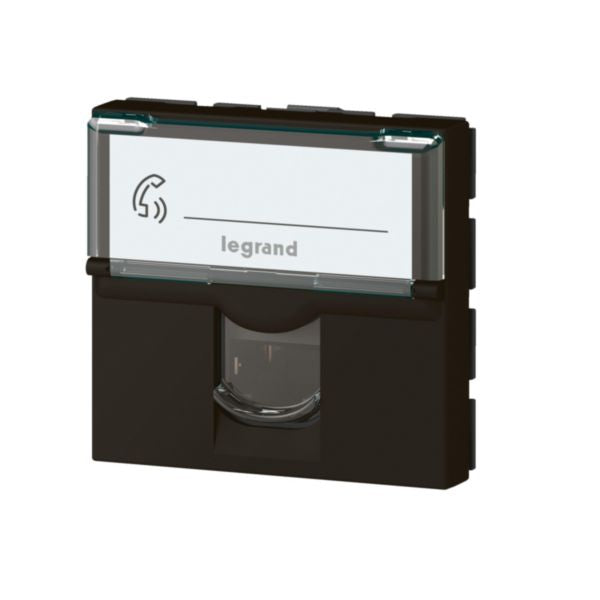

Shop Legrand Mosaic RJ45 Socket Category 6A FTP 2 Modules Matt Black | 079176L In Iraq Best Prices
Professional RJ45 Cat 6A FTP socket with 2 modules, mat black finish, supporting 10 GigaBit/s data rates with toolless quick connector and transparent dust cover protection.
The Legrand Mosaic RJ45 Socket Cat 6A FTP 2 modules mat black (REF. 079176L) is a professional-grade network connectivity solution designed for modern residential and commercial installations. This advanced socket supports data rates up to 10 GigaBit/s, enabling high-speed data transmission with exceptional reliability. The product features a fully shielded FTP (Foiled Twisted Pair) design that provides superior electromagnetic interference protection, making it ideal for demanding network applications including streaming, online gaming, and high-capacity PoE (Power over Ethernet) applications.
Designed with user convenience in mind, this socket incorporates a toolless quick connector system that eliminates the need for specialized installation tools, making it suitable for both professional installers and experienced DIY enthusiasts. The shallow depth mechanism facilitates easy mounting into standard flush-mounted boxes without requiring additional wall modifications or complex cabling arrangements. The integrated transparent protective dust cover keeps the connector clean and protected when not in use, extending the product's operational lifespan.
The mat black finishing provides a contemporary aesthetic that seamlessly integrates with modern interior designs and architectural specifications. With its modular 2-module configuration, this socket offers flexibility in installation arrangements and can be perfectly joined with other support frames for multi-gang applications. The product is halogen-free, compliant with environmental standards, and features comprehensive color coding for intuitive terminal identification.
Key Features
- Cat 6A FTP shielded design supporting data rates up to 10 GigaBit/s for high-speed connectivity
- Toolless quick connector with integrated crimping for fast and intuitive installation without specialized tools
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Transparent protective dust cover keeping connectors clean and protected from environmental contamination
- Modular 2-module configuration with slot system for perfect multigang installation arrangements
- Shallow depth mechanism facilitating easy mounting into flush-mounted boxes without additional wall modifications
- High-capacity PoE (Power over Ethernet) support for powering network devices
- Mat black finishing providing contemporary aesthetic integration with modern interiors
- Color-coded terminal marking for intuitive wire identification and installation
- Halogen-free construction compliant with environmental and safety standards
- IP20 degree of protection suitable for indoor residential and commercial applications
- IK03 impact strength rating for durability in typical installation environments
Technical Specifications
| Specification |
Value |
| Product Reference | 079176L |
| EAN Code | 3414971637863 |
| Brand | Legrand |
| Product Line | Mosaic |
| Socket Type | RJ45 8(8) |
| Category | Category 6A |
| Shielding Type | FTP (Foiled Twisted Pair) |
| Data Rate | Up to 10 GigaBit/s |
| Number of Modules | 2 |
| Color | Mat Black |
| RAL Number | 9017 |
| Connection Type | Insulation Displacement Connector (IDC) |
| Installation Method | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 46.5 mm |
| Built-in Depth | 25.2 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Type of Fastening | Engage (Snap) |
| Connector Quantity | 1 |
| With Dust Cover | Yes |
| With Label Space | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Surface Mounting | No |
| Flush-mounted Installation | Yes |
| Duct Installation | Yes |
| Floor Box/Subfloor Mounted | Yes |
| Shielded Buses | Yes |
| Separate Earthing Connection | No |
| Separate Strain Relief | No |
| Outlet Direction | Straight |
| Color Coding | Yes |
| PoE Support | High-capacity Power over Ethernet compatible |
| Recommended Use | Indoor residential and commercial installations |
Order Legrand Mosaic RJ45 Socket Category 6A FTP 2 Modules Matt Black | 079176L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
