Shop Legrand Mosaic RJ45 Socket Inclined 45° Controlled Access Category 6A STP White | 76599 In Iraq Best Prices
Premium RJ45 Cat 6A STP socket with 45° controlled access, 10 Gbps data rate, key lock security, and toolless installation for professional network infrastructure.

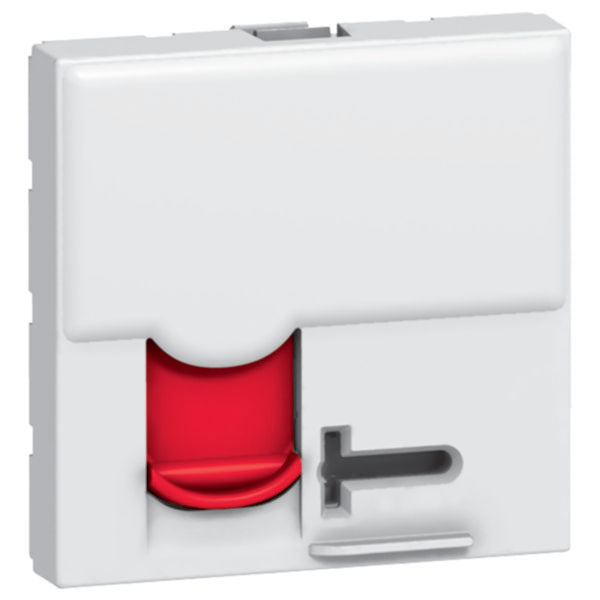

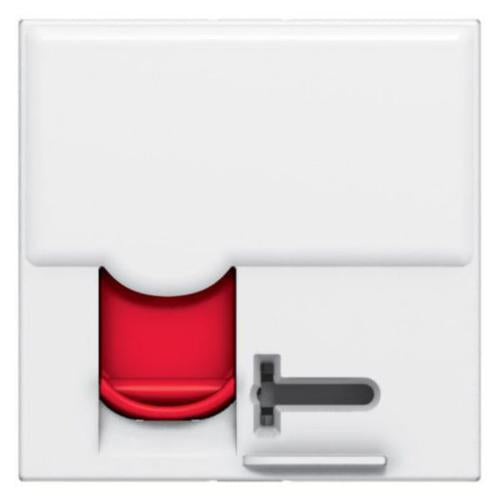

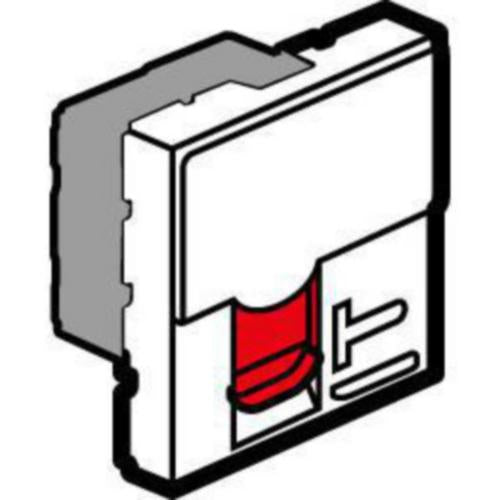

The Mosaic™ RJ45 Socket Inclined 45° is a premium controlled access category 6A STP (Shielded Twisted Pair) connector designed for professional network installations. This 2-module device features a white finish with red shutter protection, delivering data rates up to 10 GigaBit/s, making it ideal for demanding applications including high-capacity PoE (Power over Ethernet) systems. The socket is equipped with a transparent protective dust cover and incorporates a key lock system that secures the connector to prevent damage or unauthorized access.
This innovative networking solution features a 45° tilt angle that prevents both cord and socket wear and tear, extending the lifespan of your network infrastructure. The device comes with toolless connectors featuring integrated crimping for fast, efficient installation. The slot system enables perfect multigang settings with seamless support frame integration, allowing installation in standard flush mounting boxes without additional wall modifications. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this socket offers exceptional versatility for both commercial and residential installations.
Conforming to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, the Mosaic RJ45 Socket delivers reliable performance for IP and analog phones, streaming applications, and online gaming requiring minimal latency. The halogen-free design ensures environmental compliance, while the IK03 impact strength rating provides durability in active installations. With its comprehensive technical specifications and professional-grade construction, this socket represents the ideal choice for modern network infrastructure requiring both performance and longevity.
Key Features
- RJ45 Category 6A STP with data rates up to 10 GigaBit/s for high-speed network connectivity
- 45° inclined outlet design prevents cord and socket wear and tear while reducing cable stress
- Key lock system secures the connector to prevent damage and unauthorized access
- Toolless connectors with integrated crimping for fast and efficient installation
- Transparent protective dust cover equipped for enhanced connector protection
- High-capacity PoE (Power over Ethernet) support for advanced power delivery applications
- Compatible with RJ11, RJ12, and RJ45 plugs for maximum versatility
- Slot system enables perfect multigang settings with seamless support frame integration
- Halogen-free construction ensuring environmental compliance and safety
- IK03 impact strength rating providing durability in active installations
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category Rating | Category 6A (Cat 6A) |
| Connector Type | RJ45 8(8) |
| Shielding Type | STP (Shielded Twisted Pair) |
| Data Rate | Up to 10 GigaBit/s |
| Number of Modules | 2 modules |
| Color | White (RAL 9003) with red shutter |
| Outlet Direction | 45° inclined |
| Connection Type | Insulation displacement connector (IDC) |
| Installation Method | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 68.5 mm |
| Built-in Depth | 31 mm |
| Fastening Type | Engage (snap) |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Dust Cover | Yes, transparent protective cover |
| Key Lock System | Yes, for connector security |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Label Space | Yes |
| Terminal Marking Indication | Yes |
| Colour Coding | Yes |
| PoE Support | High-capacity Power over Ethernet compatible |
| Connector Compatibility | RJ11, RJ12, RJ45 plugs |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Installation Type | Toolless with integrated crimping |
| Brand | LEGRAND |
| Product Line | Mosaic™ |
| Reference Number | 076599 |
| EAN Code | 3245060765996 |
| Suitable Applications | Commercial and residential installations, IP and analog phones, streaming, online gaming |
