Shop Legrand Mosaic RJ45 Socket Category 6 FTP 1 Module Matt Black | 079162L In Iraq Best Prices
Professional RJ45 Category 6 FTP socket with single module design, mat black finish, and integrated PoE support for high-speed networking applications

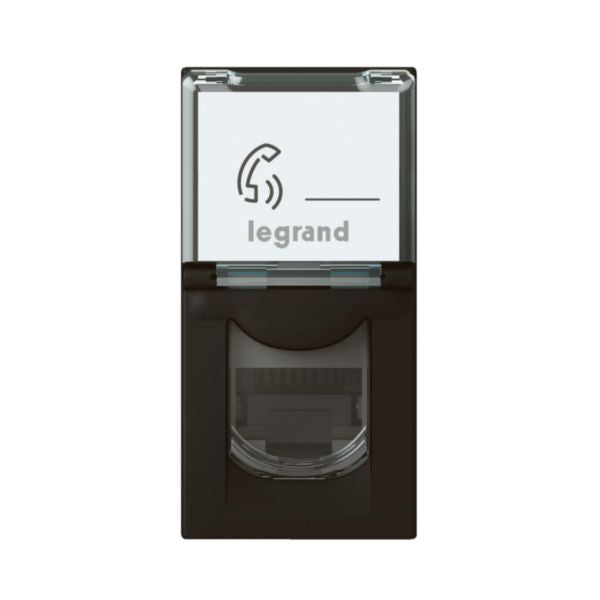

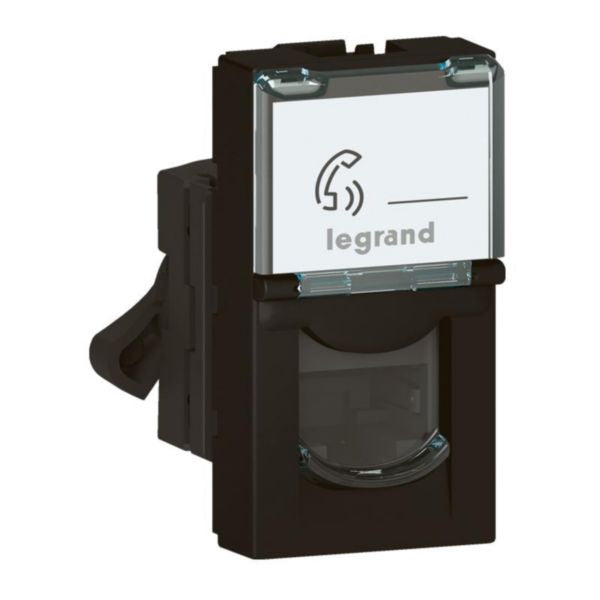

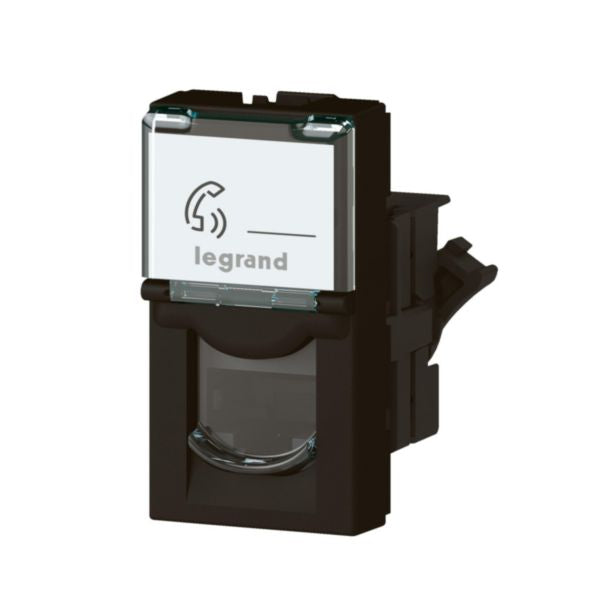

The Mosaic™ RJ45 Category 6 FTP Socket is a professional-grade networking component designed for high-speed data transmission up to 1 Gigabit per second. This single module socket features a shielded FTP (Foiled Twisted Pair) design with gold/nickel contacts ensuring reliable connectivity and superior signal integrity. The mat black finish provides a modern aesthetic while maintaining exceptional durability and performance. This connector is fully compatible with standard RJ45 cabling and supports advanced Power over Ethernet (PoE) applications, allowing simultaneous transmission of data and electrical power through twisted pair cabling.
The product features a toolless connector design with integrated crimping technology, eliminating the need for specialized installation tools. The RJ45 connector includes a locking nut for secure connection and can be re-wired if necessary, providing flexibility during installation. With gold plating of minimum 0.8 micrometers thickness, the contacts ensure long-term reliability and resistance to corrosion. The socket is engineered for flush-mounted, duct, and floor box installations, making it versatile for various building infrastructure applications.
Designed to meet Category 6 specifications, this socket delivers exceptional performance for bandwidth-intensive applications. The device includes a dust cover for protection, color coding for easy identification, and label space for documentation. Operating across a wide temperature range from -40°C to +70°C, this component maintains consistent performance in diverse environmental conditions. The IK04 impact resistance rating ensures durability in demanding installation environments.
Key Features
- Category 6 FTP shielded design supporting data rates up to 1 Gigabit per second
- Toolless connector with integrated crimping technology for quick and easy installation
- Gold/nickel contacts with minimum 0.8 micrometer gold plating for superior conductivity
- Power over Ethernet (PoE) compatible for simultaneous data and power transmission
- Versatile installation options including flush-mounted, duct, and floor box mounting
- Locking nut connector with re-wireable design for flexible installation adjustments
- IK04 impact resistance rating ensuring durability in demanding environments
- Wide operating temperature range from -40°C to +70°C for diverse climates
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Connector |
| Category | Category 6 FTP (Foiled Twisted Pair) |
| Data Rate | Up to 1 Gigabit per second |
| Connector Type | RJ45 8(8) with locking nut |
| Number of Modules | 1 module |
| Connection Method | Insulation displacement connector (IDC) |
| Color | Mat Black (RAL 9017) |
| Contact Material | Gold/nickel with minimum 0.8 micrometer gold plating |
| Device Dimensions (W x H x D) | 22.5 mm x 45 mm x 33.7 mm |
| Built-in Depth | 25.2 mm |
| Installation Type | Flush-mounted, duct, or floor box installation |
| Fastening Type | Engage (snap) fastening |
| Maximum Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Resistance | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Halogen Free | Yes |
| Power over Ethernet (PoE) | Supported |
| Dust Cover | Included |
| Color Coding | Yes |
| Label Space | Yes |
| Shielded Design | Yes - FTP shielded |
| Reference Number | 079162L |
| EAN Code | 3414971637771 |
