Shop Legrand Mosaic RJ45 Socket Category 6 FTP 2 Modules White | 76592 In Iraq Best Prices

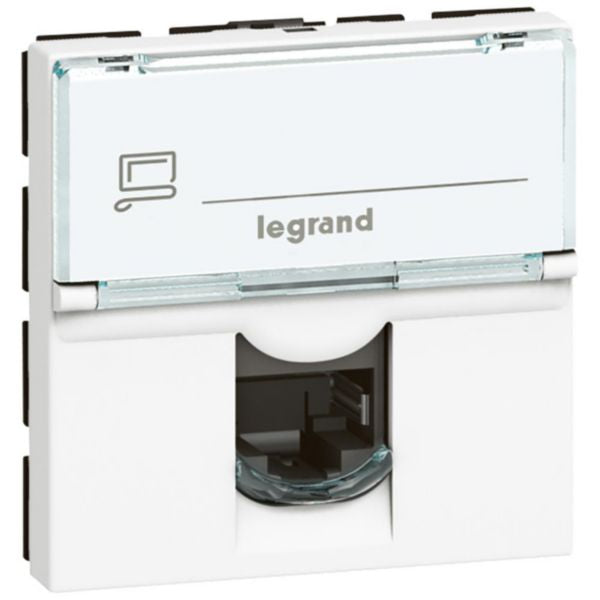

Professional Mosaic RJ45 Cat 6 FTP socket with 2 modules for snap-on columns. Features toolless quick connection, dust cover, PoE support, and 1 GigaBit/s data transmission for commercial and residential applications.
The Mosaic RJ45 socket is a professional-grade networking component designed for snap-on columns and mini-columns installations. This Category 6 FTP (Foiled Twisted Pair) connector delivers high-speed data transmission with rates up to 1 GigaBit/s, enabling rapid file transfers and supporting advanced PoE (Power over Ethernet) applications. The socket features a transparent protective dust cover and four lateral fastening clips for secure installation. Built to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this 2-module white connector is ideal for both commercial and residential installations.
This Legrand product incorporates toolless quick-connection technology with integrated crimping capabilities, making installation faster and more efficient. The connector is compatible with RJ11, RJ12, and RJ45 plugs, providing versatile connectivity options. The slot system allows for perfect multigang configuration with seamless support frame joining, eliminating the need for additional wall groove cutting. With IP20 protection rating and IK03 impact resistance, the socket offers reliable performance in standard indoor environments. The halogen-free construction ensures environmental compliance and safety standards.
The Mosaic RJ45 socket excels in applications requiring low latency, making it particularly suitable for downloads, streaming, and online gaming. Its modular design integrates seamlessly into standard flush mounting boxes, and it can be installed in duct systems or floor boxes. The device operates reliably across a temperature range of -40°C to 70°C, ensuring consistent performance in various conditions. With comprehensive documentation and certification agreements included, this product represents a complete networking solution for modern building infrastructure.
Key Features
- Cat 6 FTP connector supporting data rates up to 1 GigaBit/s for fast file transfers and downloads
- High-capacity PoE (Power over Ethernet) support for integrated power and data transmission on twisted pair cabling
- Toolless quick connection with integrated crimping for faster and easier installation without special tools
- Transparent protective dust cover with four lateral fastening clips for secure and clean installation
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile networking connectivity options
- Modular slot system allowing perfect multigang configuration without additional wall modifications
- IP20 protection rating and IK03 impact resistance for reliable indoor performance
- Halogen-free construction meeting environmental compliance and safety standards
- Operating temperature range of -40°C to 70°C for consistent performance in various conditions
- Conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category Rating | Category 6 FTP (Foiled Twisted Pair) |
| Data Transmission Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Connector Type | RJ45 8(8) |
| Connection Method | Insulation Displacement Connector (IDC) - Toolless |
| Suitable Number of Connectors | 1 |
| Color | White (RAL 9003) |
| Mounting Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Type of Fastening | Engage (Snap) - for snap-on columns and mini-columns |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection (IP Rating) | IP20 |
| Impact Strength Rating (IK) | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Dust Cover | Yes - Transparent protective cover |
| Fastening Clips | Four lateral fastening clips |
| PoE Compatibility | Yes - Supports high-capacity Power over Ethernet |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Terminal Marking Indication | Yes |
| Colour Coding | Yes |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Reference Number | 076592 |
| EAN Code | 3245060765927 |
| Brand | Legrand |
| Product Line | Mosaic |
