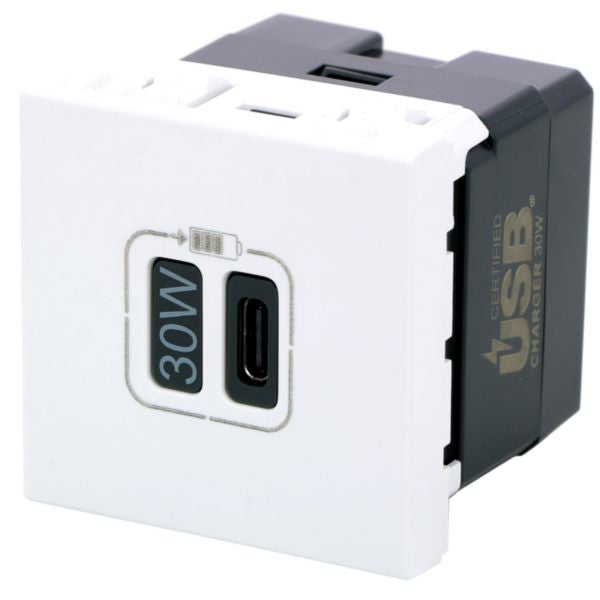

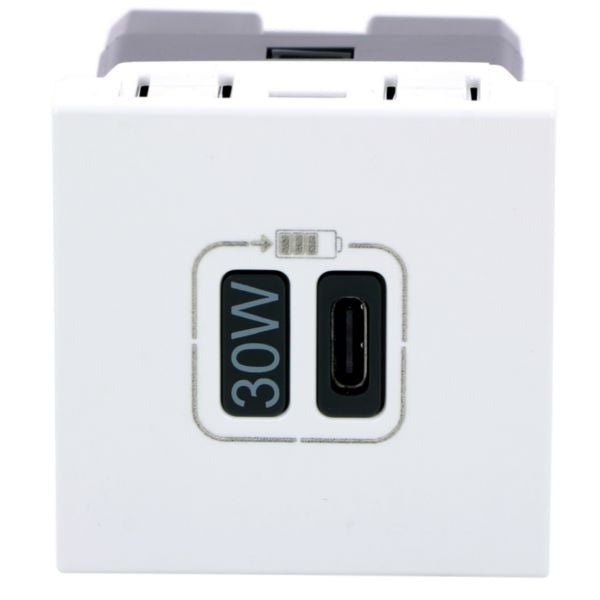

Shop Legrand Mosaic USB Type-C Power Delivery Charger 30W White | 077585L In Iraq Best Prices
Advanced 30W Power Delivery USB Type-C charger with intelligent voltage optimization for universal device compatibility. Features secure screw terminals, compact 38mm depth, and fast 3000mA charging output.
The Mosaic Power Delivery 30W USB Type-C charger is a professional-grade charging solution designed for modern digital devices. This white flush-mounted socket features advanced Power Delivery technology that intelligently optimizes charging by delivering 5-9-12-15V output to ensure maximum compatibility with laptops, tablets, and smartphones. The device is engineered with a compact 38mm depth design, making it perfect for installation in standard 40mm flush-mounted boxes.
This universal charger is compatible with all major operating systems and devices including Apple computers and tablets, Android smartphones and tablets, and PC computers. The socket features secure screw terminal connections with marked P+N power supply terminals rated for 1.5-2.5mm² flexible or rigid cables. With an impressive 3000mA maximum output current and operating voltage range of 100-240V, 50-60Hz, this device provides reliable fast charging capabilities for multiple device types simultaneously.
The Mosaic USB Type-C charger is recommended for indoor use and meets strict safety standards with IP40 degree of protection and IK04 impact strength rating. The halogen-free construction and advanced thermal management ensure safe operation in temperatures ranging from 0-45°C. This professional-grade solution integrates seamlessly with multi-gang wiring accessories and is ideal for residential, commercial, and hospitality environments where reliable universal charging is essential.
Key Features
- Power Delivery technology with intelligent 5-9-12-15V voltage optimization for maximum device compatibility
- Universal fast charging for laptops, tablets, and smartphones from Apple, Android, and PC platforms
- Compact 38mm depth design fits standard 40mm flush-mounted installation boxes
- High-capacity 3000mA maximum output current for rapid charging performance

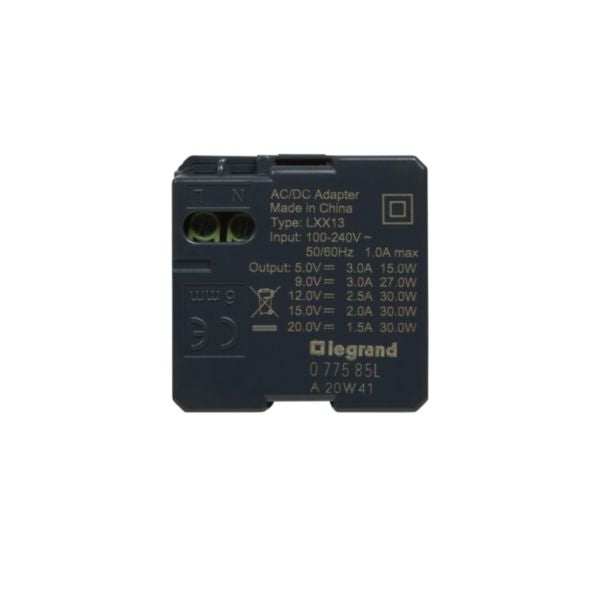

- Secure screw terminal connections with marked P+N power supply rated for 1.5-2.5mm² cables
- IP40 protection rating and IK04 impact strength for reliable indoor use
- Halogen-free construction with advanced thermal management for safe operation
- Compatible with multi-gang wiring accessories for flexible installation options
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Power Delivery 30W USB Type-C Charger |
| Reference Number | 077585L |
| EAN Code | 3414971941410 |
| Brand | Legrand |
| Color | White (RAL 9003) |
| Number of USB Ports | 1 x USB Type-C |
| Power Output | 30W |
| USB Output Power | 30W |
| Maximum Output Current | 3000 mA |
| Output Voltage Range | 5-20V (Power Delivery: 5-9-12-15V) |
| Input Voltage Range | 100-240V AC |
| Frequency | 50-60 Hz |
| Supply Current | 1-1A |
| Power Consumption | 0.059W |
| Number of Modules | 2 modules |
| Connection Type | Screwed terminal |
| Terminal Marking | Yes (P+N marked) |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type Compatibility | Flexible or rigid cables |
| Cable Section Range | 1.5-2.5 mm² |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 45 mm |
| Built-in Depth | 36.5 mm |
| Minimum Box Depth Required | 40 mm |
| Installation Method | Flush-mounted |
| Mounting Type | Suitable for 40mm flush-mounted boxes |
| IP Rating | IP40 |
| IK Rating | IK04 |
| Operating Temperature Range | 0-45°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Technology | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Mandatory Neutral | Yes |
| Stress Test Conformity (1000V) | No |
| Recommended Use | Indoor use |
| Compatibility | Universal - Apple, Android, PC computers and tablets |
