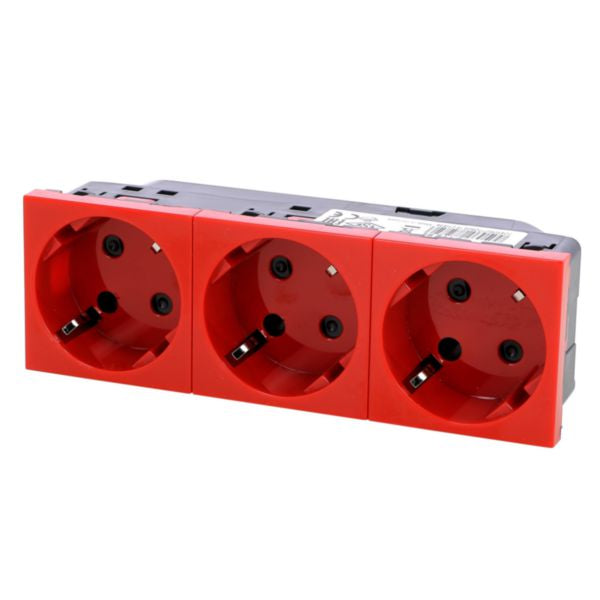

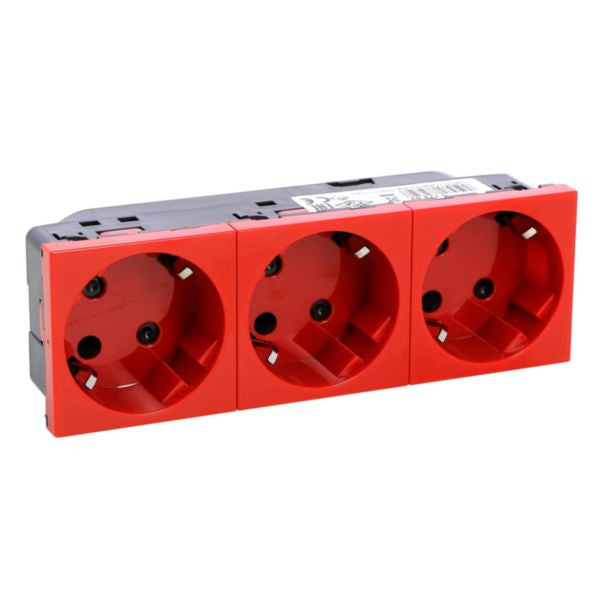

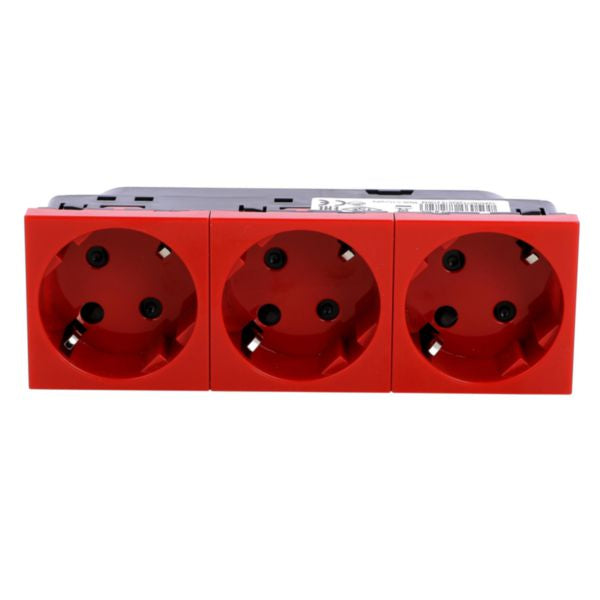

Shop Legrand Mosaic Triple Socket 2P+E Tamperproof Red | 077282 In Iraq Best Prices
Professional triple socket outlet with 3 x 2P+E automatic terminals, tamperproof design, 16A/250V rated, German standard compatible, suitable for flush-mounting, surface-mounting, and floor box installations.
The Legrand Mosaic Multi-Support Multiple Socket is a professional-grade electrical outlet system designed for German standard installations. This triple socket configuration features 3 x 2P+E automatic terminals with enhanced contact protection and tamperproof design, making it ideal for safe and reliable power distribution in residential and commercial environments. The red-colored outlet is specifically designed as additional safety power supply and complies with CEE 7/3 (type F) socket standards.
This modular device is compatible with multiple installation methods including flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules. The socket features an inclined 45° design for ergonomic accessibility and is rated for IK07 impact resistance. With a nominal current rating of 16A at 250V and support for both 50-60 Hz frequencies, this outlet provides reliable power management for various applications.
The Mosaic range offers exceptional versatility with its multi-support installation capability. The automatic push-in clamp terminals ensure quick and secure connections with cable sections of 2.5-2.5 mm². The halogen-free thermoplastic construction and glossy finish provide durability and aesthetic appeal. The tamperproof design requires a compatible tamperproof insert (Cat.No 0 502 99) for enhanced safety, making it particularly suitable for installations where child safety or security is a concern.
Key Features
- Triple socket configuration with 3 x 2P+E automatic terminals for enhanced power distribution
- Tamperproof design with red color coding for additional safety power supply
- Multi-support installation compatibility with flush-mounting, surface-mounting, floor boxes, and column modules
- 45-degree inclined design for ergonomic accessibility and ease of use
- IK07 impact resistance rating with halogen-free thermoplastic construction
- 16A/250V nominal rating with 50-60 Hz frequency support
- Push-in clamp automatic terminals for quick and secure cable connections
- German standard (CEE 7/3 Type F) socket outlet configuration
- Modular device system with 6-module capacity for flexible installations
- Enhanced contact protection with glossy finish for durability
Technical Specifications
| Specification |
Value |
| Product Model | Mosaic Multi-Support Multiple Socket |
| Reference Number | 077282 |
| EAN Code | 3245060772826 |
| Socket Type | CEE 7/3 (Type F) - German Standard |
| Number of Sockets | 3 |
| Terminal Configuration | 3 x 2P+E Automatic Terminals |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Connection Type | Push-in Clamp (Automatic Terminals) |
| Cable Section | 2.5-2.5 mm² |
| Material | Halogen-Free Thermoplastic |
| Color | Red (RAL 3020) |
| Surface Finish | Glossy |
| Impact Resistance Rating | IK07 |
| Degree of Protection | IP40 |
| Device Width | 135 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Built-in Depth | 31.5 mm |
| Module Count | 6 Modules |
| Mounting Method | Module Frame / Snap Mounting |
| Installation Types | Flush-mounting box, Surface-mounting box, Floor box, Column module, Desktop multi-outlet extension, Office module |
| Inclination Angle | 45 Degrees |
| Contact Protection | Enhanced (Tamperproof) |
| Tamperproof Design | Yes - Requires tamperproof insert Cat.No 0 502 99 |
| Operating Temperature Range | -5 to +35°C |
| Storage Temperature Range | -10 to +70°C |
| Voltage Type | AC (Alternating Current) |
| Protective Contact | Yes - CEE 7/3 Type F |
| Loop Through Function | Yes |
| On/Off Switch | No |
| USB Ports | None |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Smart Home Compatible | No (Not compatible with HomeKit, Alexa, or Google Assistant) |
| Programme/Range | Mosaic Programme - German Standard |
