Shop Legrand Mosaic Multi-Support Multiple Socket 2x2P+E Red | 077272 In Iraq Best Prices
Premium German standard multi-support socket outlet with 2x2P+E automatic terminals, 16A/250V, IK07 impact resistance, and enhanced contact protection for versatile installation applications.

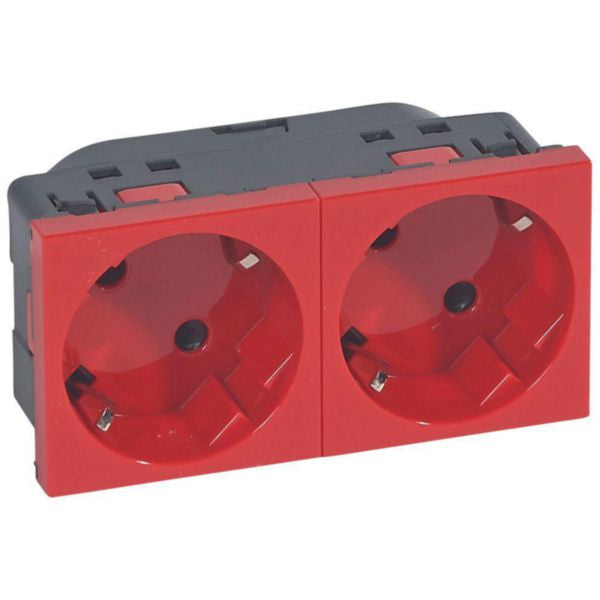

The Legrand Mosaic Multi-Support Multiple Socket with 2x2P+E automatic terminals in red is a premium German standard electrical outlet designed for versatile installation applications. This modular device features two socket outlets with protective contact CEE 7/3 (type F) configuration, making it ideal for residential and commercial environments. The socket is engineered with enhanced contact protection and operates at 16A nominal current with 250V nominal voltage, supporting both 50-60 Hz frequencies.
This multi-support socket is specifically designed for installation in flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules. The 45-degree inclined design with IK07 impact resistance provides durability and accessibility. The automatic push-in clamp connection system (2x2P+E terminals) ensures secure and reliable electrical connections without the need for tools, simplifying installation and maintenance procedures.
The red color finish (RAL 3020) makes this outlet distinctly identifiable for special safety power supply applications. Constructed from halogen-free thermoplastic material, the Mosaic socket meets modern environmental and safety standards. With its 4-module configuration, 90mm width, 45mm height, and 40mm depth, this outlet integrates seamlessly into contemporary electrical installations while maintaining the aesthetic standards of the Mosaic programme.
Key Features
- Dual 2P+E socket outlets with protective contact CEE 7/3 (type F) configuration for enhanced electrical safety
- Automatic push-in clamp terminal connection system enabling tool-free installation and maintenance
- Multi-support installation capability compatible with flush-mounting boxes, surface-mounting boxes, floor boxes, and column modules
- IK07 impact resistance rating with enhanced contact protection for durability in demanding environments
- Halogen-free thermoplastic construction meeting modern environmental and safety standards
- 45-degree inclined design for improved accessibility and user convenience
- Red color finish (RAL 3020) for clear identification of special safety power supply applications
- 4-module modular configuration integrating seamlessly with Mosaic programme devices
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Multi-Support Multiple Socket 2x2P+E Automatic Terminals |
| Reference Number | 077272 |
| EAN Code | 3245060772727 |
| Socket Type | CEE 7/3 (Type F) - Protective Contact |
| Number of Socket Outlets | 2 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Push-in Clamp (Automatic Terminals 2x2P+E) |
| Cable Section | 2.5-2.5 mm² |
| Voltage Type | AC |
| Material | Halogen-Free Thermoplastic |
| Colour | Red (RAL 3020) |
| Device Width | 90 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Built-in Depth | 31.5 mm |
| Number of Modules | 4 |
| Impact Resistance Rating | IK07 |
| IP Protection Degree | IP40 |
| Enhanced Contact Protection | Yes |
| Mounting Method | Module Frame (Snap Mounting) |
| Installation Support | Flush-mounting box, Surface-mounting box, Floor box, Column module, Desktop multi-outlet extension, Office module |
| Inclination Angle | 45° |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Insulated Mounting | Yes |
| Loop Through Function | Yes |
| Number of Active Contacts | 4 (Round) |
| Protective Contact | Other |
| Concurrent Switching Neutral Conductor | No |
| Lockable | No |
| With Hinged Lid | No |
| Eject Mechanism | No |
| Special Power Supply | Additional Safety Power Supply (Red) |
| Smart Home Compatibility | Not Compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
