Premium German standard multi-support dual socket outlet with 2x2P+E automatic terminals, 16A/250V rating, aluminium finish, enhanced contact protection, and flexible installation compatibility.

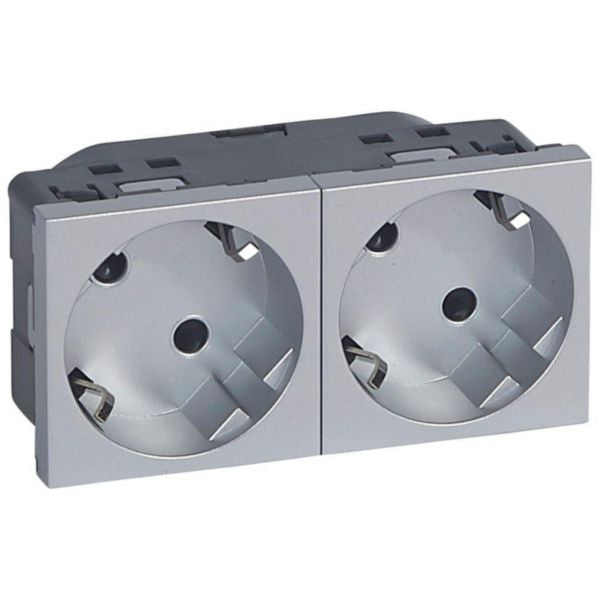

The Legrand Mosaic Multi-Support Multiple Socket is a premium electrical outlet solution designed for modern residential and commercial installations. This German standard socket features 2 x 2P+E automatic terminals with push-in clamp connection technology, providing secure and reliable electrical connections. The socket is constructed with durable aluminium finish and is compatible with various installation methods including flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules.
This multi-support socket is engineered with enhanced contact protection and features an inclined 45-degree design for optimal accessibility and safety. With a nominal current rating of 16A at 250V and support for both 50-60 Hz frequencies, it meets international electrical standards. The device maintains an IK07 impact strength rating and IP40 degree of protection, making it suitable for domestic and light commercial applications. The halogen-free plastic construction ensures environmental compliance and safety.
The Mosaic programme mechanisms offer flexible installation options with rotated central insert capability and loop-through function for daisy-chaining multiple outlets. With dimensions of 90mm width, 45mm height, and 40mm depth, it integrates seamlessly into standard electrical installation systems. The product includes comprehensive technical documentation and BIM data for professional installation and design purposes.
Key Features
- 2 x 2P+E automatic push-in clamp terminals for secure electrical connections
- German standard compliance with multi-support installation capability
- Enhanced contact protection and IK07 impact strength rating for durability
- Inclined 45-degree design for optimal accessibility and ergonomic use
- Halogen-free thermoplastic construction with environmentally compliant materials
- Compatible with flush-mounting, surface-mounting, floor boxes and column modules
- Loop-through function enabling daisy-chaining of multiple outlets
- 16A nominal current at 250V with 50-60 Hz frequency support
- IP40 degree of protection suitable for domestic and light commercial use
- Rotated central insert with modular device system for flexible configuration
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Multi-Support Multiple Socket 2x2P+E Automatic Terminals |
| Reference Number | 079282 |
| EAN Code | 3245060792824 |
| Brand | Legrand |
| Programme | Mosaic |
| Standard | German Standard |
| Socket Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of Socket Outlets | 2 |
| Connection Type | Push-in clamp (automatic terminals) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Active Contacts | 4 round contacts |
| Number of Modules | 4 modules |
| Protective Contact | Other (CEE 7/3 type F) |
| Device Width | 90 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Built-in Depth | 31.5 mm |
| Material | Thermoplastic - Halogen Free |
| Colour | Aluminium |
| RAL Number | 7040 (similar) |
| Surface Finishing | Glossy Lacquered |
| Degree of Impact Strength (IK) | IK07 |
| Degree of Protection (IP) | IP40 |
| Mounting Method | Module frame (Snap mounting) |
| Installation Compatibility | Flush-mounting box, surface-mounting box, floor box, column module, desktop multi-outlet extension, office module |
| Installation Angle | Inclined 45° |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| Rotated Central Insert | Yes |
| Cable Section Range | 2.5-2.5 mm² |
| Cable Nature | Rigid |
| Operating Temperature | -5 to 35 °C |
| Storage Temperature | -10 to 70 °C |
| Voltage Type | AC |
| Concurrently Switching Neutral Conductor | No |
| With Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Power Delivery | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Assembly Arrangement | Modular device for domestic switching devices |
