Shop Legrand Mosaic HDMI Socket Preterminated 1 Module White | 078778 In Iraq Best Prices
Premium preterminated HDMI 1.4 socket with 15cm cable for seamless high-definition audio-video transmission in residential and commercial applications.

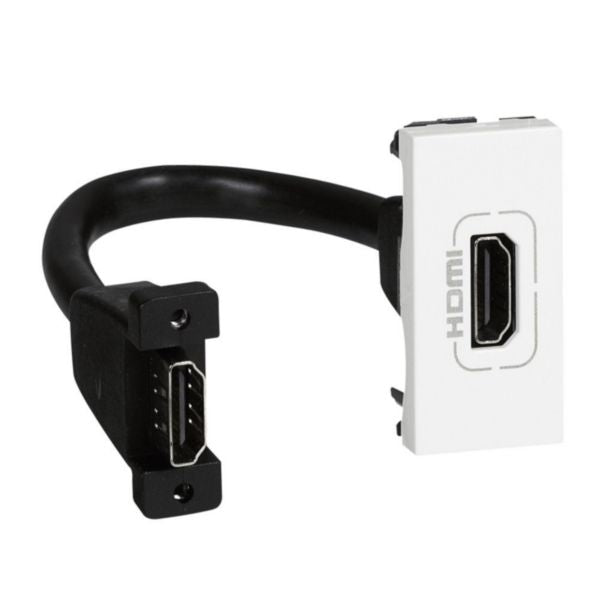

The Legrand Mosaic HDMI socket is a premium audio-video transmission device designed for modern digital home entertainment systems. This preterminated HDMI 1.4 socket features a 15cm pre-connected cable, making installation quick and hassle-free. The socket is specifically engineered to transmit high-definition digital audio and video streams between various sources such as computers, Blu-ray players, and compatible receivers including televisions and video projectors. Built with thermoplastic material and featuring a glossy white finish matching the RAL 9003 standard, this modular device integrates seamlessly into domestic switching installations.
This single-module Mosaic HDMI socket is flush-mounted and offers exceptional durability with an IK04 degree of impact strength rating and IP40 protection level. The device features a straight outlet direction and includes buses with coupling capabilities for reliable connections. With dimensions of 22.5mm width, 45mm height, and 40mm depth, it fits standard installation boxes with a minimum depth of 40mm. The halogen-free construction ensures environmental safety and compliance with modern building standards.
The socket operates reliably across a wide temperature range from -5°C to 50°C, with storage capabilities from -10°C to 70°C. Perfect for residential and commercial applications, this Legrand Mosaic component represents the ideal solution for home theater installations, media rooms, and any space requiring high-definition digital connectivity. The preterminated design eliminates complex wiring requirements, making it suitable for both professional installers and DIY enthusiasts.
Key Features
- Preterminated HDMI 1.4 socket with 15cm pre-connected cable for hassle-free installation
- High-definition digital audio and video transmission capability between multiple sources and receivers
- Flush-mounted single module design compatible with standard domestic switching installations
- Durable thermoplastic construction with glossy white finish matching RAL 9003 standard
- IP40 protection level and IK04 impact strength rating for reliable long-term performance
- Halogen-free material ensuring environmental safety and modern building code compliance
- Wide operating temperature range from -5°C to 50°C for diverse climate conditions
- Straight outlet direction with bus coupling capabilities for secure connections
- Compact dimensions (22.5mm × 45mm × 40mm) fitting standard installation boxes
- Suitable for home theater, media rooms, and professional audio-video installations
Technical Specifications
| Specification |
Value |
| Product Type | HDMI Socket - Audio/Video Outlet |
| Brand | Legrand |
| Collection | Mosaic |
| Reference Number | 078778 |
| EAN Code | 3245060787783 |
| HDMI Standard | HDMI 1.4 |
| Cable Length | 15 cm preterminated |
| Number of Modules | 1 |
| Connector Type | HDMI Type A |
| Number of Connectors | 1 |
| Mounting Method | Flush-mounted |
| Outlet Direction | Straight |
| Material | Thermoplastic |
| Color | White |
| RAL Number | 9003 |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 40 mm |
| Built-in Depth | 28.6 mm |
| Minimum Installation Box Depth | 40 mm |
| Protection Level (IP) | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| With Buses/Couplings | Yes |
| Support Ring | No |
| Dust Cover | No |
| Hinged Lid | No |
| Strain Relief | No |
| Shielded Buses | No |
| Shielded Housing | No |
| Type of Fastening | Engage (snap) |
| Antimicrobial Treatment | No |
| Imprintable Label | Without indication field |
| Assembly Arrangement | Modular device for domestic switching devices |
Order Legrand Mosaic HDMI Socket Preterminated 1 Module White | 078778 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
