Shop Legrand Mosaic Double USB Type-C Charging Socket 5V 3A 15W | 79390 In Iraq Best Prices
Professional dual USB Type-C charging socket with 5V 3A output, advanced surge protection, and energy-efficient design for simultaneous smartphone and tablet charging in modern interiors.

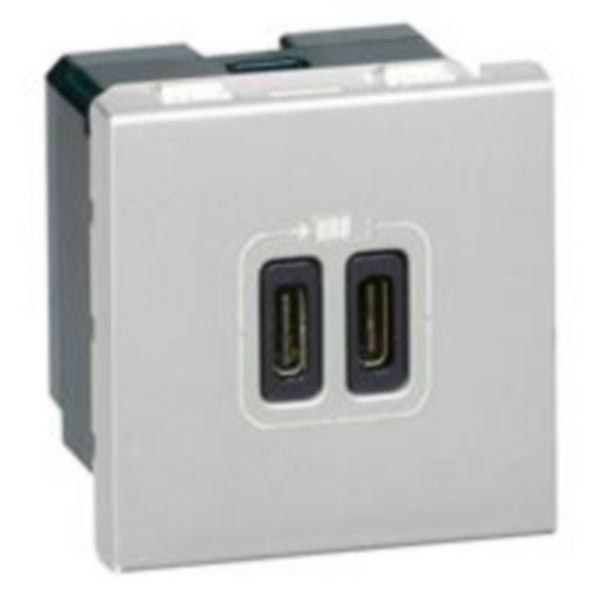

The Mosaic Double USB Type-C Charging Socket represents a modern solution for simultaneous charging of multiple portable devices. This professional-grade charging socket features dual USB Type-C ports that conform to IEC 62680-1-3 standards, delivering 5V at 3A (15W total power output) for fast charging of smartphones and tablets. The socket is equipped with advanced surge protection exceeding 1 kV, ensuring device safety during power fluctuations. With passive mode consumption of less than 0.07W, this energy-efficient solution minimizes standby power waste while maintaining Class II SELV safety compliance.
Designed for the Mosaic programme mechanism, this 2-module flush-mounted socket features screw terminals compatible with 1.5-2.5 mm² flexible or rigid cables. The aluminium finish provides a contemporary aesthetic suitable for modern interior designs. The socket operates across standard AC voltage ranges (100-240V, 50-60Hz) and maintains optimal performance across operating temperatures from 0-45°C. Its compact dimensions (45mm width × 45mm height × 42mm depth) allow seamless integration into standard wall receptacles designed for floor socket installations, with a minimum built-in installation box depth of 40mm.
This charging solution delivers universal compatibility with modern portable devices, featuring intelligent power delivery that ensures safe and efficient charging for smartphones, tablets, and portable computers. The halogen-free construction and IK04 impact resistance rating ensure durability and environmental compliance. Perfect for residential, commercial, and hospitality applications where convenient multi-device charging is essential.
Key Features
- Dual USB Type-C ports for simultaneous charging of two devices
- 5V 3A (15W) fast charging power output suitable for smartphones and tablets
- Advanced surge protection exceeding 1 kV for device safety
- Energy-efficient passive mode consumption less than 0.07W
- Class II SELV safety compliance with halogen-free construction
- IEC 62680-1-3 standard compliant universal charger
- Screw terminal connections for 1.5-2.5 mm² cables
- Aluminium finish with contemporary aesthetic design
- IK04 impact resistance rating for durability
- 2-module flush-mounted installation system
Technical Specifications
| Specification |
Value |
| Product Type | USB Charging Socket - Mosaic Programme |
| Number of USB Ports | 2 x USB Type-C ports |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Total Power Output | 15W |
| Input Voltage Range | 100-240V AC |
| Operating Frequency | 50-60 Hz |
| Power Consumption (Passive Mode) | 0.064W (less than 0.07W) |
| Number of Modules | 2 modules |
| Installation Method | Flush-mounted |
| Connection Type | Screw terminals |
| Cable Capacity | 1.5-2.5 mm² (flexible or rigid) |
| Number of Terminals | 2 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Built-in Installation Box Depth (Minimum) | 40 mm |
| Built-in Depth | 33 mm |
| Colour | Aluminium |
| Operating Temperature Range | 0-45°C |
| Storage Temperature Range | -20-70°C |
| Degree of Protection (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Safety Standard | Class II SELV |
| USB Standard Compliance | IEC 62680-1-3 |
| Surge Protection | Greater than 1 kV |
| Halogen-free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Power Delivery Support | No |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Reference Number | 079390 |
| EAN Code | 3414971003361 |
Order Legrand Mosaic Double USB Type-C Charging Socket 5V 3A 15W | 79390 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
