Shop Legrand Mosaic Double USB Type-A + Type-C Charging Socket 5V 3A White | 77592 In Iraq Best Prices
Premium Mosaic™ dual USB charging socket with Type-A and Type-C ports delivering 5V/3A/15W power. Features surge protection exceeding 1kV, Class II SELV safety, and energy-efficient passive mode consumption below 0.07W. Ideal for simultaneous charging of smartphones and tablets.

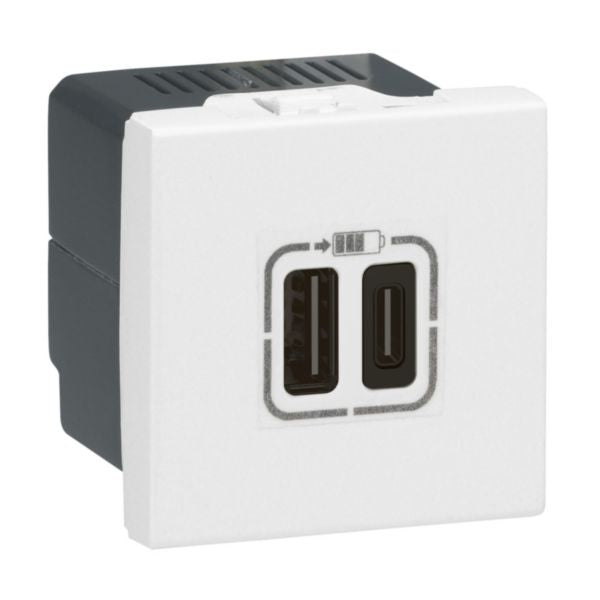

The Mosaic™ Double USB Type-A + Type-C charging socket is a modern solution for simultaneous charging of multiple portable devices. This premium wiring device combines universal charging capability with advanced surge protection, making it ideal for smartphones, tablets, and other USB-powered devices. The socket delivers 5V at 3A (15W total power) and complies with IEC 62680-1-3 standards for universal USB charging. With integrated surge protection exceeding 1 kV and passive mode consumption below 0.07W, this energy-efficient device ensures safe and reliable charging while minimizing standby power loss.
Designed for the Mosaic programme, this 2-module flush-mounted socket features Class II SELV safety classification and comes with 2 x 2.5 mm² screw terminals for secure installation. The white finish (RAL 9003) seamlessly integrates with modern interior designs and complements any residential or commercial space. The device operates on AC/DC voltage from 100-240V at 50-60Hz frequency, providing universal compatibility across different regions and electrical systems. Its compact dimensions (45mm x 45mm x 42mm) and 32.5mm built-in depth make it suitable for standard flush-mounted installation boxes with minimum 40mm depth.
This USB charging socket represents the perfect balance between functionality and design, offering halogen-free construction for environmental safety and compliance with modern building standards. The dual USB ports (one Type-A and one Type-C) eliminate the need for multiple adapters, while the 15W output power supports fast charging for contemporary devices. The device is cordless and can be installed in receptacles for floor sockets, providing flexible installation options for residential, commercial, and hospitality applications.
Key Features
- Dual USB ports: one Type-A and one Type-C for universal device compatibility
- Fast charging capability: 5V/3A output delivering 15W total power for smartphones and tablets
- Advanced surge protection exceeding 1kV for safe device charging
- Energy-efficient design with passive mode consumption below 0.07W
- Class II SELV safety classification for enhanced electrical safety
- Halogen-free construction meeting modern environmental standards
- IEC 62680-1-3 compliant universal USB charging standard
- 2-module Mosaic programme design with white RAL 9003 finish
- Flexible installation: suitable for flush-mounted boxes and floor sockets
- Universal voltage compatibility: 100-240V AC/DC at 50-60Hz frequency
Technical Specifications
| Specification |
Value |
| Product Line | Mosaic™ Programme |
| Number of Modules | 2 modules |
| USB Ports | 1x Type-A + 1x Type-C |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Total Power Output | 15W |
| Input Voltage Range | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption (Passive Mode) | 0.066W (less than 0.07W) |
| Surge Protection | Greater than 1 kV |
| Safety Classification | Class II SELV |
| Connection Type | 2x 2.5 mm² screw terminals |
| Installation Method | Flush-mounted |
| Colour | White |
| RAL Number | 9003 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Halogen Free | Yes |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Compliance Standard | IEC 62680-1-3 |
| Reference Number | 077592 |
| EAN Code | 3414971003347 |
