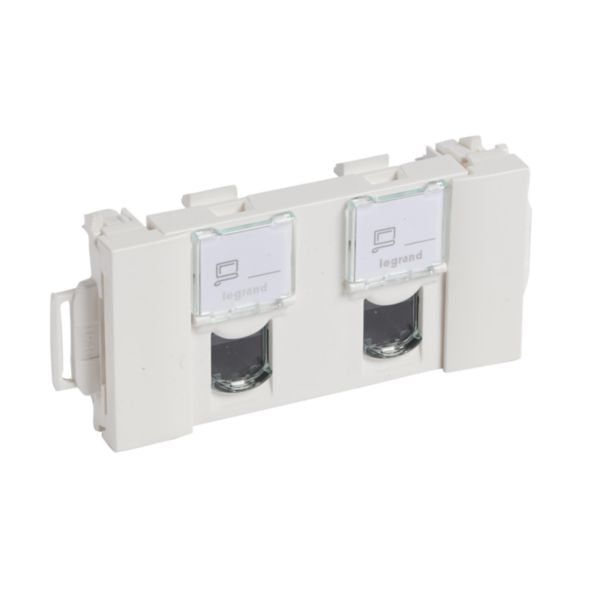

Shop Legrand Mosaic Double RJ45 Socket Category 6 UTP Soluclip White 3 Modules | 76544 In Iraq Best Prices
Professional dual RJ45 Category 6 UTP socket with 1 Gigabit/s data rate, PoE support, toolless installation, transparent dust cover, and modular 3-module design for flush-mounted applications.
The Mosaic Double RJ45 Socket Category 6 UTP Soluclip is a professional-grade network connectivity solution designed for modern residential and commercial installations. This dual socket module supports high-speed data transmission up to 1 Gigabit/s, making it ideal for demanding applications including video streaming, large file transfers, and Power over Ethernet (PoE) applications. The product features a transparent protective dust cover that safeguards the connectors from environmental contaminants, ensuring reliable long-term performance.
This 3-module flush-mounted device incorporates insulation displacement connector (IDC) technology, allowing for toolless installation with integrated crimping capabilities. The RJ45 connectors are equipped with a locking nut that eliminates the need for specialized tools and enables easy recabling in case of errors. Compatible with standard RJ11, RJ12, and RJ45 plugs, this socket provides exceptional versatility for various network configurations. The modular slot system ensures perfect alignment in multigang installations, simplifying the installation process without requiring additional wall modifications.
Built to exacting standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C compliance, this socket delivers exceptional durability with 2500 plug insertion/withdrawal cycles. The white color (RAL 9003) integrates seamlessly into contemporary interior designs. With an operating temperature range of -40°C to 70°C and halogen-free construction, this product meets modern safety and environmental requirements for professional installations.
Key Features
- RJ45 Cat 6 UTP with data rate up to 1 Gigabit/s for fast file transfers and streaming
- Power over Ethernet (PoE) support for high-capacity applications and device powering
- Transparent protective dust cover protecting connectors from environmental contamination
- Toolless installation with integrated crimping and locking nut system for easy recabling
- 2500 plug insertion/withdrawal cycles for exceptional durability and reliability
- Compatible with RJ11, RJ12, and RJ45 plugs for maximum versatility
- Modular slot system for perfect multigang alignment without additional wall modifications
- Flush-mounted installation in standard boxes with duct and floor box compatibility
- ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C compliant
- Halogen-free construction meeting modern safety and environmental standards
Technical Specifications
| Specification |
Value |
| Product Type | Double RJ45 Socket Category 6 UTP |
| Reference Number | 076544 |
| EAN Code | 3245060765446 |
| Brand | LEGRAND - Mosaic |
| Number of Connectors | 2 (Double socket) |
| Connector Type | RJ45 8(8) |
| Category | Category 6 UTP |
| Data Rate | Up to 1 Gigabit/s |
| Connection Type | Insulation Displacement Connector (IDC) |
| Number of Modules | 3 modules |
| Installation Type | Flush-mounted, Duct, Floor box compatible |
| Fastening Method | Engage (Snap) |
| Color | White (RAL 9003) |
| Device Width | 106.3 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Dust Cover | Yes - Transparent protective cover |
| Plug Insertion/Withdrawal Cycles | 2500 cycles |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Separate Strain Relief | No |
| Outlet Direction | Straight |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Color Coding | Yes |
| Terminal Marking | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes - High capacity applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Installation Method | Toolless with integrated crimping |
