Shop Legrand Mosaic Double RJ45 Socket Category 6 FTP 2 Modules White | 76506 In Iraq Best Prices
Premium dual RJ45 Category 6 FTP network socket with 45° inclined design, toolless installation, and PoE support for high-speed connectivity in residential and commercial applications.

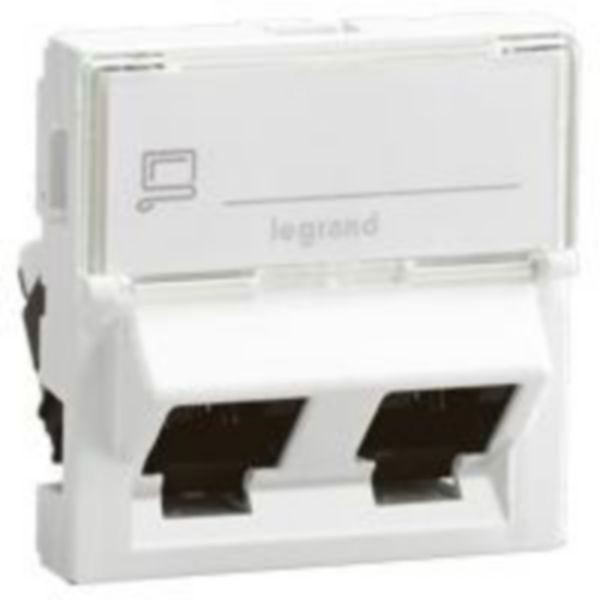

The Mosaic™ Double RJ45 Socket is a premium network connectivity solution designed for modern residential and commercial installations. This dual-module socket features Category 6 FTP (Foiled Twisted Pair) technology, enabling data transmission rates up to 1 Gigabit per second, making it ideal for high-speed internet, streaming, and online gaming applications. The socket is equipped with an innovative 45-degree inclined design that prevents cable wear and tear, extending the lifespan of your network connections. Manufactured by Legrand, a global leader in electrical and digital building infrastructure, this product combines durability with aesthetic appeal in its clean white finish.
This networking device supports advanced Power over Ethernet (PoE) applications, allowing both data and electrical power to be transmitted simultaneously through twisted pair Ethernet cabling. The socket comes with integrated toolless quick-connection technology, featuring insulation displacement connectors (IDC) that simplify installation without requiring specialized crimping tools. It includes rocker plates and support frames for flexible mounting options, compatible with standard flush-mounted boxes, duct installations, and floor box applications. The transparent protective dust cover ensures connector protection when not in use.
The Mosaic™ socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568C, guaranteeing compatibility with global networking infrastructure. Its modular slot system allows for perfect multigang configurations with adjacent support frames, eliminating the need for additional wall modifications. Suitable for both IP and analog phone systems, this product is engineered to deliver reliable performance in demanding commercial and residential environments, supporting applications requiring low latency and high-speed data transfer.
Key Features
- Category 6 FTP technology with data transmission up to 1 Gigabit per second
- Innovative 45-degree inclined outlet design prevents cable wear and extends product lifespan

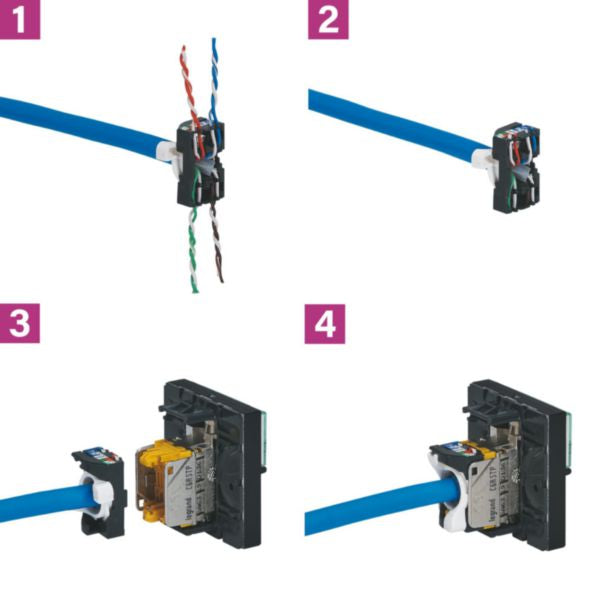

- Integrated toolless quick-connection system with insulation displacement connectors (IDC)
- Support for advanced Power over Ethernet (PoE) applications for simultaneous data and power transmission
- Modular slot system compatible with flush-mounted boxes, duct installations, and floor boxes
- Transparent protective dust cover included for connector protection
- Compliant with international standards ISO/IEC 11801, EN 50173-1, and TIA/EIA 568C
- Compatible with RJ11, RJ12, and RJ45 plugged cords
- Supplied with rocker plates and support frames for flexible installation
- Suitable for both IP and analog phone systems
Technical Specifications
| Specification |
Value |
| Product Type | Double RJ45 Network Socket |
| Category | Category 6 FTP (Foiled Twisted Pair) |
| Number of Modules | 2 modules |
| Connector Type | RJ45 8(8) with Insulation Displacement Connector (IDC) |
| Data Rate | Up to 1 Gigabit per second |
| Outlet Direction | Inclined 45 degrees |
| Color | White (RAL 9003) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 40.7 mm |
| Built-in Depth | 25.1 mm |
| Maximum Input Cable Diameter | 9 mm |
| Installation Type | Flush-mounted, Duct, Floor box compatible |
| Type of Fastening | Engage (snap) |
| Connection Type | Toolless quick connection |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Shielded Buses | No |
| Halogen Free | Yes |
| Dust Cover | Transparent protective dust cover included |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568C |
| Power over Ethernet Support | Yes, supports high-capacity PoE applications |
| Reference Number | 076506 |
| EAN Code | 3245060765064 |
| Manufacturer | Legrand |
