Shop Legrand Mosaic Double RJ45 Socket Category 5e UTP White | 76541 In Iraq Best Prices
Professional dual RJ45 Category 5e UTP socket with integrated PoE support, toolless installation, and 2500-cycle durability rating for residential and commercial network applications.

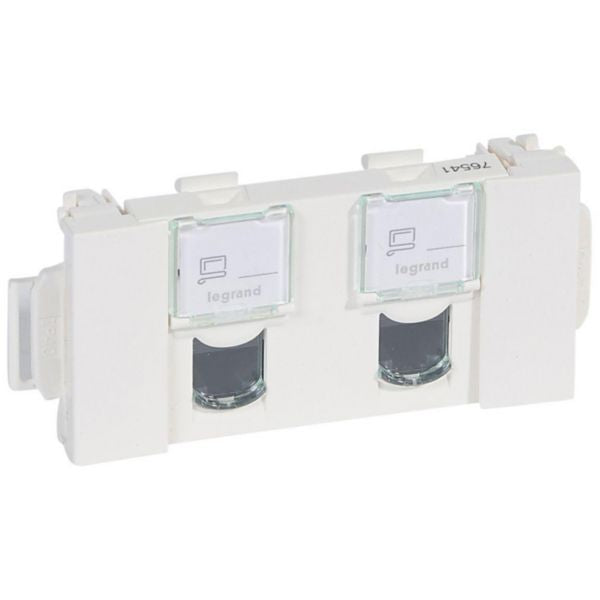

The Mosaic™ Double RJ45 Socket Category 5e UTP Soluclip is a professional-grade network connectivity solution designed for modern residential and commercial installations. This 3-module accessory features dual RJ45 connectors supporting Category 5e UTP (Unshielded Twisted Pair) technology, delivering data transmission rates up to 1 Gigabit per second. The product is engineered to support high-capacity Power over Ethernet (PoE) applications, allowing electrical power to be transmitted alongside data signals through standard twisted pair cabling.
This socket assembly incorporates advanced design features including toolless RJ45 connectors with integrated crimping technology, eliminating the need for specialized installation tools. The connectors are equipped with a locking nut system that enables easy recabling in case of errors, while the wire pairs can be spread and mounted effortlessly. Each connector features a transparent protective dust cover to shield the contact points from environmental contamination and dust particles, ensuring optimal performance and longevity.
The Mosaic Double RJ45 Socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568C specifications. With an impressive endurance rating of 2500 plug insertion/withdrawal cycles, this product demonstrates exceptional durability for high-traffic network environments. The modular slot system allows for perfect multigang configuration, enabling seamless installation in standard flush-mounting boxes without requiring additional wall modifications. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this versatile solution is ideal for home networks, office installations, and small commercial applications.
Key Features
- Dual RJ45 Category 5e UTP connectors supporting 1 Gigabit per second data transmission
- Integrated Power over Ethernet (PoE) support for simultaneous power and data delivery
- Toolless design with integrated crimping technology and locking nut system for easy installation
- Transparent protective dust cover protecting connectors from environmental contamination
- 2500 insertion/withdrawal cycle durability rating for high-traffic installations
- Modular slot system for perfect multigang configuration without additional wall modifications
- Compatible with RJ11, RJ12, and RJ45 plug-equipped cords
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568C standards
Technical Specifications
| Specification |
Value |
| Product Type | Double RJ45 Socket Category 5e UTP |
| Number of Modules | 3 modules |
| Connector Type | RJ45 8(8) with insulation displacement connector |
| Category Rating | Category 5e UTP |
| Data Transmission Rate | Up to 1 Gigabit per second |
| Number of Connectors | 2 RJ45 connectors |
| Connection Type | Insulation displacement connector with toolless integrated crimping |
| Installation Method | Flush-mounted, duct installation, or floor box mounted |
| Fastening Type | Engage (snap) fastening |
| Color | White (RAL 9003) |
| Device Width | 106.3 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Durability Rating | 2500 plug insertion/withdrawal cycles |
| Dust Cover | Yes - transparent protective cover |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Separate Strain Relief | No |
| Outlet Direction | Straight |
| Color Coding | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| PoE Support | Yes - supports high-capacity Power over Ethernet applications |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568C |
| Intended Use | Indoor use only |
| Reference Number | 076541 |
| EAN Code | 3245060765415 |
