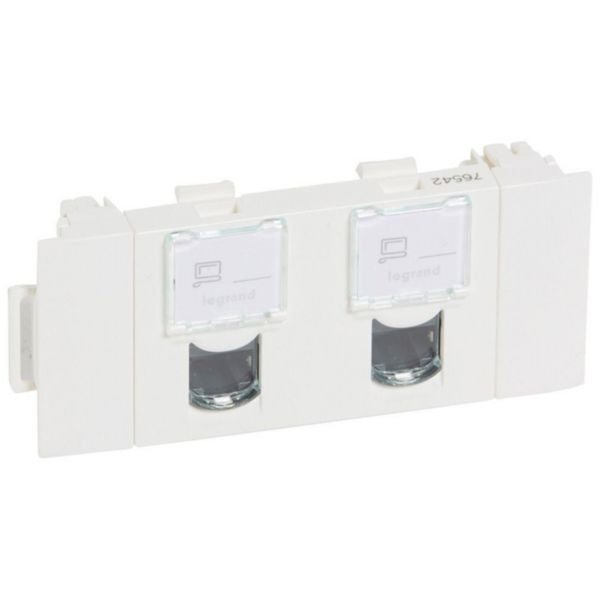

Shop Legrand Mosaic Double RJ45 Socket Category 5e FTP White 3 Modules | 76542 In Iraq Best Prices
Professional dual RJ45 socket with Category 5e FTP shielding, toolless installation, PoE support, and 2500-cycle durability for reliable network connectivity.
The Mosaic Double RJ45 Socket Category 5e FTP is a professional-grade network connectivity solution designed for modern residential and commercial installations. This dual socket module features advanced FTP (Foiled Twisted Pair) shielding technology that supports high-speed data transmission up to 1 Gigabit per second, enabling rapid file transfers and seamless network performance. The product is fully compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring reliable and standardized network connectivity.
Equipped with toolless RJ45 connectors featuring integrated crimping technology, this socket eliminates the need for specialized installation tools while maintaining professional-grade connection quality. The transparent protective dust cover shields the connectors from dust and debris, preserving connection integrity. With exceptional endurance rated at 2500 plug insertion and withdrawal cycles, this product delivers long-term reliability in demanding environments. The slot system allows perfect multigang configuration, enabling easy installation in standard flush-mounted boxes without requiring additional wall modifications or extensive cabling work.
This 3-module Mosaic accessory supports Power over Ethernet (PoE) applications, allowing simultaneous transmission of electrical power and data signals across twisted pair cabling. The white color (RAL 9003) integrates seamlessly with modern interior designs, while the halogen-free construction ensures environmental compliance and safety. With a built-in depth of 25.2mm and impact resistance rating of IK03, this socket provides robust performance suitable for residential, commercial, and hospitality applications.
Key Features
- RJ45 Cat 5e FTP connectors supporting data rates up to 1 Gigabit per second for fast downloads and seamless streaming
- Toolless design with integrated crimping technology eliminates need for specialized installation equipment
- Power over Ethernet (PoE) compatible for simultaneous power and data transmission on single twisted pair cable
- Transparent protective dust cover shields connectors from contamination and preserves connection integrity
- Exceptional endurance rated at 2500 plug insertion and withdrawal cycles for long-term reliability
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C international standards
- 3-module design with slot system allowing perfect multigang configuration and easy installation
- Halogen-free construction ensuring environmental compliance and enhanced safety
- White color (RAL 9003) seamlessly integrates with modern interior design aesthetics
- Suitable for flush-mounted, duct, and floor box installations without additional wall modifications
Technical Specifications
| Specification |
Value |
| Product Type | Double RJ45 Socket Module |
| Category | Category 5e (Cat 5e) |
| Shielding Type | FTP (Foiled Twisted Pair) |
| Data Rate | Up to 1 Gigabit per second |
| Number of Modules | 3 modules |
| Number of Connectors | 2 RJ45 8(8) connectors |
| Connector Type | RJ45 8(8) with insulation displacement connector (IDC) |
| Installation Method | Toolless with integrated crimping technology |
| Mounting Type | Flush-mounted, duct, floor box compatible |
| Device Width | 106.3 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Color | White (RAL 9003) |
| Degree of Protection | IP20 |
| Impact Resistance Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Endurance Rating | 2500 plug insertion and withdrawal cycles |
| Dust Cover | Yes, transparent protective cover included |
| Power over Ethernet (PoE) | Supported for high capacity PoE applications |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Halogen-free | Yes |
| Antimicrobial Treatment | No |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Type of Fastening | Engage (snap) |
| Outlet Direction | Straight |
| Reference Number | 076542 |
| EAN Code | 3245060765422 |
Order Legrand Mosaic Double RJ45 Socket Category 5e FTP White 3 Modules | 76542 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
