Shop Legrand Mosaic DisplayPort Socket Preterminated 1 Module White | 078791 In Iraq Best Prices
Professional Display Port socket for high-definition audio/video transmission with preterminated 15cm cord, flush-mounted design, and halogen-free construction. Ideal for modern home and building installations requiring reliable multimedia connectivity.

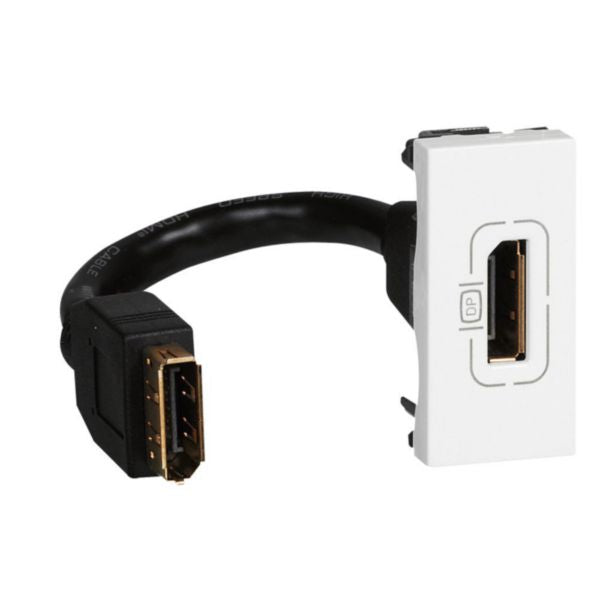

The Mosaic Display Port Socket is a professional-grade audio/video transmission device designed for modern home and building installations. This preterminated socket is specifically engineered to transmit high-definition digital audio and video streams between source devices such as laptops and computers to compatible receivers including video projectors and televisions. The socket features a single modular design with a convenient 15 cm pre-attached cord, eliminating the need for additional wiring during installation. Built with thermoplastic material in an elegant white finish, this flush-mounted device integrates seamlessly into contemporary interior designs while maintaining exceptional durability and performance standards.
The Mosaic Display Port Socket is part of the renowned Mosaic programme from Legrand, a trusted leader in electrical and digital building infrastructure. This device is specifically classified as an audio and video socket within the Mosaic mechanisms range, offering reliable connectivity for multimedia applications. The socket is equipped with a halogen-free design, making it an environmentally responsible choice for both residential and commercial installations. With its IP40 degree of protection and IK04 impact strength rating, this device provides robust protection against dust and physical damage in typical indoor environments.
Installation is straightforward with the flush-mounted design requiring a minimum built-in installation box depth of 50 mm. The device operates reliably across a wide temperature range from -5°C to 50°C, ensuring consistent performance in various climate conditions. The preterminated configuration with strain relief and direct connection capability makes this an ideal solution for professionals and homeowners seeking efficient, high-quality multimedia connectivity without compromising on aesthetics or functionality.
Key Features
- High-Definition Digital Audio/Video Transmission - Transmits premium quality multimedia streams between source devices and compatible receivers
- Preterminated Design with 15cm Cord - Factory-installed connection ready for immediate use without additional wiring requirements
- Single Module Modular Configuration - Compact 1-module design fits seamlessly into Mosaic programme switching device systems
- Halogen-Free Thermoplastic Construction - Environmentally responsible material with excellent durability and chemical resistance
- IP40 Protection and IK04 Impact Strength - Robust protection against dust ingress and physical damage in typical indoor environments
- Flush-Mounted Installation - Elegant white finish integrates with contemporary interior designs and architectural requirements
- Wide Operating Temperature Range - Reliable performance from -5°C to 50°C ensuring consistent operation in various climates
- Professional Grade Quality - Legrand engineered device meeting international standards for residential and commercial applications
Technical Specifications
| Specification |
Value |
| Product Type | Display Port Socket - Audio/Video Socket |
| Brand | Legrand Mosaic |
| Reference Number | 078791 |
| EAN Code | 3245060787912 |
| Number of Modules | 1 module |
| Preterminated Cord Length | 15 cm |
| Connector Type | Display Port |
| Material | Thermoplastic |
| Colour | White |
| Surface Finishing | Matt |
| Mounting Method | Flush-mounted |
| Outlet Direction | Straight |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Built-in Depth | 45 mm |
| Minimum Installation Box Depth | 50 mm |
| Degree of Protection (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Halogen Free | Yes |
| Support Ring | No |
| Dust Cover | No |
| Hinged Lid | No |
| Type of Fastening | Engage (Snap) |
| Shielded Housing | No |
| Antimicrobial Treatment | No |
