Description

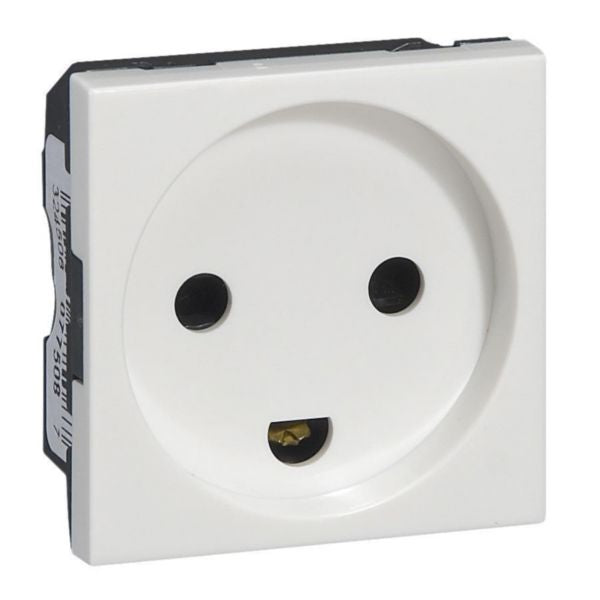

Shop Legrand Mosaic Danish Socket Outlet 2P+E with Shutters 2 Modules White | 077508 In Iraq Best Prices

Premium Danish standard socket outlet with child protection shutters, 2 modules, white finish, 13A/250V rating with push-in clamp connection and loop-through functionality

The Mosaic™ Socket Outlet Danish Standard (Type K) is a premium electrical socket designed for modern residential and commercial installations. This 2-module device features enhanced child protection with integrated shutters, ensuring safe operation in homes with children. The socket outlet complies with Danish electrical standards and integrates seamlessly into the Mosaic™ Programme mechanism range, offering a contemporary aesthetic combined with reliable functionality. This socket outlet is engineered with push-in clamp connection technology for secure and efficient wiring installation. With a nominal current rating of 13A at 250V and frequency compatibility of 50-60 Hz, it provides robust performance for standard household appliances. The white glossy finish (RAL 9003) delivers a clean, modern appearance suitable for any interior design scheme. The device features a loop-through function, allowing multiple sockets to be connected in series, and maintains an IP41 protection rating with IK04 impact strength for durability in everyday use. The socket outlet is constructed from halogen-free thermoplastic material, making it environmentally responsible and safer in case of fire. Its compact dimensions (45mm width x 45mm height x 31mm depth) ensure compatibility with standard installation frames and receptacles. The device operates reliably across a temperature range of -5°C to +35°C and is backed by comprehensive technical documentation and BIM data for professional installation and design purposes.

Key Features

Enhanced child protection with integrated safety shutters
Danish standard (Type K) electrical socket compliance
Push-in clamp connection for secure and efficient installation
Loop-through function for series connection of multiple outlets
Halogen-free thermoplastic construction for fire safety
IP41 protection rating and IK04 impact strength rating
Modern white glossy finish (RAL 9003) aesthetic
13A nominal current at 250V with 50-60Hz frequency compatibility
Compact modular design compatible with standard installation frames
Comprehensive BIM data and technical documentation included

Technical Specifications

Specification	Value
Product Type	Socket Outlet - Danish Standard (Type K)
Number of Modules	2 modules
Nominal Current	13 A
Nominal Voltage	250 V
Frequency Range	50-60 Hz
Connection Type	Push-in clamp
Number of Socket Outlets	1
Number of Active Contacts (Round)	1
Child Protection	Yes - with shutters
Protective Contact	Other
Assembly Arrangement	Modular device for domestic switching devices
Colour	White
RAL Number	9003
Material	Halogen-free thermoplastic
Surface Finishing	Glossy
Device Width	45 mm
Device Height	45 mm
Device Depth	31 mm
Built-in Depth	22.5 mm
IP Protection Rating	IP41
Impact Strength Rating	IK04
Operating Temperature Range	-5°C to +35°C
Storage Temperature Range	-10°C to +70°C
Cable Section	2.5 mm²
Cable Nature	Rigid
Voltage Type	AC
Loop-Through Function	Yes
Mounting Method	Module frame
Type of Fastening	Snap mounting (engagement)
Enhanced Contact Protection	Yes

Order Legrand Mosaic Danish Socket Outlet 2P+E with Shutters 2 Modules White | 077508 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
