Professional BNC 75 composite video socket for audio and video applications. Features 1-module design, white finish, snap-engage mounting, IP41 protection, and IK04 impact resistance for reliable performance in residential and commercial installations.

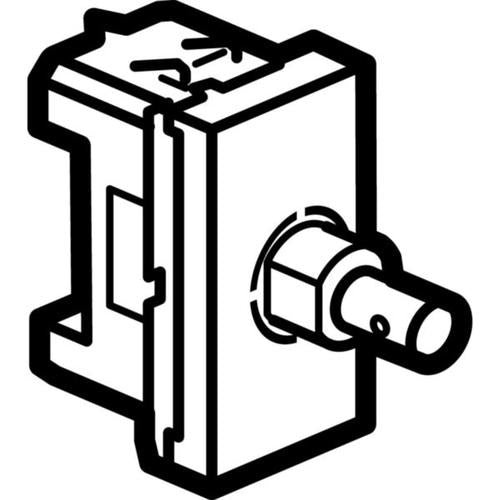

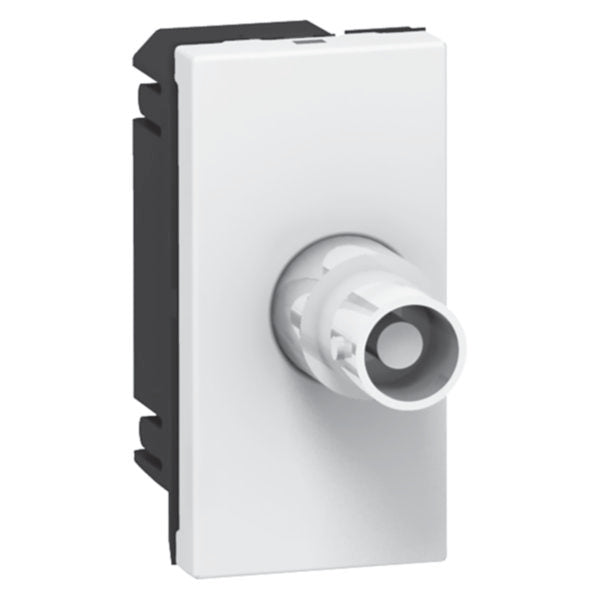

The Mosaic BNC 75 Socket is a professional-grade audio and video connector designed for seamless integration into domestic and commercial switching systems. This 1-module white socket provides a composite video link for connecting peripheral devices such as DVD drives, cameras, video recorders, and other video equipment. The BNC 75 connector is the industry standard for composite video transmission, ensuring reliable signal quality and compatibility with a wide range of audiovisual equipment.
This modular device features a snap-engage mounting system that allows for quick and easy installation into standard flush-mounted boxes and distribution panels. The thermoplastic construction with a matt white finish provides durability and aesthetic appeal, blending seamlessly with modern interior designs. With an IP41 protection rating and IK04 impact resistance, this socket is built to withstand everyday use in residential and small commercial environments.
The BNC 75 socket operates reliably across a temperature range of -5°C to 50°C, making it suitable for various installation environments. Its compact design with a device width of 22.5mm and height of 45mm ensures it fits perfectly within the Mosaic programme ecosystem. The socket is compatible with standard 40mm minimum built-in installation boxes and features a built-in depth of 23.8mm for optimal installation flexibility.
Key Features
- BNC 75 composite video connector for DVD, camera, and video recorder connectivity
- 1-module modular design with snap-engage mounting system for easy installation
- White thermoplastic construction with matt finish for aesthetic appeal
- IP41 protection rating and IK04 impact resistance for durability
- Operating temperature range -5°C to 50°C for versatile installation environments
- Compact dimensions: 22.5mm width x 45mm height with 23.8mm built-in depth
- Compatible with standard 40mm minimum flush-mounted installation boxes
- Straight outlet direction for optimal cable management
- Part of the Mosaic programme for seamless integration with other devices
Technical Specifications
| Specification |
Value |
| Product Type | BNC 75 Female Socket - Audio/Video Connector |
| Module Count | 1 module |
| Color | White |
| Material | Thermoplastic (Plastic) |
| Surface Finish | Matt |
| Mounting Method | Surface mounted with snap-engage fastening |
| Outlet Direction | Straight |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Built-in Depth | 23.8 mm |
| Minimum Installation Box Depth | 40 mm |
| Number of Connectors | 1 |
| IP Protection Rating | IP41 |
| Impact Resistance Rating | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Connector Type | BNC/TNC |
| Dust Cover | No |
| Hinged Lid | No |
| Shielded Housing | No |
| Antimicrobial Treatment | No |
| Programme | Mosaic |
| SKU | 078758 |
| EAN Code | 3245060787585 |
