Shop Legrand Mosaic 4x2P+E Socket Outlet Trunking Installation | 077604 In Iraq Best Prices
Professional Legrand Mosaic 4x2P+E socket outlet for DLP trunking installation with enhanced contact protection, 16A/250V rating, halogen-free thermoplastic construction, and international certifications.

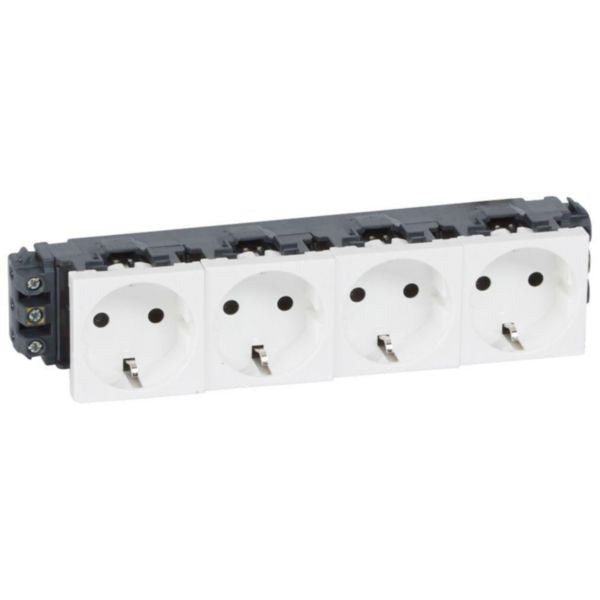

The Legrand Mosaic Socket Outlet REF. 077604 is a premium modular socket solution designed for professional installation on DLP trunking systems. This white socket outlet features four 2P+E CEE 7/3 (type F) protective contact sockets, making it ideal for German standard applications. The device offers direct connection requiring no tools and intuitive disconnection without dismantling supports, ensuring efficient installation and maintenance.
This socket outlet is manufactured from high-quality thermoplastic material and is halogen-free, meeting stringent safety and environmental standards. With a nominal current rating of 16A at 250V and frequency compatibility of 50-60 Hz, it provides reliable power distribution for residential and commercial applications. The enhanced contact protection feature ensures safe operation, while the IP20 degree of protection and IK04 impact strength rating make it suitable for standard indoor environments.
The Mosaic socket outlet features screw terminals for secure cable connections, supporting flexible or rigid cables with cross-sections of 4-4 mm². Its compact dimensions of 210mm width, 45mm height, and 45mm depth make it perfect for space-constrained installations. The device includes a loop-through function for daisy-chain connectivity, and it has been certified by multiple international standards bodies including NEMKO, VDE, and AENOR, ensuring compliance with European regulations.
Key Features
- Four 2P+E CEE 7/3 (Type F) protective contact sockets for reliable power distribution
- Enhanced contact protection system for safe and secure electrical connections
- Direct tool-free connection with intuitive disconnection without dismantling supports
- Halogen-free thermoplastic material meeting stringent safety and environmental standards
- 16A/250V nominal rating with 50-60 Hz frequency compatibility for global applications
- Loop-through function enabling daisy-chain connectivity for extended installations
- Compact dimensions (210x45x45mm) suitable for space-constrained environments
- IP20 degree of protection and IK04 impact strength rating for standard indoor use
- Screw terminals supporting 4-4mm² flexible or rigid cable connections
- Multiple international certifications including NEMKO, VDE, and AENOR compliance
Technical Specifications
| Specification |
Value |
| Product Reference | 077604 |
| EAN Code | 3245060776046 |
| Brand | Legrand |
| Product Line | Mosaic Programme |
| Socket Type | CEE 7/3 (Type F) Protective Contact |
| Number of Sockets | 4 |
| Number of Modules | 8 |
| Number of Active Contacts | 8 (round) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Connection Type | Screw Terminal |
| Cable Section | 4-4 mm² |
| Cable Type | Flexible or Rigid |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Colour | White |
| RAL Number | 9003 |
| Device Width | 210 mm |
| Device Height | 45 mm |
| Device Depth | 45 mm |
| Built-in Depth | 45 mm |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to +35 °C |
| Storage Temperature Range | -10 to +70 °C |
| Mounting Method | Wall Duct |
| Fastening Type | Snap Mounting (Engagement) |
| Assembly Arrangement | Modular Device for Domestic Switching Devices |
| With Loop Through Function | Yes |
| Enhanced Contact Protection | Yes |
| With Hinged Lid | No |
| With Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Number of Phases | 1 |
| Concurrently Switching Neutral | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| International Certifications | NEMKO, VDE, AENOR, OC/CB |
