Description

Shop Legrand Mosaic 4x2P+E Socket Outlet German Standard DLP Trunking Red | 077614 In Iraq Best Prices

Premium Mosaic 4x2P+E modular socket outlet with red finish for DLP trunking systems. Features screw terminals, enhanced contact protection, and German standard compliance with 16A/250V rating.

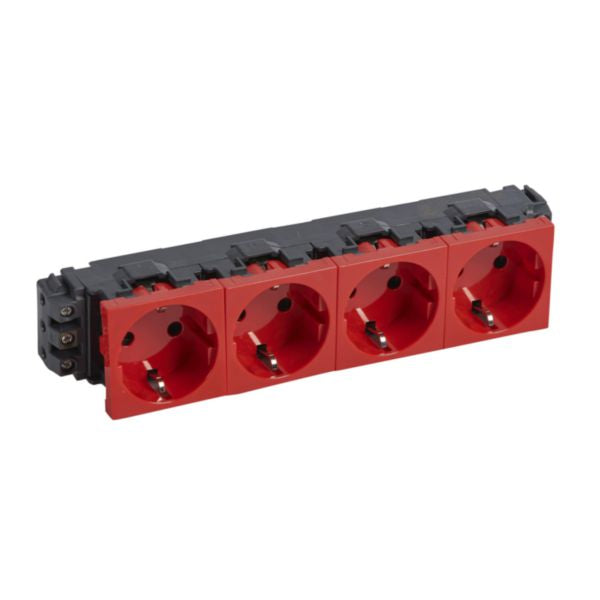

The Mosaic™ 4x2P+E Socket Outlet is a premium modular socket solution designed for installation on DLP trunking systems following German standards. This red-colored socket outlet features four 2P+E protective contact outlets (CEE 7/3 type F) with enhanced contact protection and shutters, providing safe and reliable power distribution. The socket is equipped with screw terminals for secure cable connections and supports flexible or rigid cables ranging from 4-4 mm² cross-section. This modular device is specifically engineered for use with 65 and 85 mm cover DLP trunking systems, utilizing snap mounting engagement for quick and secure installation without requiring tools. The socket outlet operates at 250V nominal voltage with a 16A nominal current rating and is suitable for 50-60 Hz frequency applications. With its IP20 degree of protection and IK04 impact strength rating, this socket ensures durability and safety in various installation environments. The Mosaic™ socket outlet features a loop-through function for daisy-chain connectivity, making it ideal for complex electrical installations. The thermoplastic construction is halogen-free, meeting modern environmental and safety standards. Its glossy red finish (RAL 3020) provides excellent visibility and aesthetic appeal in professional installations. The device operates reliably within temperature ranges of -5 to 35°C during operation and -10 to 70°C during storage, making it suitable for diverse climate conditions.

Key Features

Four 2P+E protective contact outlets (CEE 7/3 type F) with enhanced contact protection and shutters
Designed for installation on 65 and 85 mm DLP trunking systems with snap mounting engagement
Screw terminals supporting flexible or rigid cables from 4-4 mm² cross-section
Loop-through function for daisy-chain connectivity in complex electrical installations
Halogen-free thermoplastic construction with glossy red finish (RAL 3020) for safety and visibility
Rated for 16A nominal current at 250V nominal voltage with 50-60 Hz frequency compatibility
IP20 degree of protection and IK04 impact strength rating for durability
Operating temperature range -5 to 35°C with storage capability -10 to 70°C

Technical Specifications

Specification	Value
Product Type	Modular Socket Outlet for DLP Trunking
Number of Outlets	4 x 2P+E (2 Phase + Earth)
Socket Standard	CEE 7/3 Type F (German Standard)
Nominal Voltage	250V AC
Nominal Current	16A
Frequency	50-60 Hz
Connection Type	Screw Terminals
Cable Support	Flexible or Rigid 4-4 mm²
Installation Method	Wall Duct / DLP Trunking (65-85 mm)
Mounting Type	Snap Mounting Engagement
Material	Halogen-Free Thermoplastic
Colour	Red (RAL 3020)
Surface Finish	Glossy
Degree of Protection	IP20
Impact Strength Rating	IK04
Device Dimensions	210 mm (width) x 45 mm (height) x 45 mm (depth)
Built-in Depth	45 mm
Operating Temperature	-5°C to +35°C
Storage Temperature	-10°C to +70°C
Contact Protection	Enhanced with Shutters
Loop-Through Function	Yes
Number of Modules	8 Module System
Protective Contact Type	Other
Number of Active Contacts	8 (Round)
Reference Number	077614
EAN Code	3245060776145

Order Legrand Mosaic 4x2P+E Socket Outlet German Standard DLP Trunking Red | 077614 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
