Shop Legrand Mosaic Triple Schuko Socket 3x2P+E Direct Clip Black Matt | 077233L In Iraq Best Prices
Premium modular triple Schuko socket outlet with black matte finish, enhanced contact protection, and loop-through functionality. Rated 16A/250V, IP40 protection, ideal for residential and commercial applications.

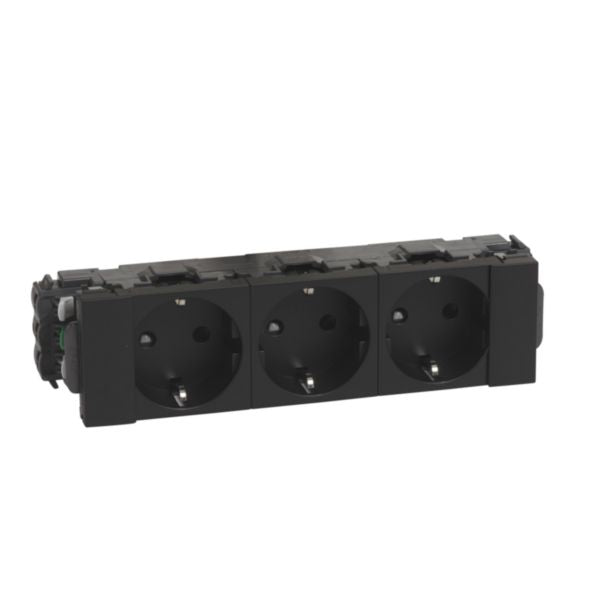

The Mosaic™ 3x2p+E Direct Clip Schuko Standard Black Mat (REF. 077233L) is a premium modular socket outlet designed for modern residential and commercial installations. This triple socket outlet combines three 2p+E Schuko (CEE 7/3 Type F) outlets in a single 6-module unit, offering exceptional convenience and space efficiency. With its sleek black matte finish, it seamlessly integrates into contemporary interior designs while maintaining professional aesthetics.
This socket outlet features advanced safety characteristics including enhanced contact protection and a push-in clamp connection type for secure and reliable electrical connections. The halogen-free thermoplastic material ensures environmental compliance and fire safety standards. Rated at 16A/250V with 50-60 Hz frequency compatibility, it provides robust performance for standard household and light commercial applications. The device measures 180mm width × 45mm height × 48mm depth, making it an ideal solution for wall duct installations.
The Mosaic™ range represents Legrand's commitment to quality and innovation in wiring devices. With its loop-through functionality, multiple outlets, and modular design, this socket outlet allows for flexible installation configurations. The product complies with IP40 protection rating and IK04 impact strength standards, ensuring durability in various environmental conditions. Operating temperature range of -5 to 35°C makes it suitable for diverse climate zones, while the prewired terminals accommodate 2.5mm² cables for optimal connectivity.
Key Features
- Triple 2p+E Schuko (CEE 7/3 Type F) socket outlets in single 6-module unit
- Enhanced contact protection with push-in clamp connection technology
- Halogen-free thermoplastic material for environmental and fire safety compliance
- Loop-through functionality enabling flexible installation configurations
- Sleek black matte finish for modern aesthetic integration
- Rated 16A/250V with 50-60 Hz frequency compatibility
- IP40 protection rating and IK04 impact strength standard
- Operating temperature range -5 to 35°C for diverse climate zones
- Prewired terminals accommodating 2.5mm² cable capacity
- Modular design for wall duct mounting installations
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic™ 3x2p+E Direct Clip Schuko Standard Black Mat |
| Reference Number | 077233L |
| EAN Code | 3414971982345 |
| Socket Type | Schuko CEE 7/3 Type F with protective contact |
| Number of Socket Outlets | 3 outlets |
| Module Count | 6 modules |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Connection Type | Push-in clamp |
| Material | Halogen-free thermoplastic |
| Color | Black matte |
| Device Width | 180 mm |
| Device Height | 45 mm |
| Device Depth | 48 mm |
| Built-in Depth | 38 mm |
| IP Protection Rating | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Terminal Capacity | 2.5 mm² |
| Cable Type | Rigid |
| Contact Protection | Enhanced contact protection - Yes |
| Loop Through Function | Yes |
| Mounting Method | Wall duct |
| Fastening Type | Snap mounting (engagement) |
| Prewired | Yes |
| Voltage Type | AC |
| Brand | Legrand |
| Product Range | Mosaic™ |
