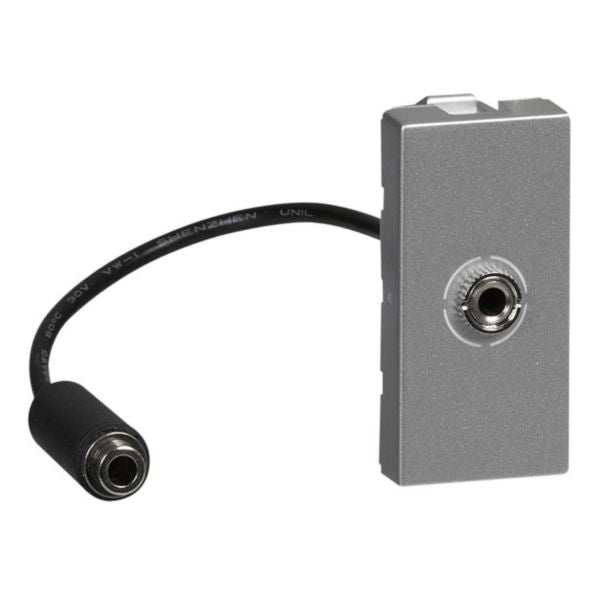

Shop Legrand Mosaic 3.5mm Jack Socket Preterminated 1 Module Aluminium | 079379 In Iraq Best Prices
Professional 3.5mm Jack audio/video socket with preterminated 15cm cord, halogen-free thermoplastic construction, IP40 rated, and sleek aluminium finish for seamless Mosaic programme integration.
The Mosaic 3.5mm Jack socket is a professional-grade audio/video connection device designed for modern residential and commercial installations. This preterminated socket features a ready-to-use 15cm cord, eliminating the need for field termination and ensuring reliable connections. The socket is manufactured from high-quality thermoplastic material with a sleek aluminium finish, providing both durability and aesthetic appeal. It is fully compliant with IP40 protection standards and IK04 impact resistance ratings, making it suitable for standard indoor applications.
This modular device integrates seamlessly into the Mosaic programme, a comprehensive range of domestic switching devices. The socket is engineered for flush-mounted installation with a built-in depth of 19mm, fitting standard European installation boxes with a minimum depth of 40mm. The halogen-free construction ensures environmental safety and compliance with modern building regulations. The straight outlet direction and snap-engage fastening method provide straightforward installation and secure mounting.
With a compact design measuring 22.5mm width and 45mm height, this 3.5mm Jack socket accommodates single connector applications. The device operates reliably across a wide temperature range from -5°C to 50°C, ensuring consistent performance in various climate conditions. The matt aluminium surface finish resists fingerprints and maintains its appearance over time, making it ideal for high-traffic areas and demanding residential environments.
Key Features
- Preterminated design with 15cm ready-to-use cord eliminates field termination requirements
- IP40 protection rating suitable for standard indoor residential and commercial applications
- IK04 impact resistance ensures durability in high-traffic areas
- Halogen-free thermoplastic construction complies with modern environmental regulations
- Seamless integration with Mosaic programme domestic switching devices range
- Sleek matt aluminium finish resists fingerprints and maintains aesthetic appeal
- Snap-engage fastening method provides quick and secure installation
- Compact modular design fits standard European flush-mounted installation boxes
- Wide operating temperature range -5°C to 50°C ensures reliable performance
- Single module configuration suitable for individual audio/video connectivity needs
Technical Specifications
| Specification |
Value |
| Product Reference | 079379 |
| EAN Code | 3245060793791 |
| Brand | Legrand |
| Product Line | Mosaic |
| Socket Type | 3.5mm Jack Socket |
| Connector Type | 1 x 3.5mm Jack |
| Cord Length | 15 cm |
| Preterminated | Yes |
| Material | Thermoplastic |
| Material Quality | High-grade thermoplastic |
| Colour | Aluminium |
| Surface Finish | Matt |
| Halogen Free | Yes |
| IP Protection Rating | IP40 |
| Impact Resistance (IK) | IK04 |
| Number of Modules | 1 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 35 mm |
| Built-in Depth | 19 mm |
| Minimum Installation Box Depth | 40 mm |
| Mounting Method | Flush-mounted |
| Fastening Type | Snap-engage |
| Outlet Direction | Straight |
| Support Ring | No |
| Dust Cover | No |
| Hinged Lid | No |
| Strain Relief | No |
| Shielded Housing | No |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Antimicrobial Treatment | No |
| Imprintable Label | Without indication field |
| Assembly Type | Modular device for domestic switching devices |
| Application | Audio/Video connectivity |
