Shop Legrand Mosaic Double Schuko Socket 2x2P+E Direct Clip Black Matt | 077232L In Iraq Best Prices
Premium dual Schuko socket outlet with black matte finish, 16A 250V rating, push-in clamp connection, enhanced contact protection, and halogen-free construction for modern European installations.

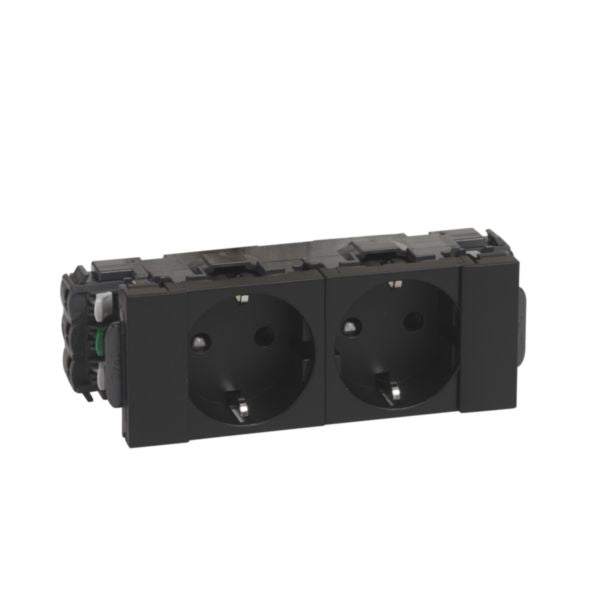

The Mosaic™ 2x2p+E Direct Clip Schuko Standard Black Mat socket outlet is a premium modular wiring device designed for residential and commercial applications. This dual socket outlet features two CEE 7/3 (Type F) Schuko socket outlets in a sleek black matte finish, providing a modern aesthetic while maintaining exceptional functionality. The socket is rated at 16A 250V with 50-60Hz frequency compatibility, making it suitable for standard European electrical installations.
This modular device is engineered with push-in clamp connection technology for secure and reliable electrical connections. The socket incorporates enhanced contact protection and features halogen-free thermoplastic material construction, ensuring safety and environmental compliance. With its snap mounting system and wall duct installation capability, this socket integrates seamlessly into the Mosaic range of wiring devices. The device operates reliably across a temperature range of -5 to 35°C and features loop-through functionality for convenient daisy-chaining installations.
Designed to IP40 protection standards and IK04 impact strength rating, the Mosaic socket outlet delivers durability and protection against dust and accidental contact. The device dimensions measure 135mm width x 45mm height x 48mm depth, making it compatible with standard European wall installations. Terminal marking indication and prewired configuration ensure quick and straightforward installation, while the 2.5mm² terminal capacity accommodates standard residential wiring requirements.
Key Features
- Dual CEE 7/3 (Type F) Schuko socket outlets for standard European applications
- 16A 250V nominal rating with 50-60Hz frequency compatibility
- Push-in clamp connection technology for secure and reliable electrical connections
- Enhanced contact protection and halogen-free thermoplastic material construction
- Snap mounting system with wall duct installation capability and loop-through functionality
- IP40 protection rating and IK04 impact strength for durability
- Black matte finish with modern aesthetic design
- Temperature operating range from -5 to 35°C for reliable performance
- 2.5mm² terminal capacity for standard residential wiring
- Modular design compatible with Mosaic wiring device range
Technical Specifications
| Specification |
Value |
| Product Type | Modular Socket Outlet with Protective Contact |
| Socket Configuration | 2x CEE 7/3 (Type F) Schuko Sockets |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Push-in Clamp |
| Number of Modules | 4 modules |
| Material | Halogen-free Thermoplastic |
| Surface Finish | Black Matte |
| Mounting Method | Snap Mounting (Wall Duct) |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Device Width | 135 mm |
| Device Height | 45 mm |
| Device Depth | 48 mm |
| Built-in Depth | 38 mm |
| Operating Temperature Range | -5 to 35 °C |
| Storage Temperature Range | -10 to 70 °C |
| Terminal Capacity | 2.5 mm² |
| Contact Protection | Enhanced Contact Protection |
| Loop Through Function | Yes |
| Hinged Lid | No |
| Voltage Type | AC |
| Prewired | Yes |
| Reference Number | 077232L |
| EAN Code | 3414971982314 |
Order Legrand Mosaic Double Schuko Socket 2x2P+E Direct Clip Black Matt | 077232L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
