Description

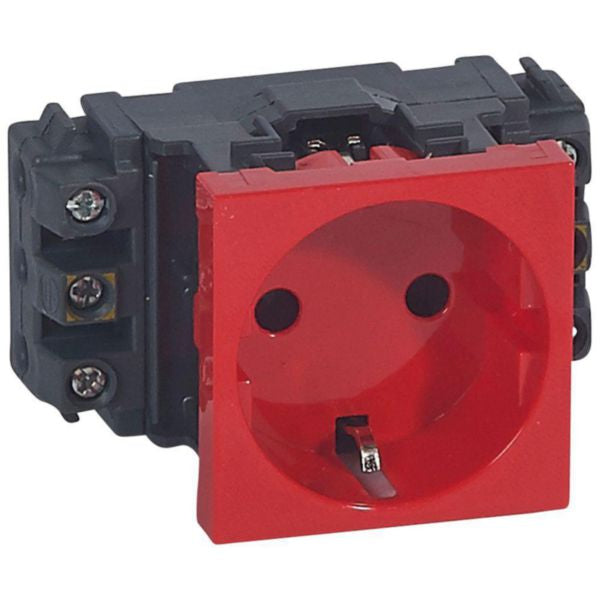

Shop Legrand Mosaic 2P+E Socket Outlet German Standard DLP Trunking Red | 077611 In Iraq Best Prices

Professional Mosaic 2P+E power outlet for DLP trunking systems with German standard compliance, 16A/250V rating, screw terminals, and enhanced safety features for reliable electrical distribution.
The Mosaic™ 2P+E socket outlet is a premium power distribution solution designed specifically for installation on DLP trunking systems. This German standard compliant socket outlet features a protective contact CEE 7/3 (type F) configuration, making it ideal for European electrical installations. The socket is engineered with enhanced contact protection and includes connection points on both sides for seamless mounting on 65 and 85 mm cover DLP trunking systems. This professional-grade outlet combines functionality with ease of installation through its direct connection system requiring no additional tools. The intuitive design allows for effortless disconnection without dismantling the support structures, featuring screw terminals for secure wire connections. The red color (RAL 3020) clearly identifies this as an additional safety power supply socket, distinguishing it from standard outlet configurations and enhancing workplace safety awareness. With a nominal rating of 16A at 250V, this Mosaic socket outlet delivers reliable performance for various electrical applications. The device features halogen-free thermoplastic material construction, ensuring environmental compliance and safety standards. The IP20 degree of protection and IK04 impact strength rating make it suitable for indoor environments, while the loop-through function enables flexible circuit configurations for professional electrical installations.

Key Features

  • German standard CEE 7/3 (type F) protective contact socket configuration
  • Direct connection system requiring no tools with intuitive disconnection design
  • Dual-sided connection points compatible with 65 and 85 mm DLP trunking covers
  • Screw terminals for secure and flexible wire connections up to 4 mm² cable section
  • Enhanced contact protection with halogen-free thermoplastic construction
  • Red color (RAL 3020) identifies additional safety power supply functionality
  • Loop-through function enables flexible circuit configurations
  • 16A/250V nominal rating with 50-60 Hz frequency compatibility
  • IP20 degree of protection suitable for indoor installations
  • IK04 impact strength rating for durability in professional environments

Technical Specifications

Specification Value
ModelSocket outlet with protective contact CEE 7/3 (type F)
Nominal Current16 A
Nominal Voltage250 V
Frequency50-60 Hz
Number of Phases1
Number of Socket Outlets1
Number of Modules2
Connection TypeScrew terminals
Cable Section Range4-4 mm²
MaterialHalogen-free thermoplastic
ColorRed (RAL 3020)
Device Width72 mm
Device Height45 mm
Device Depth45 mm
Built-in Depth45 mm
Degree of Protection (IP)IP20
Degree of Impact Strength (IK)IK04
Operating Temperature Range-5 to +35 °C
Storage Temperature Range-10 to +70 °C
Contact ProtectionEnhanced contact protection with shutters
Mounting MethodWall duct (DLP trunking)
Type of FasteningSnap mounting (engagement)
Loop Through FunctionYes
Insulated MountingYes
Voltage TypeAC
Reference Number077611
EAN Code3245060776114

Order Legrand Mosaic 2P+E Socket Outlet German Standard DLP Trunking Red | 077611 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
