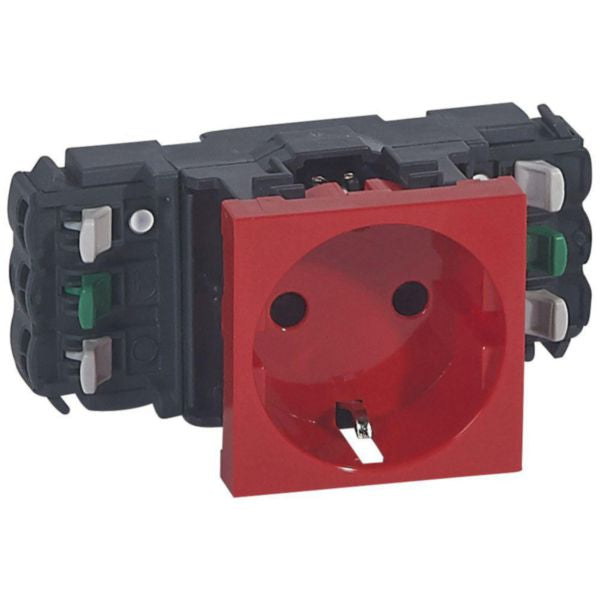

Shop Legrand Mosaic Socket 2P+E German Standard Trunking Red | 077411 In Iraq Best Prices

Professional Mosaic 2P+E socket outlet for DLP trunking with automatic push-in terminals, German standard, red color for safety power supply applications, 16A/250V rated capacity.

The Mosaic™ 2P+E socket outlet is a professional-grade electrical socket designed for installation on DLP trunking systems, conforming to German electrical standards. This socket features a protective contact CEE 7/3 (Type F) configuration with automatic push-in clamp terminals that enable direct connection without requiring tools. The red color indicates additional safety power supply designation, making it ideal for emergency and backup power applications. This modular socket outlet is specifically engineered for use with 65mm and 85mm cover DLP trunking systems. It incorporates enhanced contact protection with shutters and supports loop-through functionality for daisy-chain installation. The socket maintains a rated current of 16A at 250V (50-60 Hz), making it suitable for standard European electrical loads. The automatic terminals provide intuitive disconnection without dismantling the support structure, simplifying installation and maintenance procedures. Constructed from halogen-free thermoplastic material, the Mosaic socket meets modern safety and environmental standards. It features an IP40 degree of protection and IK04 impact strength rating, ensuring reliable performance in commercial and industrial environments. The device dimensions of 90mm width × 45mm height × 44mm depth allow for compact integration into trunking systems while maintaining accessibility for user connections.

Key Features

Automatic push-in clamp terminals for tool-free direct connection
Enhanced contact protection with integrated shutters for safety
Compatible with 65mm and 85mm DLP trunking cover systems
Loop-through functionality for daisy-chain installation capability
Halogen-free thermoplastic construction meeting environmental standards
IP40 protection degree and IK04 impact strength rating
Red color designation for emergency and backup power applications
CEE 7/3 (Type F) protective contact configuration per German standards
Intuitive disconnection without dismantling support structure
16A/250V rated capacity for standard European electrical loads

Technical Specifications

Specification	Value
Product Type	Socket outlet with protective contact CEE 7/3 (Type F)
Model Reference	REF. 077411
EAN Code	3245060774110
Brand	Legrand
Product Line	Mosaic™
Nominal Current	16 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Number of Phases	1
Number of Active Contacts	2 (round contacts)
Number of Modules	2
Connection Type	Push-in clamp (automatic terminals)
Device Width	90 mm
Device Height	45 mm
Device Depth	44 mm
Built-in Depth	44 mm
Color	Red
RAL Number (Similar)	3020
Material	Thermoplastic
Halogen Free	Yes
Surface Finishing	Glossy
IP Protection Degree	IP40
Impact Strength Degree	IK04
Operating Temperature Range	-5°C to +35°C
Storage Temperature Range	-10°C to +70°C
Cable Section	2.5-2.5 mm²
Cable Nature	Rigid
Voltage Type	AC
Mounting Method	Wall duct (DLP trunking)
Type of Fastening	Snap mounting (engagement)
Enhanced Contact Protection	Yes (with shutters)
Loop Through Function	Yes
Concurrently Switching Neutral	No
With Hinged Lid	No
Lockable	No
Eject Mechanism	No
Insulated Mounting	Yes
Function Lighting	No
Orientation Lighting	No
Overvoltage Protection	No
Fault Current Protection	No
With Miniature Fuse	No
Special Power Supply	Additional safety power supply (red)
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
Power Delivery	No
Connected Object	No
Assembly Arrangement	Modular device for domestic switching devices
Standard Compliance	German Standard (CEE 7/3)
Installation Application	DLP trunking systems (65mm and 85mm covers)

Order Legrand Mosaic Socket 2P+E German Standard Trunking Red | 077411 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
