Description

Shop Legrand Mosaic Dual USB Type-C Charger 2 Modules 3A 15W Matt Black | 079190L In Iraq Best Prices

Premium dual USB-C charging module with 3A output and 15W power delivery, featuring matte black finish and flush-mounted installation for modern residential and commercial applications.

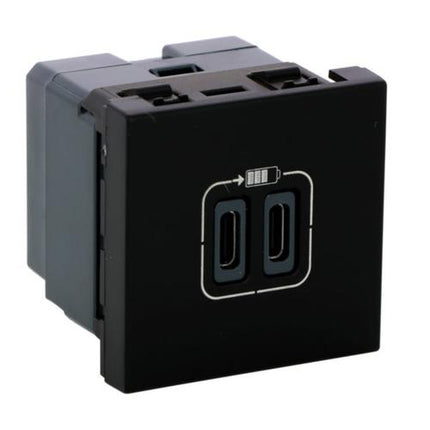

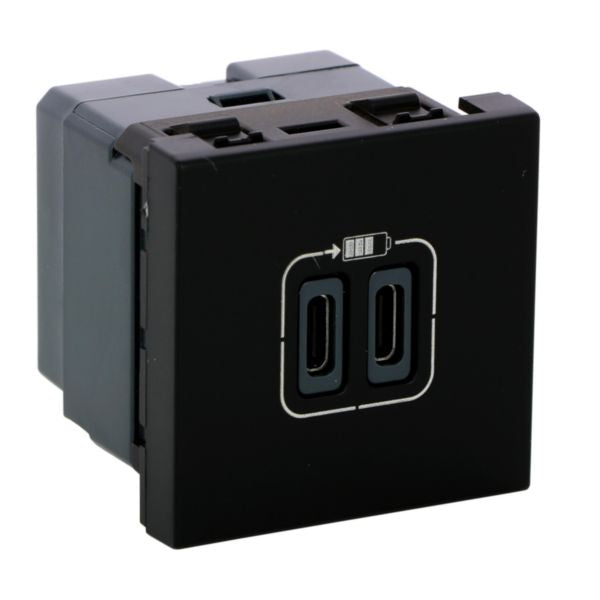

The Mosaic 2 USB Charger is a modern and sleek dual USB-C charging solution designed for contemporary home and building applications. This 2-module flush-mounted device features two USB-C ports capable of delivering 3A at 15W total output power, making it ideal for charging smartphones, tablets, and other USB-C compatible devices simultaneously. The matte black finish provides a sophisticated aesthetic that complements any interior design scheme while maintaining a low-profile installation with a built-in depth of just 33mm. This USB charger operates on standard AC voltage (100-240V, 50-60Hz) and incorporates advanced safety features including halogen-free construction and robust impact resistance rated at IK04. The device is equipped with secure screwed terminal connections compatible with flexible or rigid cables ranging from 1.5-2.5mm² cross-section. With an IP40 protection rating, it ensures reliable performance in residential and small commercial environments. The Mosaic range represents Legrand's commitment to combining functionality with elegant design, offering installers and end-users a premium charging solution that integrates seamlessly into modern electrical installations. The technical specifications include a compact form factor with dimensions of 45mm width and height, making it suitable for standard flush-mounted installation boxes with a minimum depth of 40mm. Operating temperature range of 5-40°C ensures reliable performance in various climates, while the storage temperature range of -20-70°C demonstrates durability during transport and storage. This product is part of Legrand's comprehensive Mosaic wiring device range, which offers consistent design language across multiple electrical accessories and components.

Key Features

Dual USB-C ports for simultaneous charging of two devices
15W total output power with 3A maximum current delivery
Matte black finish with sophisticated modern aesthetic design
Compact 2-module flush-mounted installation with 33mm built-in depth
Universal AC voltage compatibility (100-240V, 50-60Hz)
Halogen-free construction for enhanced environmental safety
IP40 protection rating for reliable residential and commercial use
IK04 impact resistance for durability and longevity
Secure screwed terminal connections for safe wiring
Wide operating temperature range (5-40°C) for climate versatility

Technical Specifications

Specification	Value
Product Range	Mosaic
Number of Modules	2
USB Port Configuration	2x USB-C ports
Maximum Output Current	3000 mA (3A)
Output Power	15W
Output Voltage	5V
Operating Voltage	100-240V AC
Frequency	50-60 Hz
Power Consumption	0.064W
Connection Type	Screwed terminal
Number of Terminals	2
Terminal Capacity	1.5-2.5 mm²
Cable Type	Flexible or rigid
Cable Section	1.5-2.5 mm²
Mounting Method	Flush-mounted
Built-in Depth	33 mm
Minimum Box Depth	40 mm
Device Width	45 mm
Device Height	45 mm
Device Depth	42 mm
Color	Matte Black
IP Protection Rating	IP40
Impact Strength Rating	IK04
Operating Temperature Range	5-40°C
Storage Temperature Range	-20-70°C
Supply Current	0.5A
Voltage Type	AC
Halogen Free	Yes
Antimicrobial Treatment	No
Wireless Capability	No
Power Delivery Support	No
Terminal Marking	Yes
Mandatory Neutral	Yes
Stress Test Conformity (1000V)	No
Reference Number	079190L
EAN Code	3414972058834
Manufacturer	Legrand

Order Legrand Mosaic Dual USB Type-C Charger 2 Modules 3A 15W Matt Black | 079190L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
