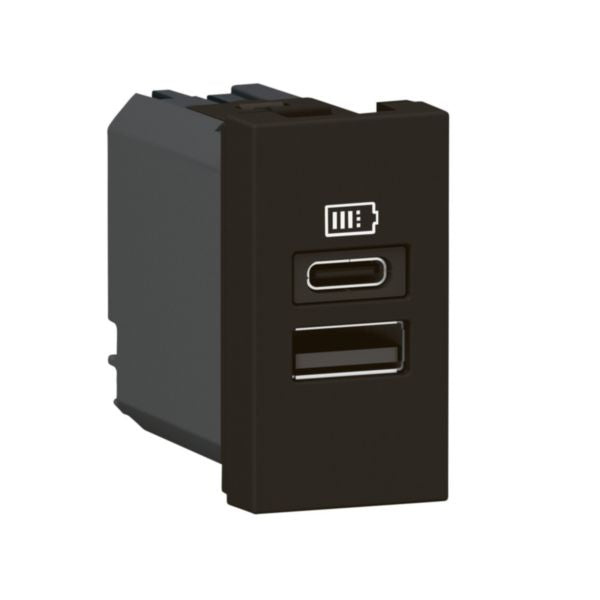

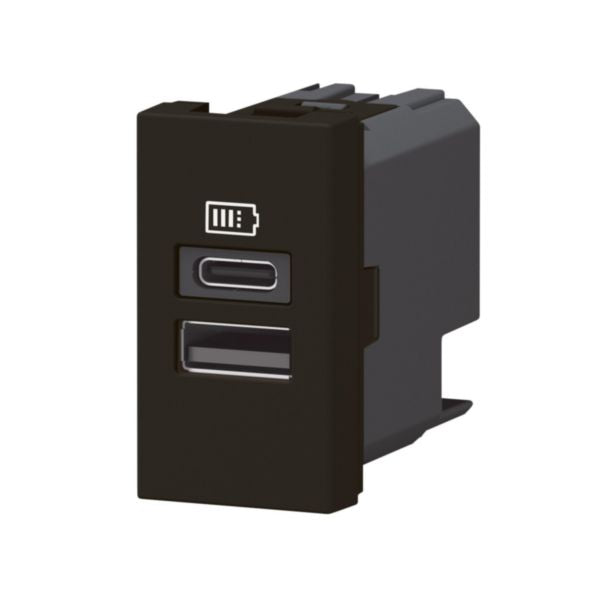

Shop Legrand Mosaic USB Socket 1 Module Dual Port A+C 3A 15W Black | 077672L In Iraq Best Prices
Compact 1-module USB socket with dual ports (A+C) delivering 3A/15W power for simultaneous charging of multiple portable devices. Features energy-efficient design, IP40 protection, and complies with IEC 62684:2018 standards.
The Mosaic™ 1 Module USB socket with dual ports (A+C) is a premium charging solution designed for modern portable devices. This compact single-module device delivers reliable power with 3A output capacity and 15W total power delivery, making it ideal for simultaneously charging smartphones, tablets, and power banks. The socket features a sleek black finish that complements contemporary interior designs while maintaining the professional aesthetic of the Mosaic™ range.
This USB charging socket is engineered for optimal performance and safety, conforming to IEC 62684:2018 standards for USB power delivery. The device incorporates advanced power management with minimal standby consumption of just 0.1W, ensuring energy efficiency. With dual USB ports (one Type-A and one Type-C), users can charge multiple devices simultaneously without requiring additional adapters or external power supplies. The quick and easy connection system with screwed terminals accommodates flexible or rigid cables with cross-sections from 1.5 to 2.5 mm².
The Mosaic™ USB socket is specifically designed for indoor residential and commercial applications, offering IP40 protection rating and IK04 impact resistance. Its compact 1-module format provides space efficiency in tight installation environments, while the flush-mounted design ensures a seamless integration into any wall installation. The halogen-free construction meets environmental standards, and the device operates reliably across a wide temperature range from 5°C to 35°C during normal operation.
Key Features
- Dual USB ports (Type-A and Type-C) for simultaneous charging of multiple devices
- 3A output capacity with 15W total power delivery for fast and reliable charging
- Minimal standby power consumption of 0.1W for energy efficiency
- Compact 1-module design for space-saving installation in residential and commercial applications
- IEC 62684:2018 compliant with IP40 protection rating and IK04 impact resistance
- Halogen-free construction meeting environmental sustainability standards
- Quick and easy screwed terminal connection for flexible or rigid cables (1.5-2.5 mm²)
- Sleek black finish (RAL 7015) compatible with modern interior designs
- Wide operating temperature range from 5°C to 35°C for reliable performance
- Suitable for indoor use with flush-mounted installation method
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic™ 1 Module USB Two Ports A+C |
| Reference Number | 077672L |
| EAN Code | 3414972243070 |
| Brand | Legrand |
| Number of Modules | 1 module |
| USB Port Configuration | 1x USB Type-A + 1x USB Type-C |
| Output Current | 3000 mA (3A) maximum |
| Total Power Output | 15W |
| Output Voltage | 5V |
| Input Voltage Range | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.091W (normal operation), 0.1W (standby) |
| Supply Current | 0.5A |
| Color | Black |
| RAL Number | 7015 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Box Depth | 40 mm |
| Mounting Method | Flush-mounted |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Cable Section | 1.5-2.5 mm² |
| Number of Terminals | 2 |
| IP Rating | IP40 |
| IK Rating | IK04 |
| Operating Temperature Range | 5°C to 35°C |
| Storage Temperature Range | -20°C to 70°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery Support | No |
| Wireless Capability | No |
| Antimicrobial Treatment | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Stress Test Conformity (1000V) | No |
| Standards Compliance | IEC 62684:2018 |
| Application | Indoor use only - Residential and small commercial |
| Suitable For | Charging smartphones, tablets, power banks and other portable USB devices |
Order Legrand Mosaic USB Socket 1 Module Dual Port A+C 3A 15W Black | 077672L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
