Description

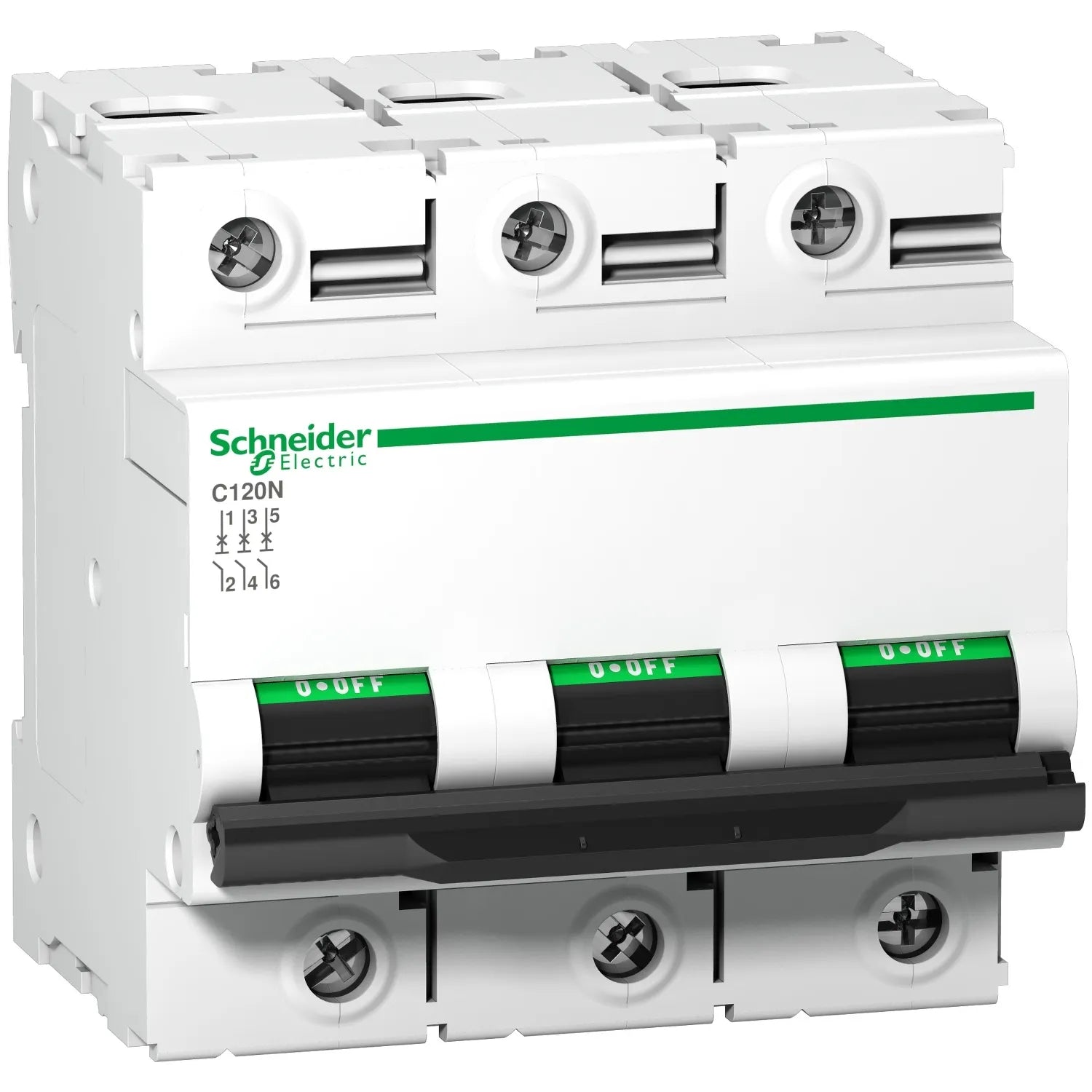

High-performance 3-pole miniature circuit breaker with 100A capacity.
The Schneider Electric Acti9 C120N is a high-performance miniature circuit breaker designed for optimal protection and safety in both residential and industrial applications. This 3-pole circuit breaker is equipped with a C curve tripping characteristic and supports a rated current of 100A at 30¡C. It features a breaking capacity of up to 10,000 A at 230-400 V AC, complying with the standards EN/IEC 60898-1 and EN/IEC 60947-2. This makes it suitable for a wide range of electrical distribution systems. Additionally, the Acti9 C120N offers excellent isolation capabilities conforming to IEC 60947-2, ensuring complete safety during maintenance and operation. The thermal-magnetic trip unit technology ensures reliable protection against overloads and short circuits. Its modular design allows for easy installation and integration into existing systems. With its robust construction and superior performance, the Acti9 C120N is an ideal choice for ensuring the safety and reliability of your electrical installations.

Key Features

  • 3-pole configuration
  • Rated current 100 A
  • C curve tripping characteristic
  • Thermal-magnetic trip unit
  • Conforms to EN/IEC 60898-1 and EN/IEC 60947-2

Technical Specifications

Specification Value
MaterialThermoplastic
DimensionsHeight 81 mm x Width 54 mm x Depth 86 mm
Weight0.5 kg
Power10000 A Icn at 230/400 V AC
Warranty18 months

Read more

Product form

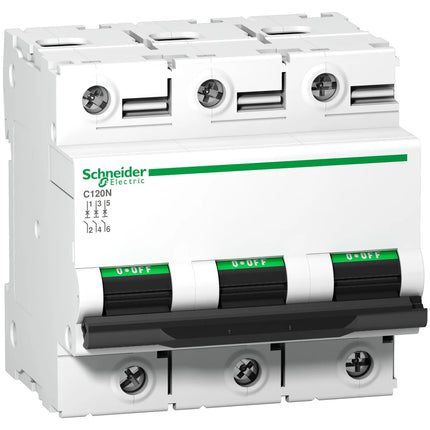

Miniature Circuit Breaker Acti9 C120N

Schneider Electric

SKU: A9N18367

71,000 IQD

        Description

        High-performance 3-pole miniature circuit breaker with 100A capacity.
        The Schneider Electric Acti9 C120N is a high-performance miniature circuit breaker designed for optimal protection and safety in both residential and industrial applications. This 3-pole circuit breaker is equipped with a C curve tripping characteristic and supports a rated current of 100A at 30¡C. It features a breaking capacity of up to 10,000 A at 230-400 V AC, complying with the standards EN/IEC 60898-1 and EN/IEC 60947-2. This makes it suitable for a wide range of electrical distribution systems. Additionally, the Acti9 C120N offers excellent isolation capabilities conforming to IEC 60947-2, ensuring complete safety during maintenance and operation. The thermal-magnetic trip unit technology ensures reliable protection against overloads and short circuits. Its modular design allows for easy installation and integration into existing systems. With its robust construction and superior performance, the Acti9 C120N is an ideal choice for ensuring the safety and reliability of your electrical installations.

        Key Features

        • 3-pole configuration
        • Rated current 100 A
        • C curve tripping characteristic
        • Thermal-magnetic trip unit
        • Conforms to EN/IEC 60898-1 and EN/IEC 60947-2

        Technical Specifications

        Specification Value
        MaterialThermoplastic
        DimensionsHeight 81 mm x Width 54 mm x Depth 86 mm
        Weight0.5 kg
        Power10000 A Icn at 230/400 V AC
        Warranty18 months
