Professional 3/4" pneumatic impact wrench with 1,250 ft-lb working torque, lightweight magnesium housing at 8.1 lb, long anvil design, and sealed oil bath lubrication for heavy-duty fleet maintenance and equipment servicing.

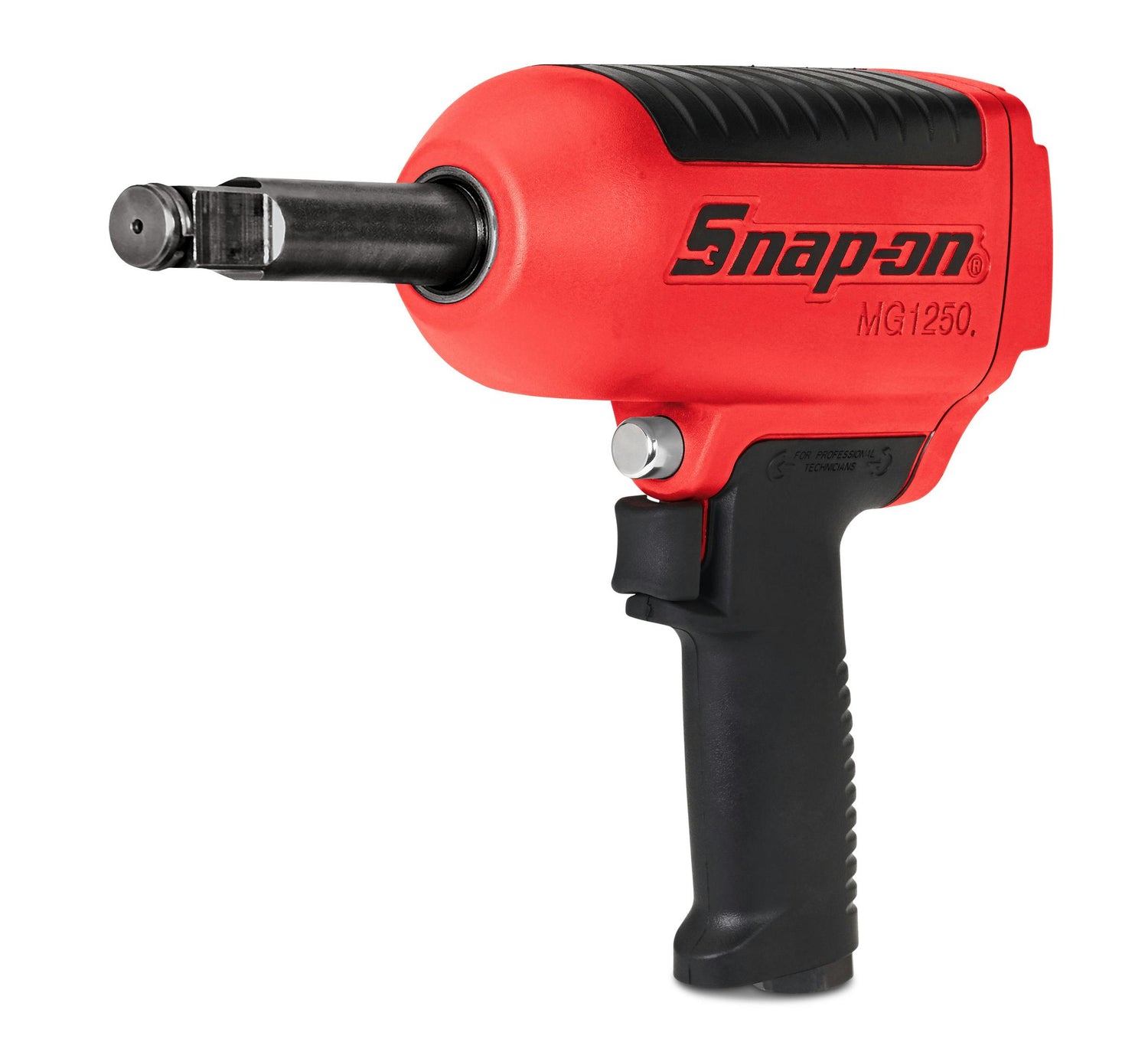

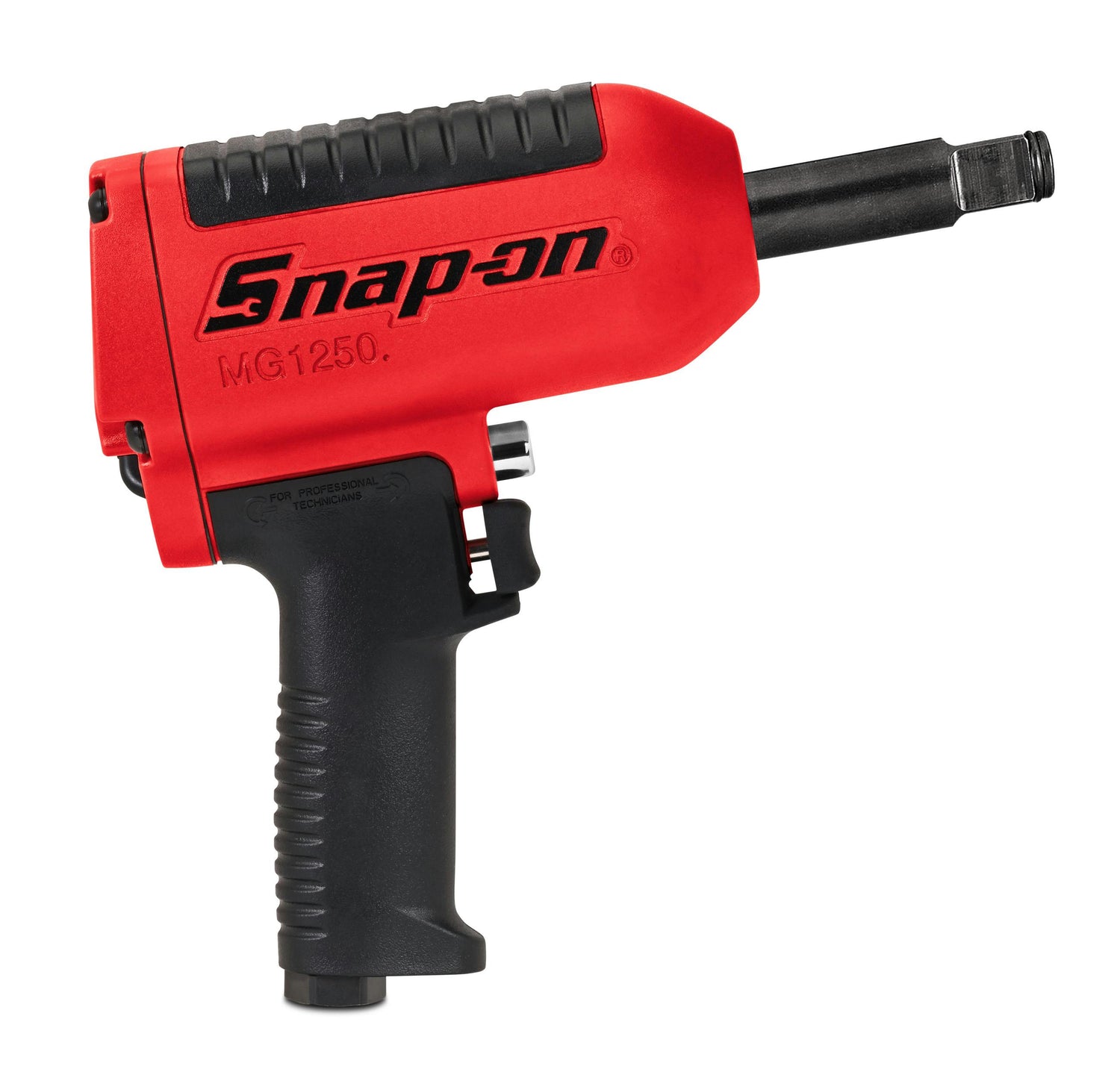

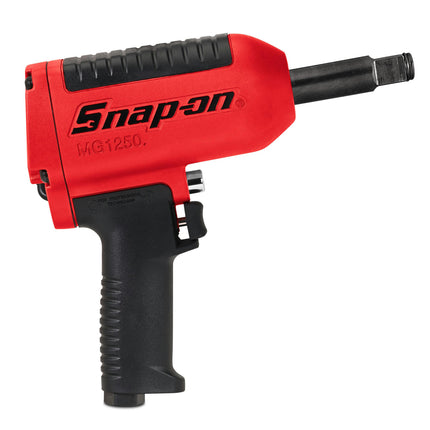

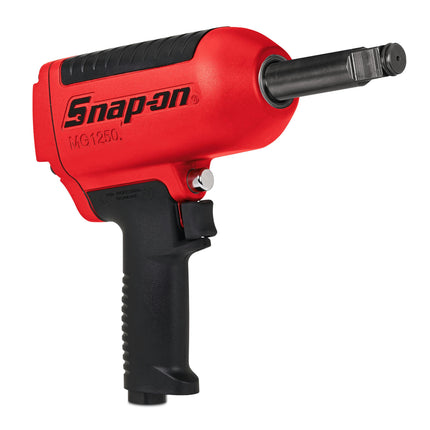

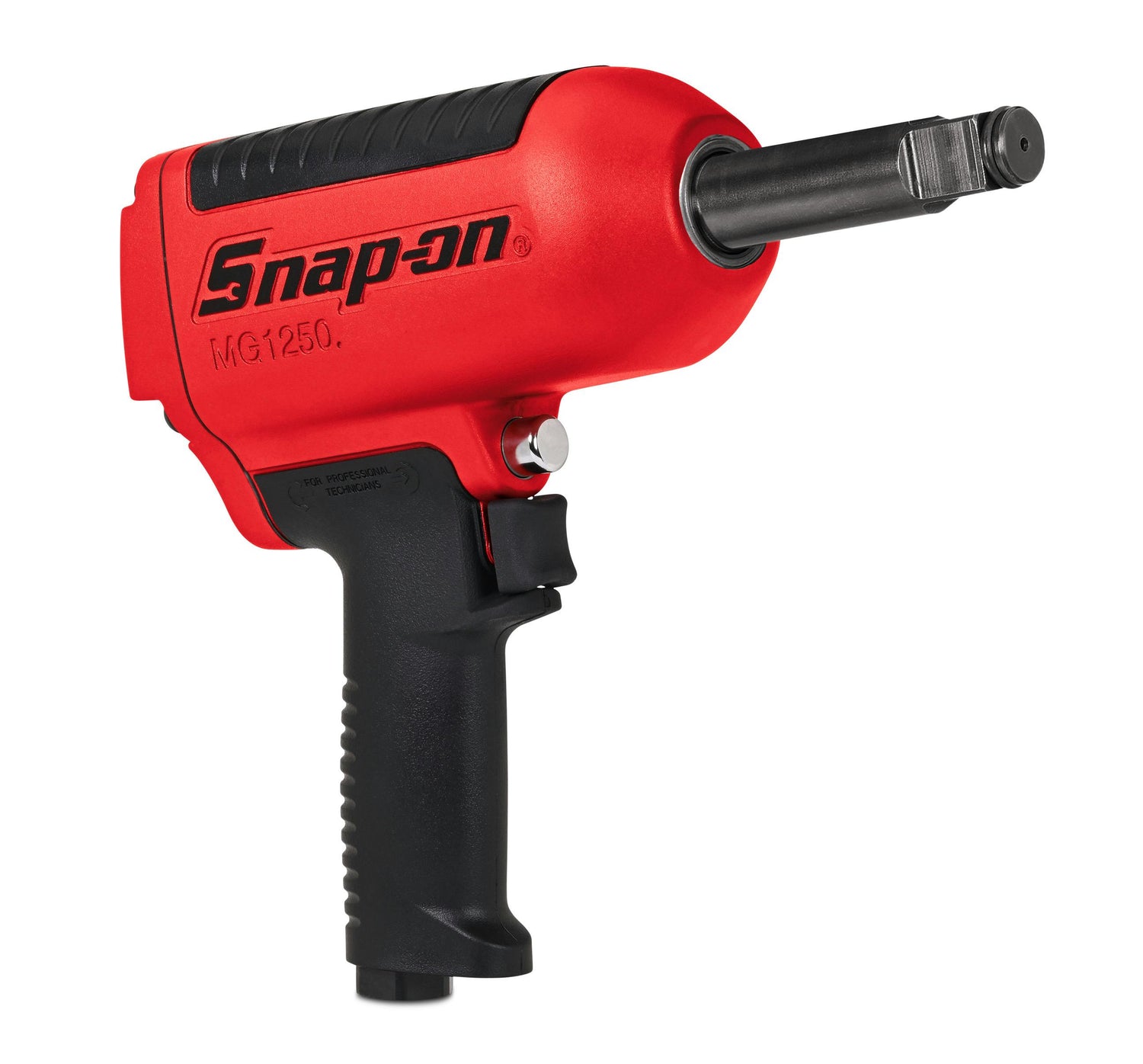

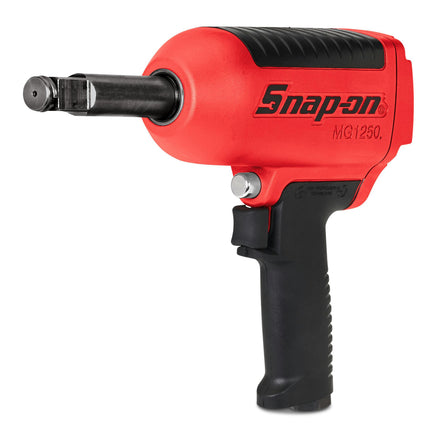

The Snap-on 3/4" Drive Heavy-Duty Long Anvil Magnesium Air Impact Wrench (Model MG1250L) is a professional-grade pneumatic tool engineered for demanding applications in fleet maintenance and heavy equipment servicing. Featuring 1,350 ft-lb of bolt breakaway torque and 1,250 ft-lb of working torque, this impact wrench delivers exceptional power for loosening and tightening fasteners on large equipment and tires. The lightweight magnesium housing weighs only 8.1 lb, significantly reducing user fatigue during extended operation while maintaining superior control and precision.
This tool incorporates advanced engineering with a six-vane rotor for faster motor start-up and a powerful twin-hammer impact mechanism that minimizes downtime through fewer moving parts. The sealed-in oil bath lubrication system, filled with RED LINE® Synthetic Oil, ensures continuous lubrication and extended tool life. The 3-inch extended long anvil design with friction ring and thru hole accommodates larger fasteners and provides optimal reach for mid-sized fleet vehicles. Operating at 1,050 blows per minute with a free speed of 6,200 RPM, this wrench efficiently handles demanding service tasks.
Designed for professional technicians and fleet maintenance operations, the MG1250L features a one-handed reverse button for intuitive operation and an anvil stop function that prevents fastener ejection when the trigger is released. With a recommended 3/8-inch hose size and air inlet thread size of 3/8 NPT, this tool integrates seamlessly into existing pneumatic systems. The sound pressure level of 99.8 dB(A) and vibration level of 10.38 m/s² represent industry-standard performance metrics for heavy-duty impact wrenches.
Key Features
- 1,350 ft-lb bolt breakaway torque and 1,250 ft-lb working torque for powerful fastener removal and installation
- Lightweight one-piece magnesium housing at 8.1 lb reduces user fatigue and improves control during extended use
- Six-vane rotor design enables faster motor start-up and improved efficiency
- Twin-hammer impact mechanism with fewer moving parts reduces downtime and increases reliability
- Sealed-in oil bath lubrication with RED LINE® Synthetic Oil ensures continuous lubrication and extended tool life
- 3-inch extended long anvil with friction ring and thru hole accommodates larger fasteners
- One-handed reverse button for intuitive and ergonomic operation
- Anvil stop function prevents fastener ejection when trigger is released for safety
- 6,200 RPM free speed and 1,050 BPM for efficient heavy-duty applications
- 3/8 NPT air inlet thread size integrates with standard pneumatic systems
Technical Specifications
| Specification |
Value |
| Model Number | MG1250L |
| Drive Size | 3/4 inch (19 mm) |
| Bolt Breakaway Torque | 1,350 ft-lb (1,830 N·m) |
| Working Torque | 1,250 ft-lb (1,695 N·m) |
| Maximum Torque | 1,200 ft-lb (1,627 N·m) |
| Free Speed | 6,200 RPM |
| Blows Per Minute | 1,050 BPM |
| Air Consumption | 6.4 CFM (46 SCFM) [181 l/min] |
| Air Inlet Thread Size | 3/8 inch NPT (18 mm) |
| Recommended Hose Size | 3/8 inch (10 mm) |
| Length | 10.5 inches (267 mm) |
| Extended Anvil Length | 3 inches (76 mm) |
| Anvil Type | Friction Ring with Thru Hole |
| Weight | 8.6 lb (3.99 kg) |
| Housing Material | Magnesium |
| Sound Pressure Level | 99.8 dB(A) |
| Vibration Level | 10.38 m/s² |
| Lubrication System | Sealed-in Oil Bath with RED LINE® Synthetic Oil |
| Impact Mechanism | Twin-Hammer with Six-Vane Rotor |
| Vinyl Boot | MG1200BOOT |
