Description

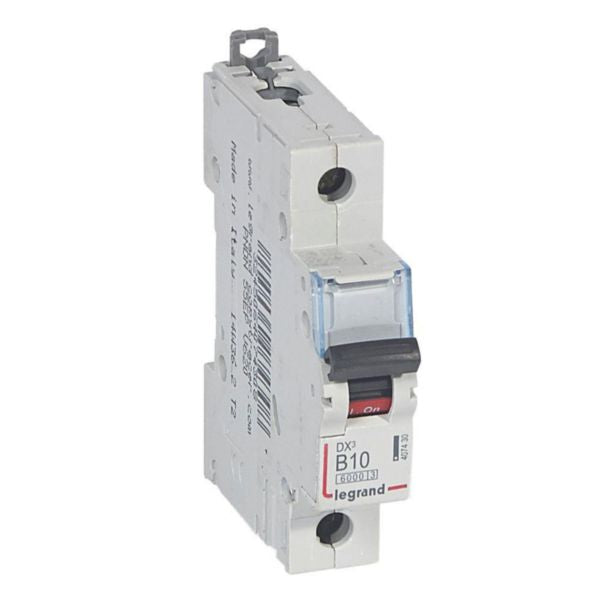

Shop Legrand MCB DX3 6000A 1 Pole 10A Curve B Circuit Breaker | 407430 In Iraq Best Prices

Single-pole thermal magnetic circuit-breaker with 10A rating and 6kA breaking capacity, offering B-curve protection, IP20 safety, and energy limitation class 3 for residential and commercial installations.

The Legrand MCB DX3 6000A is a thermal magnetic circuit-breaker specifically designed to protect wiring installations against overloads and short-circuits. With a breaking capacity of 10kA at 230VAC, this single-pole device provides reliable protection for residential and small commercial applications. The circuit-breaker features B-curve tripping characteristics with a tripping threshold between 30A and 50A (B curve between 3In and 5In), ensuring rapid disconnection during fault conditions. It offers IP20 finger-safe protection, meeting IEC/EN 60529 standards, and achieves energy limitation class 3 according to IEC 60898-1 standard for maximum let-through energy control. This MCB is equipped with two DIN rail clamps (top and bottom) allowing independent removal without disturbing the prong busbar supplying the row. The device can be supplied by copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). It features a convenient label holder for clear circuit identification and on/off indication printed on the handle with red and green backgrounds for easy status recognition. The product is halogen-free and designed with environmental consciousness in compliance with substance-restriction requirements. The MCB DX3 can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories for enhanced functionality. It supports connection to both copper and aluminum cables (with terminal accessory). Operating across 50-60 Hz frequency range with rated voltage of 230V and insulation voltage of 500V, this circuit-breaker delivers consistent performance in diverse electrical installations. Installation should be performed by qualified electricians in compliance with local installation rules.

Key Features

Breaking capacity of 6kA at 230VAC with 10kA rated short-circuit breaking capacity according to IEC 60947-2
B-curve tripping characteristic with threshold between 30A-50A (3In to 5In) for optimal fault detection
IP20 finger-safe protection meeting IEC/EN 60529 standards with IK02 impact resistance
Energy limitation class 3 providing maximum let-through energy control per IEC 60898-1
DIN rail mounted with dual clamps for independent removal without disturbing busbar supply
Compatible with multiple supply options: copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
Supports Legrand DX3 auxiliaries, RCD add-on modules, and comprehensive accessory ecosystem
Halogen-free design with environmentally conscious manufacturing process
Label holder for circuit identification with clear on/off indication on handle
Operates across 50-60 Hz frequency range with 500V rated insulation voltage

Technical Specifications

Specification	Value
Product Name	MCB DX3 6000A 1 Pole 10A Curve B
Reference Number	407430
EAN Code	3245064074308
Rated Current	10 A
Rated Voltage	230 V AC
Rated Insulation Voltage (Ui)	500 V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Breaking Capacity (Icn) at 230V	6 kA per IEC 60898-1
Short-Circuit Breaking Capacity (Icu) at 230V	10 kA per IEC 60947-2
Release Characteristic	B Curve (3In to 5In)
Number of Poles	1 pole
Number of Protected Poles	1
Current Limiting Class	Class 3
Degree of Protection (IP)	IP20 (Fingerproof)
Degree of Impact Strength (IK)	IK02
Built-in Depth	44 mm
Width	17.8 mm
Height	94.8 mm
Overall Depth	77.8 mm
Width in Modular Spacings	1 module
Connectable Conductor Cross Section (Multi-wired)	1.5-25 mm²
Connectable Conductor Cross Section (Solid-core)	1.5-35 mm²
Connection Type	Screwed Terminal
Mounting Method	DIN Rail
Electric Supplying Direction	Top or Bottom
Frequency Range	50-60 Hz
Ambient Temperature Operating Range	-25 to +70 °C
Storage Temperature Range	-40 to +70 °C
Pollution Degree	2
Colour	Grey
RAL Number	7035
Halogen Free	Yes
Explosion-proof	No
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Additional Equipment Possible	Yes (Auxiliaries, RCD modules, accessories)
Label Space	Yes
Carbon Footprint (Manufacturing Phase)	0.828 kg CO₂ eq.
Mounting Configuration	Dual DIN rail clamps (top and bottom)
Supply Options	Copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar

Order Legrand MCB DX3 6000A 1 Pole 10A Curve B Circuit Breaker | 407430 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
