Shop Legrand Mallia Senses USB Socket Outlet 16A Brushed Aluminium | 281204BA In Iraq Best Prices

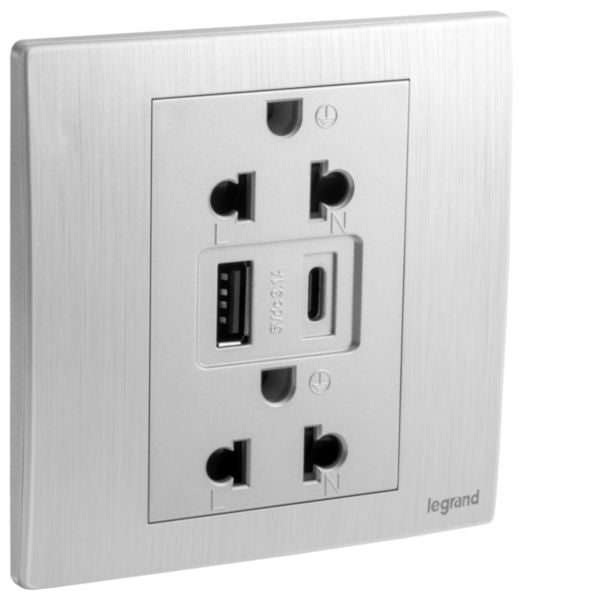

Mallia Senses 1 gang dual EURO/US socket outlet with integrated USB A and C chargers, 16A 250V, brushed aluminium finish with safety shutters and screw terminals
The Mallia Senses 1 gang EURO/US socket outlet combines modern design with practical functionality, featuring dual Euro-US socket outlets rated at 16A, 250V. This innovative device integrates two USB chargers with A and C type connectors, each delivering 3000mA output for fast and convenient charging of electronic devices. The brushed aluminium finish provides an elegant aesthetic that seamlessly integrates with contemporary interior design while maintaining robust performance and durability.
This socket outlet is equipped with screw-type terminals for enhanced contact reliability and marked terminals for easy identification during installation. The safety shutters maximize child protection, making it ideal for both residential and commercial applications. With its thin and modern design, the Mallia Senses socket outlet offers the perfect combination of technicity and robustness, featuring a support frame that ensures long-lasting performance. The device operates at 50-60 Hz frequency and maintains an IP20 protection rating with IK04 impact strength.
Installation is quick and easy thanks to the innovative plate clipping system, making it accessible for both professional electricians and DIY enthusiasts. The product is halogen-free and complies with RoHS and REACH regulations, ensuring environmental responsibility and safety standards. The Mallia Senses range is sold as a complete set under a single catalog number, providing comprehensive functionality in one unified device.
Key Features
- Dual EURO/US socket outlets with 16A 250V rating for reliable power supply
- Integrated USB A and C type chargers delivering 3000mA each for fast device charging
- Safety shutters for maximum child protection and secure operation
- Screw-type terminals with marked identification for enhanced contact reliability
- Brushed aluminium finish with modern thin design for elegant interior integration
Technical Specifications
| Specification |
Value |
| Product Model | Mallia Senses 1 Gang EURO/US Socket with USB |
| Nominal Current | 16A |
| Nominal Voltage | 250V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 2 (EURO/US dual socket) |
| USB Ports | 1 x USB-A, 1 x USB-C |
| USB Output Power | 15W total (3000mA per charger) |
| Number of Modules | 2 modules |
| Connection Type | Screwed terminal, 1-4 mm² cable capacity |
| Device Dimensions | 86mm width x 86mm height x 45.6mm depth |
| Built-in Depth | 38.8mm |
| Minimum Box Depth | 35mm |
| Mounting Method | Flush-mounted with screw fastening |
| Material | Aluminium |
| Finish | Brushed Aluminium, Matt surface |
| Color | Aluminium |
| Protection Rating | IP20 |
| Impact Strength | IK04 |
| Safety Features | Safety shutters for child protection, enhanced contact protection |
| Operating Temperature | -5°C to 35°C |
| Storage Temperature | -10°C to 70°C |
| Voltage Type | AC |
| Halogen Free | Yes |
| Compliance | RoHS and REACH compliant |
| Reference Number | 281204BA |
| EAN Code | 3414972071253 |
| Installation Type | Quick and easy plate clipping system |
| Terminal Marking | Yes, marked terminals for easy identification |
| Power Delivery | No |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
Order Legrand Mallia Senses USB Socket Outlet 16A Brushed Aluminium | 281204BA at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
