Shop Legrand Mallia Senses 1 Gang Keystone Adapter Dark Bronze | 281194DB In Iraq Best Prices
Professional 1-gang keystone adapter in dark bronze finish for Mallia Senses frame system. Flush-mounted design with thermoplastic construction, halogen-free, IP20 rated. Includes protective shell and mounting hardware for both plastic and metal boxes.

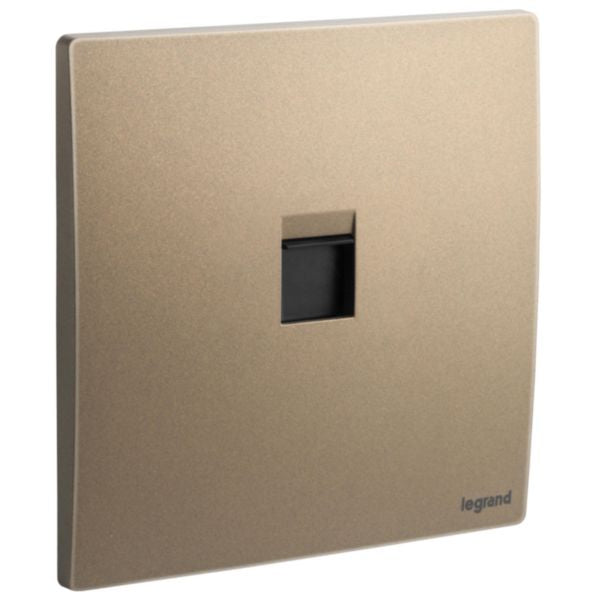

The Mallia Senses 1 Gang Keystone Adapter in Dark Bronze is a professional-grade electrical outlet adapter designed to accommodate single keystone RJ connectors within the Mallia Senses frame system. This adapter combines functionality with aesthetic appeal, featuring a sophisticated dark bronze finish that complements modern interior designs. The product is engineered for both new construction and renovation projects, offering seamless integration with existing electrical installations.
This keystone adapter is manufactured from high-quality thermoplastic material with a lacquered, matt finish that provides durability and resistance to wear. It comes pre-assembled with a protective shell to guard against paint and dust contamination during the installation phase. The adapter supports flush-mounted installation with screw-type fastening, making it suitable for both plastic and metal junction boxes. With an operating temperature range of -5 to 50°C, it maintains reliable performance across diverse environmental conditions.
The Mallia Senses adapter is halogen-free and designed for IP20 protection rating with IK04 impact strength, ensuring safety and longevity in residential and commercial applications. It includes all necessary mounting hardware and is optimized for quick, hassle-free installation. The product is sold complete with the Mallia Senses plate and is compatible with standard keystone mechanism outlets, making it an ideal choice for modern electrical installations.
Key Features
- Single keystone RJ connector accommodation for streamlined installation
- Dark bronze matt lacquered finish for modern aesthetic appeal
- Halogen-free thermoplastic construction for safety and durability
- Protective shell guard against paint and dust during installation
- Compatible with both plastic and metal flush-mounted boxes
- Includes mounting screws for secure installation
- IP20 protection rating with IK04 impact strength
- Operating temperature range -5 to 50°C for diverse environments
- Optimized for new builds and renovation projects
- Ready-to-install keystone-specific outlet configuration
Technical Specifications
| Specification |
Value |
| Product Type | 1-Gang Keystone Adapter |
| Brand | Legrand - Mallia Senses |
| Model Reference | 281194DB |
| EAN Code | 3414972084987 |
| Material | Thermoplastic |
| Finish | Lacquered Matt - Dark Bronze |
| Assembly Type | Basic element with adaptor plate |
| Mounting Method | Flush-mounted with screw fastening |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 22.4 mm |
| Built-in Depth | 14.8 mm |
| Minimum Box Depth | 35 mm |
| Number of Modules | 2 |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Outlet Direction | Straight |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Halogen Free | Yes |
| Support Ring | No |
| Dust Cover | No |
| Hinged Lid | No |
| With Imprint | Yes |
| Strain Relief | No |
| Lighting Feature | No |
| Antimicrobial Treatment | No |
| Installation Type | Ready to install keystone specific outputs |
| Compatibility | Plastic and metal flush and surface boxes |
| Included Accessories | Protective shell, mounting screws, Mallia Senses plate |
Order Legrand Mallia Senses 1 Gang Keystone Adapter Dark Bronze | 281194DB at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
