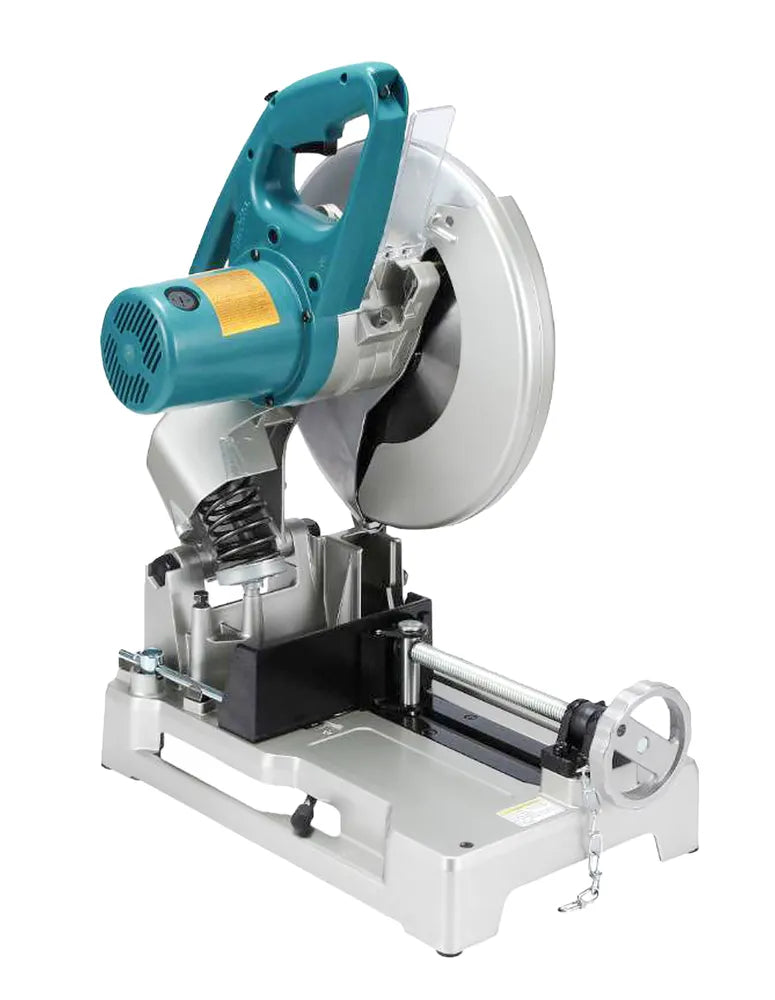

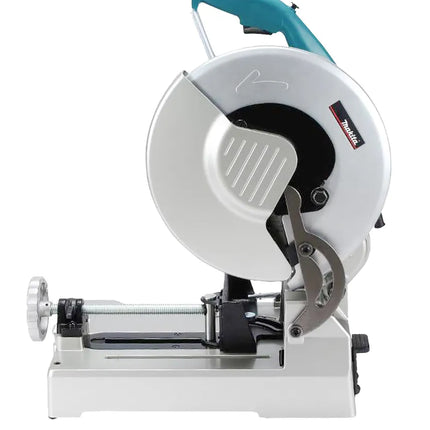

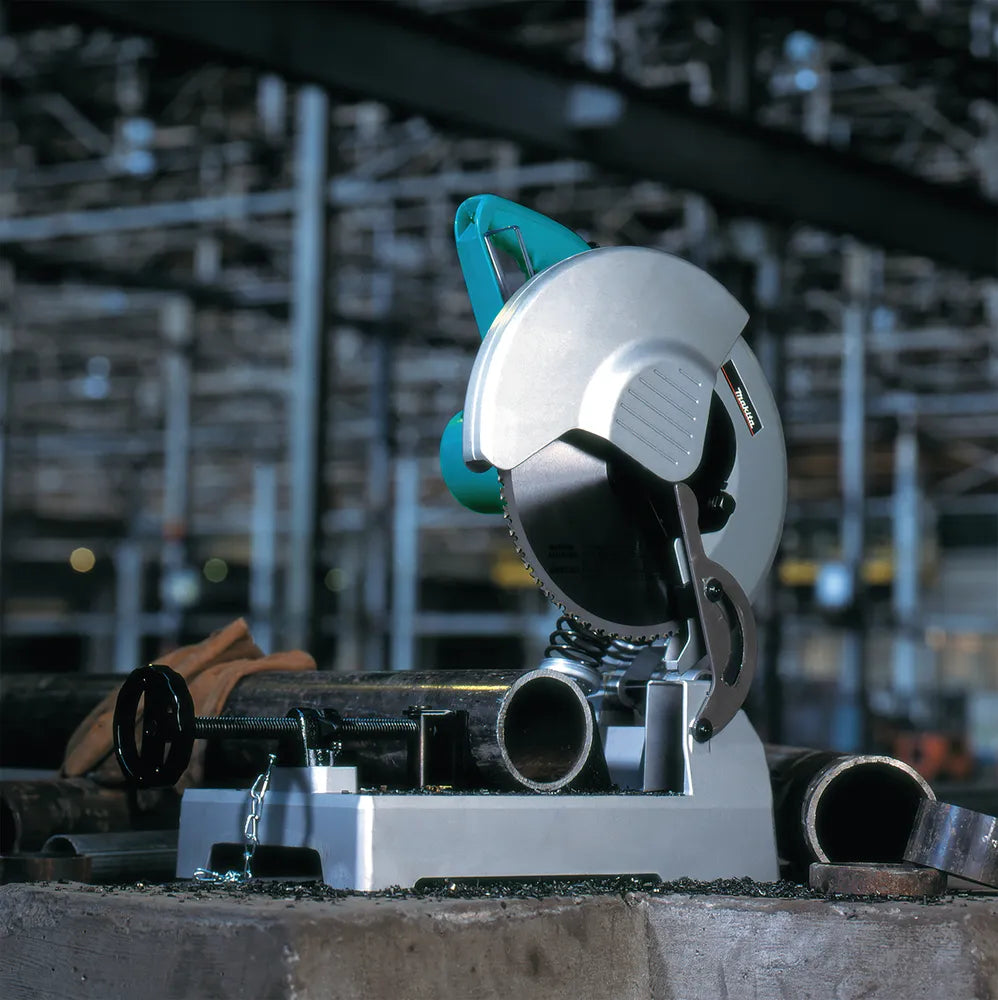

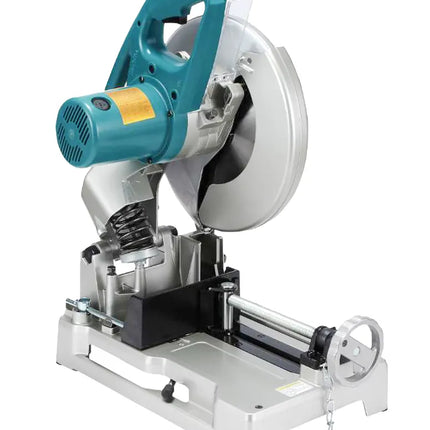

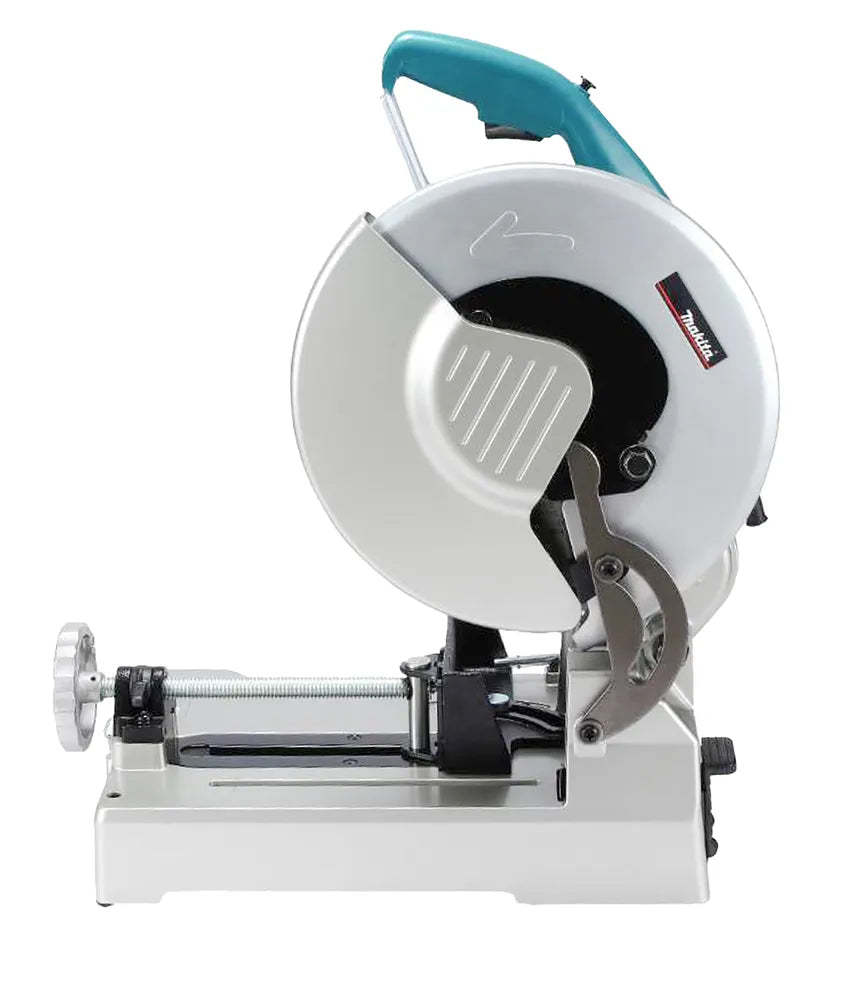

The Makita LC1230 is engineered for precise and efficient metal cutting applications. Powered by a robust 15 AMP motor operating at 1,700 RPM, it ensures swift and clean cuts through a variety of metals, including pipe, angle iron, and conduit.
Equipped with a 12" carbide-tipped blade, the LC1230 offers a significant advantage over traditional abrasive wheels, providing cleaner cuts with minimal burrs and virtually no sparks. The carbide-tipped blade also boasts a longer lifespan, reducing the need for frequent replacements.
The saw features a quick-release vise for secure material retention and rapid, repeated cut-offs, enhancing productivity in both workshop and job site environments. Additionally, the tool-less fence adjustment allows for easy angle adjustments up to 45 degrees for miter cuts, providing versatility for various cutting applications.
Key Features:
- Powerful 15 AMP Motor: Delivers 1,700 RPM for fast and efficient metal cutting.
- Carbide-Tipped Blade: Provides clean, accurate cuts with minimal burrs and a longer blade life compared to abrasive wheels.
- Quick-Release Vise: Ensures secure material retention and allows for fast, repeated cut-offs.
- Tool-Less Fence Adjustment: Enables easy angle adjustments up to 45 degrees for miter cuts.
- D-Shaped Handle: Offers a comfortable grip for better control during operation.
- Lock-Off Button: Prevents accidental start-ups for enhanced safety.
- Shaft Lock: Facilitates easy blade changes.
Specifications:
| Specification |
Details |
| Brand |
Makita |
| Model |
LC1230 |
| Power Source |
Corded Electric |
| Motor |
15 AMP |
| No Load Speed |
1,700 RPM |
| Blade Diameter |
12" (305 mm) |
| Arbor Size |
1" (25.4 mm) |
| Max. Cutting Capacity at 90° |
4-1/2" (115 mm) |
| Max. Cutting Capacity at 45° |
3-1/2" (90 mm) |
| Overall Length |
20-1/8" (510 mm) |
| Net Weight |
41.9 lbs. (19 kg) |
| Cord Length |
8.2 ft. (2.5 m) |
