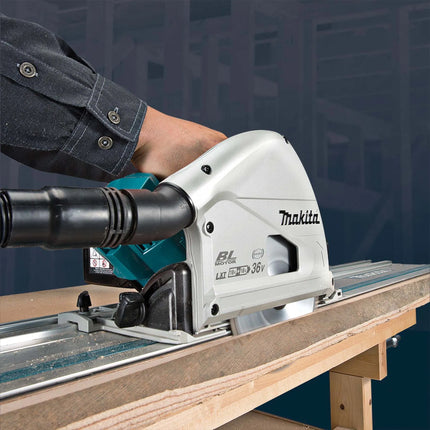

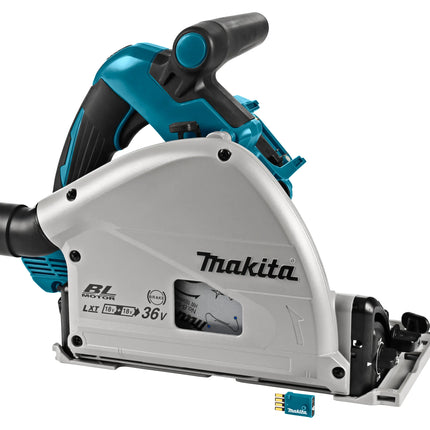

The Makita DSP601ZU Plunge Cut Saw is a high-precision cordless cutting solution designed for professional carpentry, cabinetry, and interior finishing. Powered by two 18V LXT batteries (36V performance), it delivers powerful, smooth, and controlled cutting without the limitations of a power cord.
Featuring a brushless motor, the DSP601ZU offers improved efficiency, longer runtime, and reduced maintenance. The plunge mechanism allows the blade to be lowered smoothly into the material, making it ideal for precise cuts in panels, worktops, doors, and sheet materials. With fine depth adjustment and excellent rail compatibility, users can achieve clean, accurate results every time.
The saw includes soft start, electric brake, and variable speed control to ensure maximum safety and control during operation. Its compact, balanced design reduces fatigue during extended use. The DSP601ZU version is supplied as a bare tool, making it ideal for users who already own Makita 18V LXT batteries and chargers.
Technical Specifications
| Specification |
Details |
| Battery Platform |
2 × 18V LXT (36V) |
| Motor Type |
Brushless |
| Blade Diameter |
165 mm |
| Bore Size |
20 mm |
| No-Load Speed |
2,500 – 6,300 rpm |
| Max Cutting Depth at 90° |
56 mm |
| Max Cutting Depth at 45° |
40 mm |
| Bevel Capacity |
-1° to 48° |
| Plunge Mechanism |
Yes |
| Variable Speed Control |
Yes |
| Electric Brake |
Yes |
| Soft Start |
Yes |
| Weight (without batteries) |
Approx. 4.6 kg |
| Package Type |
Tool only (No battery, no charger) |
Features & Benefits
-
Professional plunge cut saw for precision woodworking
-
36V power using dual 18V LXT batteries
-
Brushless motor for efficiency and durability
-
Smooth plunge action for clean, accurate cuts
-
Variable speed control for different materials
-
Fine depth adjustment for precise cutting
-
Electric brake for enhanced safety
-
Soft start for controlled operation
-
Compatible with Makita guide rails
-
Supplied as bare tool – battery and charger not included
