Shop Legrand Living Now Dual USB Type-A Charger 15W 1 Module Black | BT-K4191AA In Iraq Best Prices
Dual USB Type A charger with 15W power for simultaneous charging of two devices. Features direct 100-240V AC input, 3000mA output current, and modern flush-mounted design compatible with Living Now wiring devices.

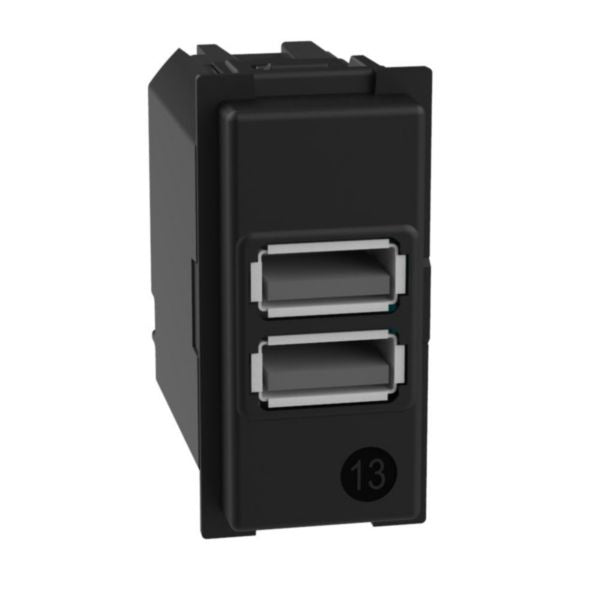

The Living Now USB Charger Type A+A 15W is a modern dual-port USB charging solution designed for contemporary homes and offices. This sleek black charger features two USB Type A ports that deliver 5V DC output, enabling simultaneous fast charging of two devices such as smartphones, tablets, and powerbanks. With a compact 1-module design, it integrates seamlessly into the Living Now aesthetic and wiring device range, offering a professional appearance while maintaining practicality.
Powered by direct 100-240V AC input with 50-60Hz frequency compatibility, this USB charger provides up to 3000mA maximum output current with 15W total power consumption, making it ideal for everyday charging needs. The device features screw and plate terminals for secure electrical connections and is designed for flush-mounted installation with a minimum built-in depth requirement of 40mm. The innovative plastic hooking system enables easy installation and removal of the mechanism on the support frame, simplifying both setup and maintenance.
This product is specifically designed for internal use only and is rated for IP40 degree of protection with IK04 impact strength. It requires completion with a type 11C cover plate and is halogen-free, meeting modern safety and environmental standards. The operating temperature range of 5-40°C ensures reliable performance in standard indoor environments, while the storage temperature range of -20-70°C provides flexibility for warehouse and logistics operations.
Key Features
- Dual USB Type A ports for simultaneous charging of two devices at 5V DC output
- Direct 100-240V AC 50-60Hz power input with 15W total power output capacity
- Maximum 3000mA output current for fast charging of smartphones, tablets, and powerbanks
- Innovative plastic hooking system for easy installation and removal from support frame
- Flush-mounted 1-module design with IP40 protection and IK04 impact resistance rating
- Screw and plate terminals for secure electrical connections with 1.5-2.5mm² cable capacity
- Halogen-free construction meeting modern environmental and safety standards
- Coordinated with Living Now aesthetic for seamless integration into modern interiors
- Operating temperature range 5-40°C with storage capability from -20 to 70°C
- Requires type 11C cover plate for complete installation and professional finish
Technical Specifications
| Specification |
Value |
| Product Model | Living Now USB Charger Type A+A |
| SKU/Reference | BT-K4191AA |
| EAN Code | 8005543699218 |
| Number of USB Ports | 2 USB Type A ports |
| USB Port Type | Type A (no USB-C ports) |
| Input Voltage | 100-240V AC |
| Input Frequency | 50-60 Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Total Power Output | 15W |
| Power Consumption | 0.083W |
| Number of Modules | 1 module (3 module system compatible) |
| Connection Type | Screw and plate terminals |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid cable compatible |
| Mounting Method | Flush-mounted installation |
| Device Width | 22 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Minimum Built-in Depth | 40 mm |
| Built-in Depth | 33 mm |
| Color | Black |
| RAL Number | 7015 |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20 to 70°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Stress Test Conformity (1000V) | No |
| Supply Current | 0.5A |
| Number of Terminals | 2 terminals |
| Required Cover Plate | Type 11C cover plate (sold separately) |
| Suitable For | Internal use only |
| Not Suitable For | Laptop charging (load limited to 15W) |
