Description

Shop Legrand Living Now Fibre Optic SC/APC Coupling Connector Simplex | BT-K4268SCA In Iraq Best Prices

Professional SC/APC fibre optic coupling connector with singlemode technology, designed for FFTH applications with low insertion loss and exceptional durability.

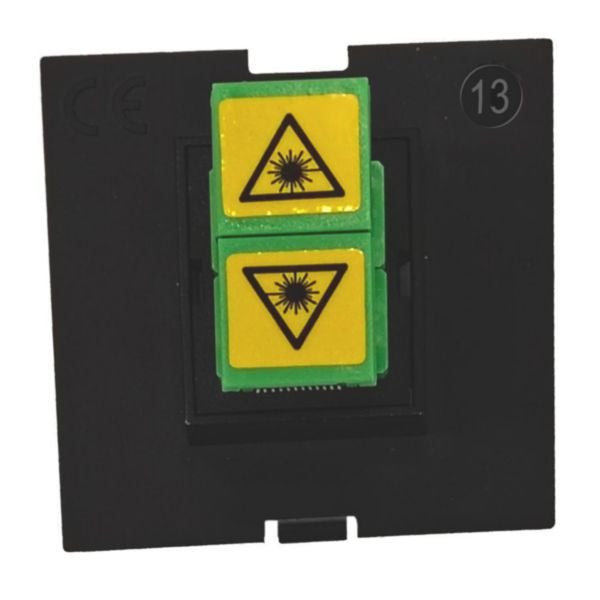

The Living Now Coupling Connector for Fibre Optic SC/APC Simplex is a premium feedthrough socket designed for high-speed fiber optic communication systems. This professional-grade connector features SC/APC singlemode technology and is specifically engineered for FFTH (Fiber To The Home) applications. The device integrates seamlessly into the Living Now product range, offering reliable connectivity for modern broadband infrastructure. With an insertion loss of only 0.2dB and exceptional endurance rated for 500 insertions with a maximum increase of 0.2dB, this coupling connector delivers consistent performance and longevity. The connector comes equipped with protective dust caps and is housed in a durable black housing (RAL 9011) that measures 45mm x 41.3mm x 45mm. The snap-engage fastening system ensures quick and secure installation in flush-mounted applications. This two-module device provides IP20 protection and IK04 impact resistance, making it suitable for both residential and commercial installations. Operating across a temperature range of -5°C to 35°C, the connector maintains optimal performance in various environmental conditions. The label space feature allows for easy identification and organization of fiber connections.

Key Features

  • SC/APC duplex connectors with singlemode APC technology for reliable fiber connections
  • Feedthrough socket design enabling seamless fiber connectivity and signal transmission
  • Low insertion loss of 0.2dB with minimal performance degradation over 500 insertions
  • Integrated dust caps for protection and maintenance of connector cleanliness
  • Snap-engage fastening system for quick and secure flush-mounted installation
  • IP20 protection rating and IK04 impact resistance for durable performance
  • Black housing (RAL 9011) with compact 45mm width for space-efficient mounting
  • Optimized for FFTH (Fiber To The Home) broadband infrastructure applications
  • Operating temperature range from -5°C to 35°C for versatile environmental use
  • Label space feature for easy identification and cable management

Technical Specifications

Specification Value
Product TypeFibre Optic Coupling Connector
Connector TypeSC/APC Duplex Singlemode
Reference NumberBT-K4268SCA
EAN Code8005543736395
Installation TypeFlush-mounted installation
Fastening MethodEngage (snap)
Number of Modules2
Number of Buses2
Device Width45 mm
Device Depth41.3 mm
Device Height45 mm
ColourBlack
RAL NumberRAL 9011
Insertion Loss0.2 dB
Endurance Rating500 insertions with maximum 0.2 dB increase
Outlet DirectionStraight
Dust Protection CapHinged lid
Degree of Impact Strength (IK)IK04
Degree of Protection (IP)IP20
Operating Temperature Range-5°C to 35°C
Storage Temperature Range-10°C to 70°C
Cover FrameYes
Centre PlateNo
Label SpaceYes
Strain ReliefNo
Wire StockNo
Surface MountingNo
Duct InstallationNo
Floor Box/Subfloor MountedNo
Antimicrobial TreatmentNo
ApplicationFFTH (Fiber To The Home)
Product RangeLiving Now
ManufacturerBticino

Order Legrand Living Now Fibre Optic SC/APC Coupling Connector Simplex | BT-K4268SCA at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
