Description

Shop Legrand Living Now Fan Control 240V 0-1-2-3 Speed 2 Modules White | BT-KW4017 In Iraq Best Prices

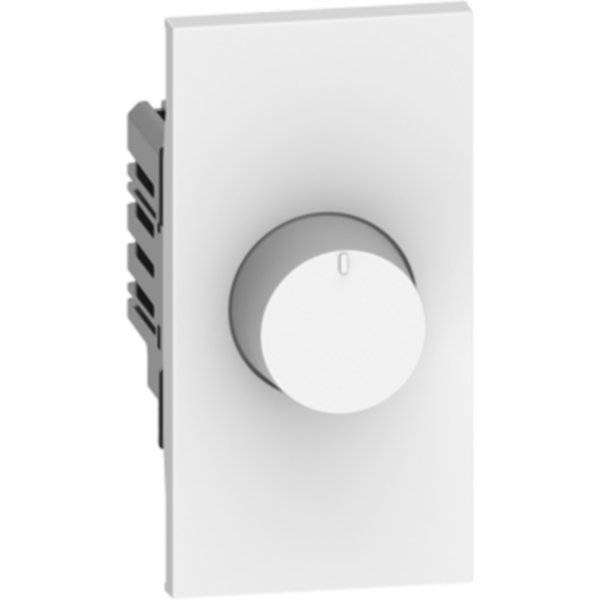

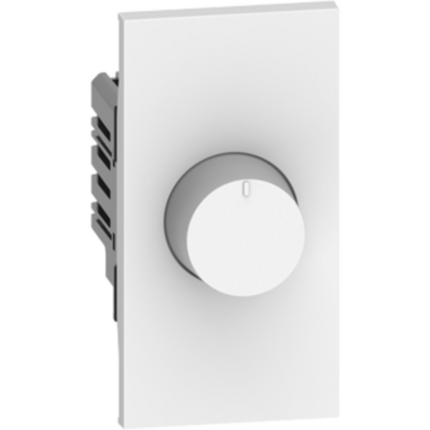

4-speed fan control with off setting for 240V systems. Flush-mounted 2-module design with white finish, turn-button operation, 10A rated capacity, and innovative quick-install plastic hooks.

The Living Now Fan Control is a premium flush-mounted speed control device designed for residential and commercial ventilation systems. This sophisticated 2-module control unit offers four distinct operational settings including off and three variable speed levels, allowing users to adjust ventilation speed according to their specific requirements. The device features screw and plate terminals for secure electrical connections and utilizes a turn-button mechanism for intuitive operation. Crafted from high-quality thermoplastic material with a matt white finish (RAL 9003), this fan control integrates seamlessly into modern interior designs. The unit is rated for 240V AC operation with a 10A capacity, making it suitable for standard residential and small commercial applications. The device comes pre-supplied with its corresponding white 2-module cover plate, ensuring complete aesthetic cohesion with the Living Now wiring device range. The innovative plastic hooking system provides enhanced installation and removal capabilities, allowing for quick and easy mechanism installation on the support frame without requiring specialized tools. With an IP20 protection rating and IK04 impact resistance, this fan control ensures reliable performance in indoor environments. The device operates efficiently across a temperature range of -5 to 35°C and is halogen-free, meeting modern environmental and safety standards.

Key Features

Four operational settings: Off and three variable speed levels for precise ventilation control
Pre-supplied with white 2-module cover plate for complete aesthetic integration
Innovative plastic hooking system for enhanced installation and removal capabilities
Screw and plate terminal connections for secure electrical attachment
Halogen-free thermoplastic construction meeting modern environmental standards
IP20 protection rating and IK04 impact resistance for indoor reliability
240V AC rated operation with 10A capacity for residential and small commercial use
Matt white finish (RAL 9003) seamlessly matches Living Now wiring device range

Technical Specifications

Specification	Value
Product Type	Fan Speed Control Switch
Brand	Bticino - Living Now
Reference Number	BT-KW4017
EAN Code	8005543677025
Nominal Voltage	240V AC
Rated Current	10A
Frequency	50-60 Hz
Operating Modes	Circuit 0-1-2-3 (Off and three speed levels)
Method of Operation	Turn Button
Mounting Method	Flush-mounted
Number of Modules	2 modules
Material	Thermoplastic
Colour	White
RAL Number	9003 (Similar)
Surface Finish	Matt
Halogen Free	Yes
IP Rating	IP20
Impact Strength (IK)	IK04
Width	45 mm
Height	86 mm
Depth	58.5 mm
Built-in Depth	34 mm
Minimum Installation Box Depth	44 mm
Connection Type	Screwed Terminal
Number of Terminals	2
Terminal Capacity	1.5-2.5 mm²
Cable Type	Flexible or Rigid
Operating Temperature Range	-5 to 35°C
Storage Temperature Range	-10 to 70°C
Socket Outlet	No
Included Accessories	White 2-module cover plate

Order Legrand Living Now Fan Control 240V 0-1-2-3 Speed 2 Modules White | BT-KW4017 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
