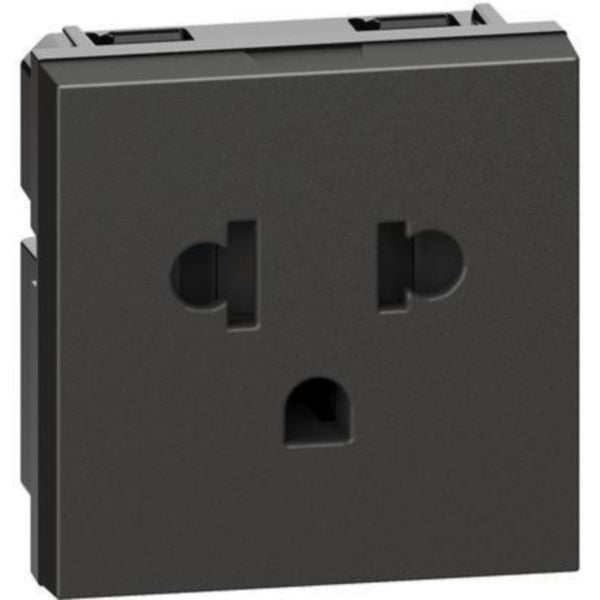

Shop Legrand Living Now Euro-US Socket 2P+E 16A 2 Modules Black | BT-KG4126T In Iraq Best Prices
Multi-standard Euro-US socket 2P+E 16A with advanced contact protection, modern black design, and easy installation system for residential and commercial applications.
The Living Now Euro-US socket is a versatile multi-standard electrical outlet designed for modern homes and commercial spaces. This 2-module socket accepts both Euro 2P+E and US 2P+E plugs with a nominal current rating of 16A at 250V. The device features advanced contact protection technology that shields against accidental electrical contact when no plug is inserted, ensuring enhanced safety for families and workplaces. The socket comes equipped with screw and plate terminals for secure and reliable connections, with cable capacity ranging from 1.5 to 2.5mm². The installation process is simplified thanks to the new generation plastic hooking system, allowing for easy installation and removal of the mechanism from the support frame without requiring additional tools.
Designed as part of the Living Now range, this socket maintains aesthetic coordination with other components in the collection, providing a cohesive and modern appearance in any interior design scheme. The device operates across standard frequencies of 50-60Hz and is suitable for flush-mounted installation with a minimum built-in depth of 32mm. The black finish with RAL 7015 coloring provides a sophisticated appearance that complements contemporary décor. The socket features an IK04 degree of impact strength, making it suitable for general residential and light commercial applications.
This multi-standard socket is halogen-free and manufactured from high-quality thermoplastic material, ensuring durability and environmental compliance. The product includes a loop-through function with one available port, allowing for flexible installation configurations. It is recommended for internal use only and requires a KG51 cover for completion. The Living Now Euro-US socket represents an ideal solution for spaces requiring flexible power access with both European and American plug standards, combining safety, functionality, and modern design in one comprehensive package.
Key Features
- Multi-standard socket accepting both Euro 2P+E and US 2P+E plugs
- Advanced contact protection ensuring safety against accidental electrical contact
- New generation plastic hooking system for easy installation and removal
- Screw and plate terminals with cable capacity 1.5-2.5mm²
- Halogen-free thermoplastic construction for durability and environmental compliance
- Loop-through function with one available port for flexible installation
- IK04 degree of impact strength suitable for residential and light commercial use
- Operates at 50-60Hz frequency with 250V nominal voltage
- Coordinated with Living Now aesthetic range
- Requires KG51 cover for completion
Technical Specifications
| Specification |
Value |
| Product Type | Multi-standard Socket |
| Socket Standard | Euro-US 2P+E |
| Nominal Current | 16A |
| Nominal Voltage | 250V |
| Frequency | 50-60Hz |
| Number of Modules | 2 |
| Number of Active Contacts (Round) | 2 |
| Number of Active Contacts (Flat) | 2 |
| Mounting Direction | Vertical |
| Mounting Method | Flush-mounted |
| Connection Type | Screwed Terminal |
| Cable Section | 1.5-2.5mm² |
| Cable Support | Screw cable clamp |
| Device Width | 45mm |
| Device Height | 45mm |
| Device Depth | 32mm |
| Built-in Depth | 22mm |
| Minimum Installation Box Depth | 32mm |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Rated Fault Current | 16mA |
| Color | Black |
| RAL Number | 7015 |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Matt |
| Contact Protection | Enhanced |
| Loop Through Function | Yes (1 port) |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Voltage Type | AC |
| SKU | BT-KG4126T |
| EAN | 8005543651360 |
| Brand | BTICINO |
| Range | Living Now |
| Recommended Use | Internal use only |
| Complementary Product | KG51 cover |
Order Legrand Living Now Euro-US Socket 2P+E 16A 2 Modules Black | BT-KG4126T at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
