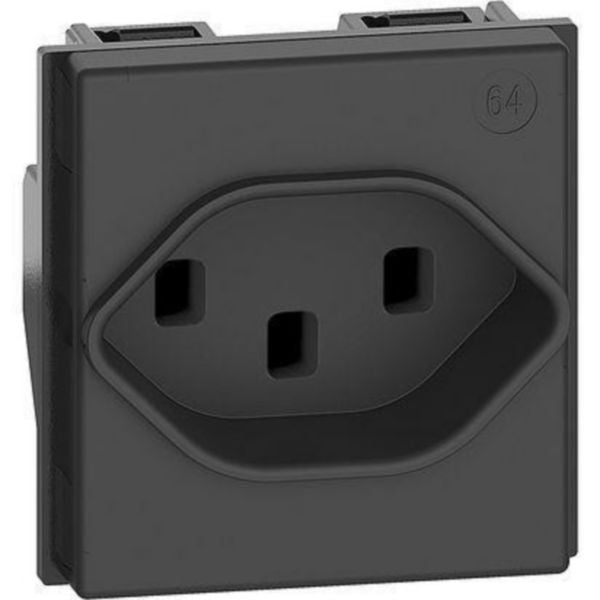

Shop Legrand Living Now CH Socket T13 2P+E 16A Swiss Standard Black | BT-KG4164T23 In Iraq Best Prices
Swiss standard electrical outlet with 2P+E configuration, 16A capacity, enhanced contact protection, and modern Living Now design for safe and reliable power distribution.
The Living Now CH Socket T13 is a premium Swiss standard electrical outlet designed for residential and commercial applications. This 2-module socket features a 2P+E configuration with a 16A rating at 250V, providing reliable power distribution for Swiss standard plugs. The socket is constructed from high-quality thermoplastic material and includes enhanced contact protection to ensure safety by shielding against accidental electrical contact when no plug is inserted. The device features screw and plate terminals for secure wire connections, with a cable capacity range of 1.5-2.5 mm², making it suitable for standard residential wiring installations.
Installation is straightforward thanks to the new generation plastic hooking system that allows for easy installation and removal of the mechanism on the support frame. The socket maintains a sleek, coordinated aesthetic with the Living Now product line and features a mobile surface design that guarantees complete alignment with switches, preventing dust accumulation. The device operates at 50-60 Hz frequency and is rated for IP20 protection with IK04 impact strength. It is suitable for internal use only and must be completed with a KG64 cover for full functionality.
The Living Now socket represents a perfect balance of safety, reliability, and contemporary design. Its halogen-free construction and thermoplastic material ensure environmental compliance, while the enhanced contact protection feature provides peace of mind for households. The snap mounting system enables quick installation in flush-mounted boxes with a minimum depth of 40mm, making it ideal for renovation projects and new installations alike.
Key Features
- Swiss standard 2P+E socket with 16A rating at 250V for reliable power distribution
- Enhanced contact protection shields against accidental electrical contact for improved safety
- New generation plastic hooking system enables easy installation and removal on support frames
- Coordinated Living Now aesthetic with mobile surface design preventing dust accumulation
- Halogen-free thermoplastic construction with environmental compliance and durability
Technical Specifications
| Specification |
Value |
| Product Model | Living Now CH Socket T13, Swiss Standard |
| Socket Type | 2P+E (2 active contacts square, 1 protective contact) |
| Rated Current | 16 A |
| Rated Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Mounting Type | Flush-mounted with snap mounting (engagement) |
| Connection Type | Screw terminals |
| Cable Capacity | 1.5-2.5 mm² |
| Material | Thermoplastic, halogen-free |
| Color | Black (RAL 9003 similar) |
| Dimensions (W x H x D) | 45 x 45 x 40 mm |
| Built-in Depth | 30 mm |
| Minimum Box Depth | 40 mm |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Contact Protection | Enhanced contact protection - Yes |
| Operating Temperature | -5 to +35°C |
| Storage Temperature | -10 to +70°C |
| Reference Number | BT-KG4164T23 |
| EAN Code | 8005543699737 |
| Suitable for Degree of Protection | IP20 |
| Loop Through Function | Yes - 1 loop through |
| Voltage Type | AC (Alternating Current) |
| Surface Finishing | Matt |
Order Legrand Living Now CH Socket T13 2P+E 16A Swiss Standard Black | BT-KG4164T23 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
