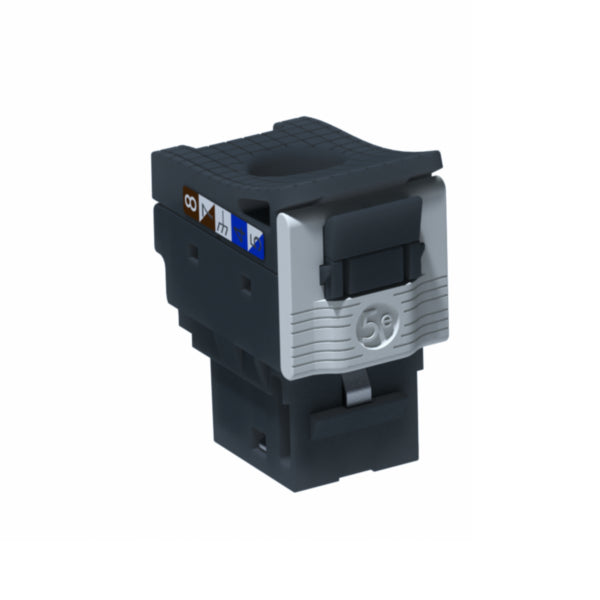

Toolless RJ45 Category 5E UTP keystone connector with one-touch locking, supporting 1 Gbps data transmission, installed in under 1 minute 10 seconds, backed by 25-year warranty
The Linkeo C+ system represents a revolutionary advancement in network connectivity, introducing a toolless keystone connector that enables fast and reliable connections across all categories from 5e to 6A. This innovative connector is engineered for simplicity and speed, allowing installation in under 1 minute 10 seconds without requiring any special tools. The one-touch locking mechanism guarantees superior reliability for data transmission, eliminating any risk of accidental opening while ensuring secure termination.
Designed with ergonomic principles in mind, the Linkeo C+ keystone connector delivers exceptional comfort and reduces installation effort significantly. The connector features a white locking tab and comes as a set of 24 units delivered in 100% recycled cardboard packaging without plastic film. Each connector is ready to use immediately and can be disconnected and re-terminated multiple times without tools or damage, making maintenance and upgrades effortless.
Conforming to international standards including ISO/IEC 11801 series, ANSI/TIA 568 series, and EN 50173 series, this Category 5E UTP connector supports data rates up to 1 GigaBit/s, allowing users to download a 1 Gigabyte file in just 8 seconds. With its 25-year warranty and proven reliability, the Linkeo C+ represents the ideal solution for professional network installations and maintenance applications.
Key Features
- Toolless keystone connector enabling fast connection without special tools
- One-touch locking mechanism guarantees superior reliability and prevents accidental opening
- Category 5E UTP supporting data rates up to 1 GigaBit/s for high-speed connectivity
- Installation completed in under 1 minute 10 seconds with ergonomic design
- Reusable connector that can be disconnected and re-terminated multiple times without damage
- 25-year warranty providing long-term reliability and peace of mind
- Compatible with round cable, litz wire conductor, and solid conductors
- Set of 24 connectors delivered in 100% recycled cardboard packaging
- Conforms to international standards ISO/IEC 11801, ANSI/TIA 568, and EN 50173
- White locking tab with terminal marking indication for easy identification
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Keystone Connector |
| Category | Category 5E UTP |
| Connector Type | RJ45 8(8) - 8 Position 8 Conductor |
| Data Rate | Up to 1 GigaBit/s |
| Connection Type | Insulation Displacement Connector (IDC) |
| Installation Tool Required | No - Toolless Design |
| Installation Time | Under 1 minute 10 seconds |
| Cable Compatibility | Round cable, litz wire conductor, solid conductors |
| Color | Grey |
| Locking Tab Color | White |
| Screened | No |
| Dimensions (Width) | 18 mm |
| Dimensions (Height) | 31 mm |
| Dimensions (Depth) | 34 mm |
| Impact Strength Rating | IK04 |
| Protection Degree | IP20 |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -10°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Terminal Marking Indication | Yes |
| RAL Number | 7016 |
| Packaging | Set of 24 connectors in 100% recycled cardboard |
| Warranty | 25 years |
| Standards Compliance | ISO/IEC 11801, ANSI/TIA 568, EN 50173 |
| SKU | 632936 |
| EAN | 3414973078732 |
