Shop Legrand Legrand USB Charger Type C 1.5A 7.5W White Socket | 764593 In Iraq Best Prices
Modern white USB Type-C charger with 1.5A output and 7.5W power, featuring flush-mounted installation, halogen-free construction, and compliance with international safety standards for convenient device charging.

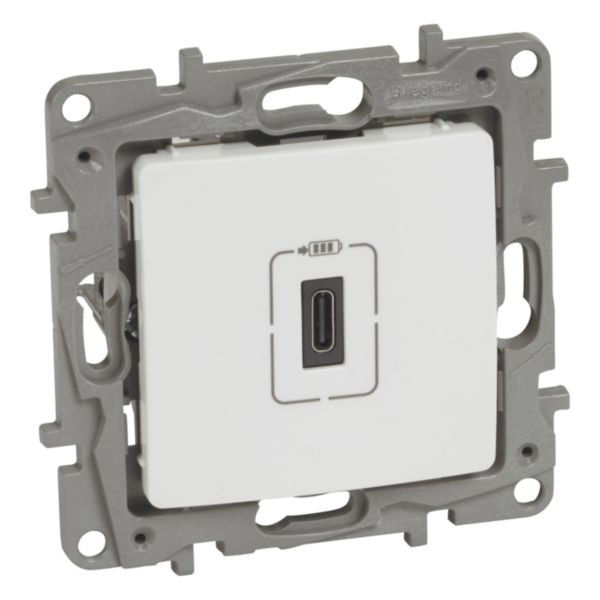

The Legrand USB Charger Type C 1.5A 7.5W is a modern flush-mounted wiring device designed for contemporary residential and commercial applications. This white socket provides convenient USB Type-C charging capabilities with a maximum output current of 1500mA and power output of 7.5W, making it ideal for charging smartphones, tablets, and other USB-C compatible devices. The device features a compact 2-module design with dimensions of 75.8mm width and height, and 41.2mm depth, ensuring seamless integration into standard electrical installations.
Built to the highest safety and quality standards, this USB charger operates on standard AC voltage (100-240V, 50-60Hz) and includes advanced safety features such as halogen-free construction and compliance with international electrical standards including RoHS and REACH directives. The device is housed in a durable white finish (RAL 9003) and features a degree of impact strength rating of IK04, providing reliable protection against accidental damage. Installation is straightforward with screwed terminal connections accommodating flexible or rigid cables with a cross-section of 1.5-2.5mm².
This product is engineered for professional installation in flush-mounted boxes with a minimum depth of 40mm and a built-in depth of 30.9mm. The operating temperature range of 5-40°C ensures reliable performance in diverse environmental conditions, while the storage temperature range of -20-70°C demonstrates its durability during transportation and storage. The Legrand USB Charger Type C is an excellent choice for modern homes and offices requiring convenient USB charging solutions integrated seamlessly into wall-mounted electrical systems.
Key Features
- USB Type-C charging port with 1.5A maximum output current
- 7.5W power output for fast and reliable device charging
- Flush-mounted installation with 2-module compact design
- Halogen-free construction meeting RoHS and REACH compliance standards
- Operating voltage range 100-240V AC with 50-60Hz frequency compatibility
- IK04 impact strength rating for durability and protection
- Wide operating temperature range 5-40°C for reliable performance
- Screwed terminal connections supporting 1.5-2.5mm² cable cross-section
- Durable white finish (RAL 9003) with professional aesthetic
- Suitable for IP40 degree of protection installations
Technical Specifications
| Specification |
Value |
| Product Name | USB Charger Type C 1.5A 7.5W White |
| Manufacturer | Legrand |
| Reference Number | 764593 |
| EAN Code | 3414971479340 |
| Number of Modules | 2 module system |
| USB Port Type | USB Type-C (1 port) |
| Maximum Output Current | 1500 mA (1.5A) |
| Output Power | 7.5W |
| Output Voltage | 5V DC |
| Input Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.055W |
| Supply Current | 0.25A |
| Connection Type | Screwed terminal |
| Mounting Method | Flush-mounted |
| Colour | White |
| RAL Number | RAL 9003 |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 41.2 mm |
| Built-in Depth | 30.9 mm |
| Minimum Installation Box Depth | 40 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery | No |
| Wireless Capability | No |
| Antimicrobial Treatment | No |
| Halogen Free | Yes |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Cable Section | 1.5-2.5 mm² |
| Terminal Marking Indication | Yes |
| Mandatory Neutral | Yes |
| Stress Test Conformity (1000V) | No |
| Compliance Standards | RoHS Directive, REACH Declaration |
