Professional-grade 4-pole thermal-magnetic circuit breaker with 2A rating, 10000A breaking capacity, and C-curve protection for residential and commercial electrical installations. IP20 fingerproof safety with energy limitation class 3.

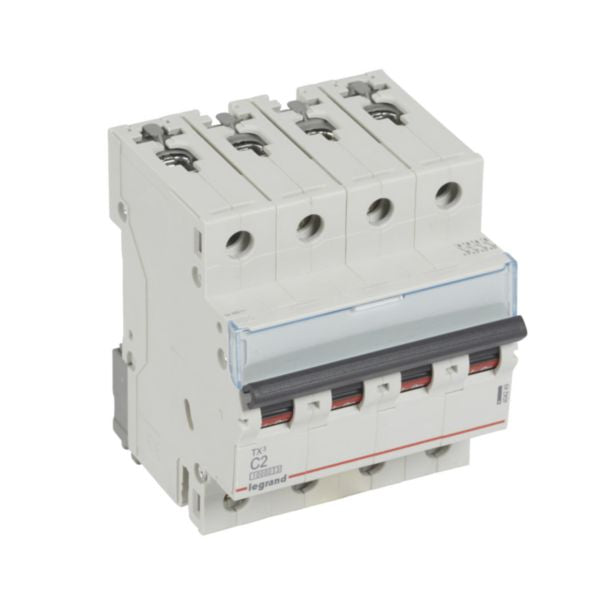

The Legrand TX3 MCB 404249 is a thermal-magnetic circuit breaker designed to protect wiring installations against overloads and short circuits. This 4-pole device features a 2A rated current with a C-curve release characteristic and an impressive 10000A breaking capacity at 400V AC. The breaker provides IP20 "fingerproof" safety protection, ensuring protection against solid bodies larger than 12.5mm, making it ideal for residential and small commercial panel applications.
This circuit breaker complies with IEC 60898-1 standard for household installations and offers maximum energy limitation with class 3 current limiting capability. The device can be supplied by copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), providing flexible installation options. With a built-in depth of 44mm and occupying 4 modular spaces, it fits seamlessly into standard DIN rail installations. The TX3 breaker is equipped with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar is still in place.
The product features convenient on/off indication printed on the handle with red and green backgrounds for easy status identification, and includes a label holder for clear circuit identification. It operates at rated voltage of 400V with insulation voltage of 500V and impulse withstand voltage of 4kV. The device is halogen-free, environmentally conscious, and can be equipped with Legrand DX3 auxiliaries and accessories. All Legrand products must be installed by qualified electricians in compliance with local installation rules.
Key Features
- Breaking capacity of 10000A at 400V AC according to IEC 60898-1 standard
- 4-pole configuration with 2A rated current and C-curve release characteristic
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum short-circuit protection
- Flexible supply options: copper cable, prong busbar, or fork busbar connection
- Special DIN rail clamp for independent removal
- Label holder for clear circuit identification
- On/OFF indication with red and green background markings
- Compatible with Legrand DX3 auxiliaries and accessories
- Halogen-free and environmentally conscious design
Technical Specifications
| Specification |
Value |
| Product Type | Thermal-Magnetic Circuit Breaker (MCB) |
| Number of Poles | 4 poles |
| Rated Current | 2 A |
| Release Characteristic | C-curve (5-10 In tripping threshold) |
| Breaking Capacity at 400V | 10000 A (10 kA) |
| Breaking Capacity at 230V | 16000 A (16 kA) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 (Fingerproof) |
| Impact Strength Rating | IK02 |
| Built-in Depth | 44 mm |
| Width | 70.8 mm |
| Height | 88 mm |
| Total Depth | 77.8 mm |
| Modular Width | 4 modular spaces |
| Color | Grey (RAL 7035) |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom |
| Mounting Method | DIN rail |
| Pollution Degree | 2 |
| Storage Temperature Range | -40 to 70 °C |
| Nominal Voltage Range | 240-415 V |
| Halogen Free | Yes |
| Flush-Mounted Installation | Yes |
| Concurrently Switching Neutral | Yes |
| Additional Equipment Possible | Yes |
| Reference Number | 404249 |
| EAN Code | 3414970394774 |
| Manufacturer | Legrand |
| Product Series | TX3 |
