Legrand TX3 4-pole 25A C curve thermal magnetic circuit breaker with 6000A breaking capacity at 400V. Provides reliable protection against overloads and short-circuits in three-phase installations with IP20 fingerproof protection and energy limitation class 3.

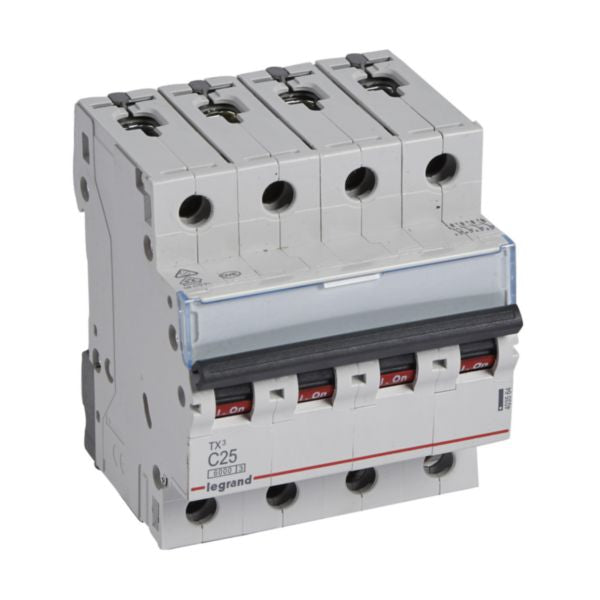

The Legrand TX3 MCB 4P 25A C curve circuit breaker is a thermal magnetic protective device designed for residential and small commercial electrical installations. With a 6000A breaking capacity at 400V, this four-pole modular circuit breaker provides reliable protection against overloads and short-circuits in three-phase electrical systems. The C curve characteristic ensures a tripping threshold between 125A and 250A (5-10 times the rated current), making it ideal for circuits with moderate inrush currents. This device features a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar is still in place, ensuring safe and convenient maintenance.
The TX3 circuit breaker is built to IEC 60898-1 standards for household installations and offers IP20 protection against solid bodies larger than 12.5mm (fingerproof). It features energy limitation class 3 according to IEC 60898-1, providing maximum protection and minimal let-through energy during fault conditions. The device accepts multiple supply methods including copper cables, prong busbars (top or bottom side), or fork busbars (bottom side), offering flexible installation options. The on/off indication is clearly marked on the handle with red and green backgrounds for easy status identification, and a label holder is provided for circuit identification.
This product complies with RoHS and REACH regulations and has been designed with environmental consciousness in mind. It can be equipped with Legrand DX3 auxiliaries and accessories for enhanced functionality, and can be connected to aluminum cables using Legrand DX3 terminal accessory. The TX3 MCB is a halogen-free, environmentally friendly solution that meets all safety requirements for modern electrical installations.
Key Features
- 6000A breaking capacity at 400V according to IEC 60898-1 standard for household installations
- C curve characteristic with tripping threshold between 125A and 250A (5-10 times rated current)
- Four-pole design for three-phase electrical system protection
- Energy limitation class 3 providing maximum protection and minimal let-through energy
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Flexible supply options: copper cable, prong busbar, or fork busbar connections
- Special DIN rail clamp allowing independent removal with busbar in place
- On/off indication with red and green background markings for easy status identification
- Compatible with Legrand DX3 auxiliaries and accessories
- Halogen-free and environmentally conscious design compliant with RoHS and REACH
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker |
| Brand | Legrand |
| Model | TX3 |
| Reference Number | 403564 |
| EAN | 3414970389916 |
| Number of Poles | 4 (Four-pole) |
| Rated Current | 25 A |
| Release Characteristic | C Curve |
| Rated Voltage | 400 V |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 10 kA |
| Breaking Capacity at 400V | 6 kA |
| Voltage Type | AC |
| Frequency | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 |
| Impact Strength | IK02 |
| Width in Modular Spacings | 4 modules |
| Width | 70.8 mm |
| Height | 88 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Color | Grey |
| RAL Number | 7035 |
| Mounting Method | DIN Rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Electric Supply Direction | Top or bottom |
| Nominal Voltage Range | 240-415 V |
| Concurrently Switching Neutral Conductor | Yes |
| Pollution Degree | 2 |
| Additional Equipment Possible | Yes |
| Flush-mounted Installation | Yes |
| Explosion-proof | No |
| Halogen Free | Yes |
| Storage Temperature Range | -40 to +70 °C |
| Label Space Available | Yes |
| Standards Compliance | IEC 60898-1, IEC/EN 60529 |
| Regulatory Compliance | RoHS, REACH |
