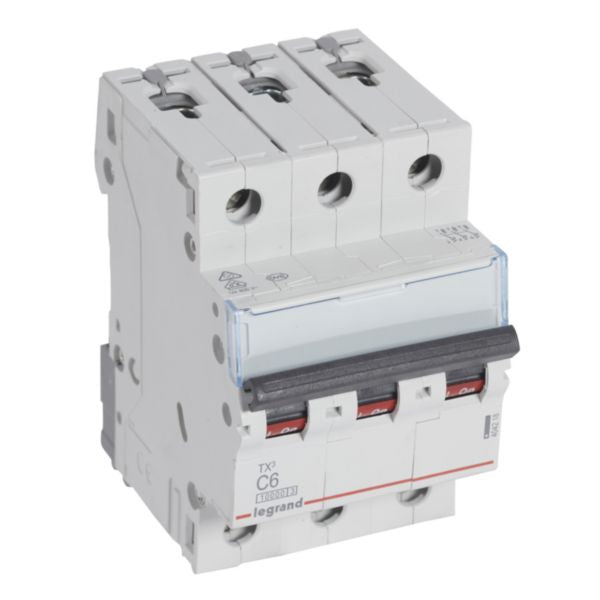

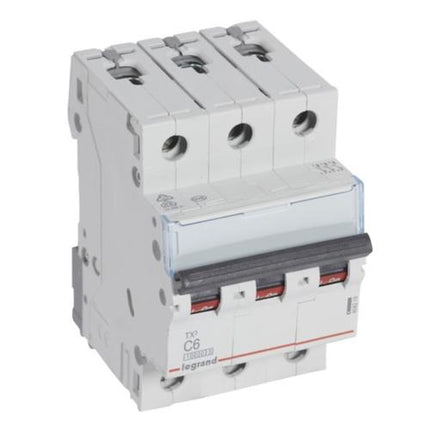

Shop Legrand TX3 MCB 3P 6A 10kA Circuit Breaker C Curve | 404218 In Iraq Best Prices
Legrand TX3 3-pole 6A thermal magnetic MCB with 10kA breaking capacity, C curve tripping, DIN rail mounting, IP20 protection, and full compliance with IEC 60898-1 standard for reliable circuit protection.
The Legrand TX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a breaking capacity of 10kA at 400V and C curve tripping characteristics, this 3-pole device provides reliable protection for residential and small commercial applications. The MCB features a rated current of 6A and operates at 400V nominal voltage with a rated impulse withstand voltage of 4kV. It is mounted on DIN rail and complies with IEC 60898-1 standard for household installations.
This circuit breaker offers comprehensive protection with a tripping threshold for short-circuits between 30A and 60A (C curve between 5In and 10In), ensuring optimal safety. The device is IP20 rated, providing protection against solid bodies larger than 12.5mm and classified as fingerproof. It features current limiting class 3 according to IEC 60898-1 standard, maximizing the limitation of let-through energy. The MCB can be supplied by copper cable, prong busbar, or fork busbar, and is compatible with Legrand DX3 auxiliaries and accessories.
The TX3 MCB is designed with user convenience in mind, featuring a special DIN rail clamp on the bottom side for independent removal even when the fork busbar is in place. It includes a label holder for clear circuit identification and on/off indication printed on the handle with red and green backgrounds for easy status identification. The device is halogen-free, environmentally conscious, and complies with substance-restriction requirements, making it an ideal choice for modern electrical installations.
Key Features
- 10kA breaking capacity at 400V with C curve tripping characteristics (30A-60A threshold)
- 3-pole configuration with 6A rated current and 400V nominal voltage
- IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
- Current limiting class 3 for maximum let-through energy limitation
- DIN rail mounting with special bottom-side clamp for independent removal
- Compatible with Legrand DX3 auxiliaries and accessories
- Label holder and on/off status indication with red/green backgrounds
- Halogen-free and environmentally conscious design
- Complies with IEC 60898-1 standard for household installations
- Multiple supply options: copper cable, prong busbar, or fork busbar
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) - Thermal Magnetic |
| Manufacturer | Legrand |
| Model Series | TX3 |
| Reference Number | 404218 |
| EAN Code | 3414970394316 |
| Number of Poles | 3 poles (3P) |
| Protected Poles | 3 |
| Rated Current | 6 Amperes (A) |
| Rated Voltage | 400 Volts (V) |
| Nominal Voltage Range | 240-415 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Breaking Capacity at 230V | 16 kA (Icn according to EN 60898) |
| Breaking Capacity at 400V | 10 kA (Icn according to EN 60898) |
| Tripping Characteristic | C Curve |
| Short-Circuit Tripping Threshold | Between 30A and 60A (5In to 10In) |
| Current Limiting Class | Class 3 |
| Voltage Type | AC (Alternating Current) |
| Frequency Range | 50-60 Hz |
| Degree of Protection (IP) | IP20 (Fingerproof) |
| Degree of Impact Strength (IK) | IK02 |
| Mounting Method | DIN Rail |
| Built-in Depth | 44 mm |
| Width (Modular Spacing) | 3 modules |
| Width Dimension | 53.1 mm |
| Height | 88 mm |
| Depth | 77.8 mm |
| Colour | Grey |
| RAL Number | 7035 |
| Connection Type | Screwed terminal, Busbar and cable |
| Electric Supply Direction | By the top or bottom |
| Neutral Conductor Switching | No (Not switching neutral) |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to +70°C |
| Flush-Mounted Installation | Yes |
| Additional Equipment Possible | Yes |
| Halogen Free | Yes |
| Label Space/Information Surface | Yes |
| Explosion-Proof | No |
| Terminal Marking Indication | No |
| Standard Compliance | IEC 60898-1, IEC/EN 60529 |
| Compatible Accessories | Legrand DX3 auxiliaries and accessories |
