Thermal magnetic 3P 10A circuit breaker with 10kA breaking capacity, B-curve protection, DIN rail mounting, and IP20 rating for reliable electrical installation protection.

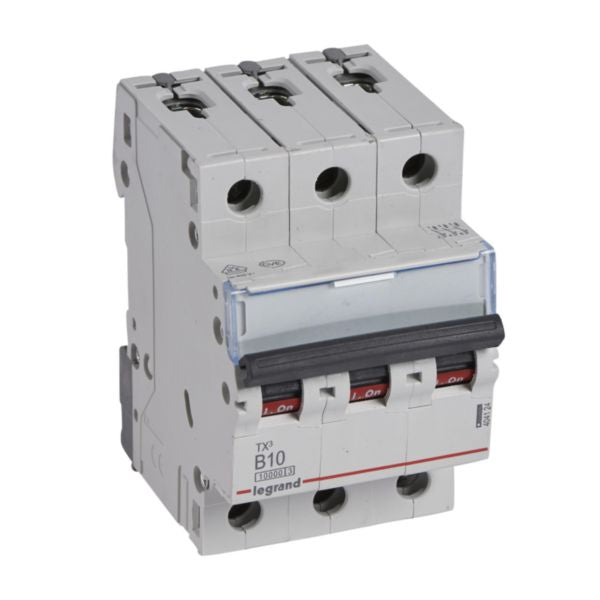

The Legrand MCB TX3 10000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a 10kA breaking capacity at 400V~, this 3-pole 10A B-curve device offers reliable protection for residential and small commercial applications. The circuit breaker features DIN rail mounting for easy installation and removal, making it ideal for controlling and isolating circuits in electrical distribution panels. Its advanced design includes energy limitation class 3 according to IEC 60898-1 standards, ensuring maximum protection against electrical faults.
This MCB is built with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar supplying the row remains in place. The device is IP20 rated, protected against solid bodies larger than 12.5mm (fingerproof), and complies with all relevant safety standards. It can be supplied by copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), providing flexible installation options. The product includes a label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status identification.
The TX3 circuit breaker is fully compatible with Legrand DX3 auxiliaries and accessories, and can be connected to aluminium cables using Legrand DX3 terminal accessory. This environmentally conscious product meets substance-restriction requirements and is halogen-free, making it suitable for modern sustainable electrical installations. With its robust construction, reliable performance, and comprehensive protection features, this circuit breaker is an essential component for any electrical distribution system.
Key Features
- 10kA breaking capacity at 400V according to IEC 60898-1 standard for household installations
- 3-pole, 10A rated current with B-curve tripping characteristic (30A-50A short-circuit threshold)
- Energy limitation class 3 providing maximum let-through energy reduction
- IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
- DIN rail mounting with special clamp allowing independent removal without disturbing busbar
- Compatible with Legrand DX3 auxiliaries, accessories, and terminal solutions
- Label holder for clear circuit identification with ON/OFF indication on handle
- Flexible supply options: copper cable, prong busbar, or fork busbar connections
- Halogen-free and environmentally conscious design meeting substance-restriction requirements
- Operates across 50-60Hz frequency range with 240-415V nominal voltage compatibility
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Brand | Legrand |
| Model | TX3 |
| Reference Number | 404124 |
| EAN Code | 3414970392657 |
| Number of Poles | 3 poles (3P) |
| Rated Current | 10 Amperes |
| Release Characteristic | B curve |
| Short-Circuit Breaking Capacity at 230V | 16 kA |
| Short-Circuit Breaking Capacity at 400V | 10 kA |
| Rated Voltage | 400V AC |
| Nominal Voltage Range | 240-415V |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK02 |
| Mounting Method | DIN Rail |
| Width | 53.1 mm (3 modular units) |
| Height | 88 mm |
| Depth | 77.8 mm (built-in depth 44 mm) |
| Colour | Grey (RAL 7035) |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | By top or bottom |
| Neutral Conductor Switching | No |
| Flush-Mounted Installation | Yes |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to +70°C |
| Additional Equipment Possible | Yes - Compatible with Legrand DX3 auxiliaries |
| Halogen Free | Yes |
| Explosion-Proof | No |
| Standards Compliance | IEC 60898-1, IEC/EN 60529 |
| Label Space | Yes - with information surface |
| Environmental Compliance | RoHS compliant, REACH declaration included |
